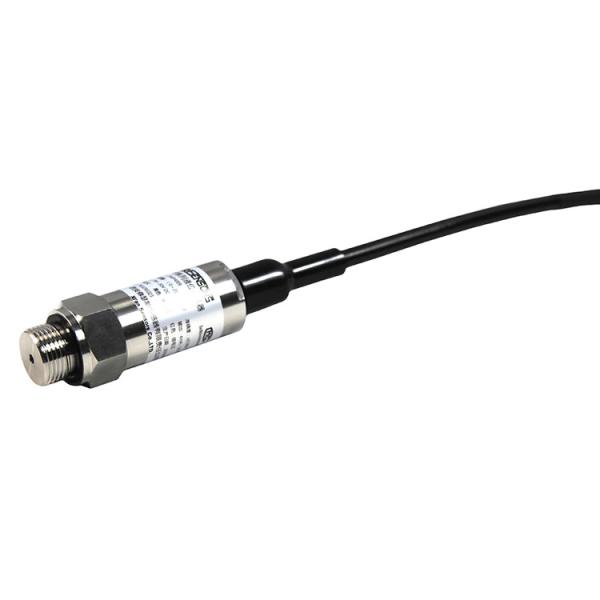

Professional Piezo Resistive Sensor Assembly Type Pressure Sensor
Professional Piezo Resistive Sensor Assembly Type Pressure Sensor
Specifications
Place of Origin :
China
Model Number :
SMP3002
Packaging Details :
Standard Export Packing by Plastics and Cartons.
MOQ :
3 - 49 Pieces
Price :
$18.00
Brand Name :
Sensors
Certification :
CE ISO9000
Description

Overview

SMP3002 Piezo-resistive pressure sensor is a sensor encapsulating the isolation film sensor core in the stainless steel shell, with SS 316L diaphragm and stainless steel shell and interface. This sensor has good media compatibility, reliable and stable performance, with M20 * 1.5 external thread. The back-end interface is M27 * 2 external thread, which is convenient for customers to directly install and use.

The product is suitable for a variety of gas, liquid medium pressure measurement. It can be widely used in petroleum, chemical, marine, hydraulic systems and other industries process control and measurement.

Feature

nRange: -100kPa...0~20kPa...70MPa

nStandard thread pressure measurement

nHigh precision, high stability

Application

nPetroleum, chemical industry

nUrban water supply, heating

nProcess control system

nHydraulic industry

Outline structure:(Unit: mm)

Professional Piezo Resistive Sensor Assembly Type Pressure Sensor

Specification:

Construction condition

Diaphragm material

SS 316L

Housing material

Stainless steel

Seal ring

Nitrile rubber

Electrical Condition

Power supply

≤2.0mADC

Impedance input

2.5kΩ~5kΩ

Impedance output

2.5kΩ~5kΩ

Response

(10%~90%)~<1ms

Insulation resistance

100MΩ,100V DC

Overpressure

2times FS, ( 0C/0B/0A/02 5times FS)

Environmental Condition

Media applicability

Fluid which has no corrosion on stainless steel and nitrile rubber

Shock

No change at 10gRMS,(20~2000)Hz

Impact

100g,11ms

Position effects

Deviate 90° from any direction, zero change≤±0.05%FS

Basic Condition

Environment temperature

(25±1)℃

Humidity

(50%±10%)RH

Atmospheric pressure

(86~106) kPa

Power supply

(1.5±0.0015)mA DC

All tests are in accordance with relevant national standards, including GB / T2423-2008, GB / T8170-2008, GJB150.17A-2009, etc., and also comply with the Company's "Pressure Sensor Enterprise Standards" provisions of the relevant content.

Company Information:

Xi’an Sensors Co., Ltd is a high-tech enterprise absorbed in providing customers with all kinds of pressure detection solution, design and produce pressure sensor. Our series of sensors have a wide range of applications including detection and automatic process control in transportation, energy, chemicals, shipbuilding, aviation, mechanical engineering, hydrology, medical and household appliances.
