Piezoresistive Transducer Silicon Pressure Sensor Industrial Process Control
Piezoresistive Transducer Silicon Pressure Sensor Industrial Process Control
Piezoresistive Transducer Silicon Pressure Sensor Industrial Process Control
Piezoresistive Transducer Silicon Pressure Sensor Industrial Process Control
Specifications
Brand Name :
Sensors
Model Number :
SMP2900
Certification :
CE certificate
Place of Origin :
China
MOQ :
1 unit
Price :
USD25-50 per unit
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500000
Packaging Details :
Inner packing by plastics box and outer packing by carton.
Range :
0....20KPa.....3.5MPa
Output :
4-20mA or 1-5V
Accuracy :
0.5% or 0.25%
Overpressure :
1.5 time full scale
Description

SMP2900 OEM Piezoresistive differential pressure sensor core

SMP2900 Piezo-resistive differential pressure sensor core use stainless steel material, there are also stainless steel corrugated diaphragm on both high and low pressure side to protect sensitive chip. The product’s shape and structure are the same with the similar products overseas, with good interchangeability, can be reliably applied to a variety of differential pressure measurements of the occasion.

Features

Range: 0kPa~35kPa…3.5MPa

SS 316L material

Import MEMS pressure sensitive chip

General appearance and structure and assembly dimensions

Static Pressure can be up to 20MPa

Application

Industrial process control

Gas, liquid pressure measurement

Differential pressure measurement

Venturi and Vortex Flowmeters

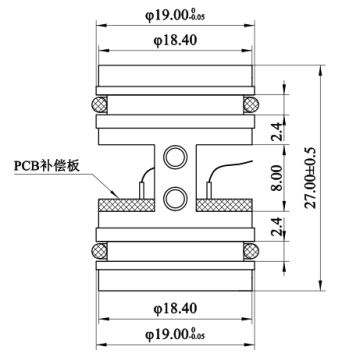

Outline structure:(Unit: mm)

Piezoresistive Transducer Silicon Pressure Sensor Industrial Process Control

Specification

Construction condition
Diaphragm material SS 316L
Housing material SS 316L
Pin Wire Gold-plated karaf /100mm silicone rubber wire
Seal ring Nitrile rubber
Electrical Condition
Power supply ≤2.0mADC
Impedance input 3kΩ～8kΩ
Impedance output 3.5kΩ～6kΩ
Response (10%～90%):<1ms
Insulation resistance 100MΩ,100V DC
Maximum static pressure 20MPa
Environmental Condition
Media applicability Fluid which has no corrosion on stainless steel and nitrile rubber
Position effects Deviate 90° from any direction, zero change≤±0.05%FS
Basic Condition
Environment temperature (25+/-1)℃
Humidity (50%±10%)RH
Atmospheric pressure (86～106) kPa
Power supply (1.5+/-0.0015)mA DC
All tests are in accordance with relevant national standards, including GB / T2423-2008, GB / T8170-2008, GJB150.17A-2009, etc., and also comply with the Company's "Pressure Sensor Enterprise Standards" provisions of the relevant content.
Parameter:
Item Min. Typ. Max. Units

Linearity

 ±0.2 ±0.25 %FS,BFSL
Repeatability ±0.05 ±0.075 %FS
Hysteresis ±0.05 ±0.075 %FS
Zero output 45 130 mV DC
FS output 0～50 ℃
Compensated temp. range -40～125 ℃
Working temp. range -55～150 ℃
Storage temp. range ±0.75 ±1.0 %FS, @ 25℃
Zero temp. error ±0.75 ±1.0 %FS,@ 25℃
Full temp. error ±0.2 %FS/year

Note:1. The above performance indicators are tested under the benchmark conditions.

2. The temperature range for temperature drift test is the compensation temperature range.

CE Certificate:

Piezoresistive Transducer Silicon Pressure Sensor Industrial Process Control
