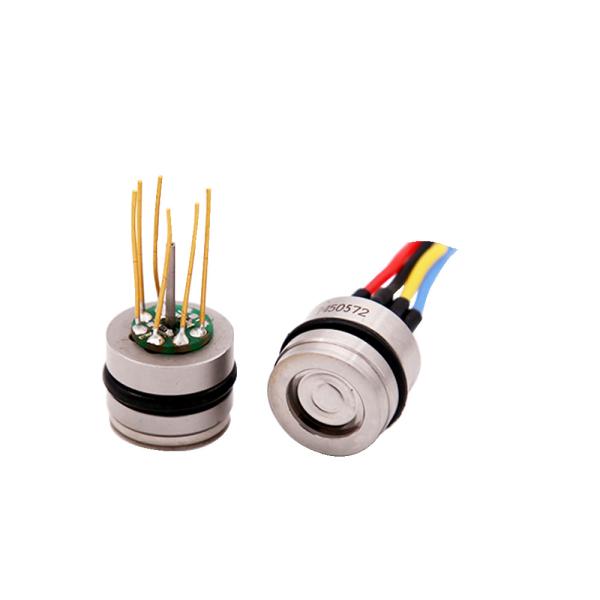

Compact Electronic Water Pressure Sensor Wide Temperature Range Diameter 12.6mm
Compact Electronic Water Pressure Sensor Wide Temperature Range Diameter 12.6mm
Compact Electronic Water Pressure Sensor Wide Temperature Range Diameter 12.6mm
Compact Electronic Water Pressure Sensor Wide Temperature Range Diameter 12.6mm
Specifications
Place of Origin :
Shaanxi, China
Brand Name :
Sensors
Model Number :
SMP2000
Packaging Details :
Standard Exporting packing by Carton
MOQ :
2 - 99 Pieces
Price :
$11.00
Range :
0......350KPa......70MPa
Output :
133+/-33 mV DC
Power supply :
Max 2.0 mA DC
Response time :
Max 1 ms
Description

Product Description

SMP 2000 series is an isolated oil - filled pressure sensor core with high performance, low cost and small size. It uses MEMS Silicon chip. Manufacturing of each sensor is a process with strict aging, screening and testing to ensure the excellent quality and high reliability. This product has high anti-overload capacity and wide temperature range, it is widely used in automobiles, loading machinery, pumps, air conditioning and other occasions where have high requirements on small size and cost-effective.

Features:

n Range:350kPa…70MPa

n Small Size:φ12.6mm, lower package cost

n SS 316L

n Isolated structure, for a variety of fluid medium pressure measurement.

Applications:

n Pressure measurement of automobile engine oil

nEngineering machinery, water pumps, equipment

nIndustrial process control

nUrban water supply system

Outline Construction:(Unit: mm)

Compact Electronic Water Pressure Sensor Wide Temperature Range Diameter 12.6mm Compact Electronic Water Pressure Sensor Wide Temperature Range Diameter 12.6mm

<20MPa ≥20MPa

Specification:

Construction Condition

Diaphragm material

SS 316L

Housing material

SS 316L

Pin Wire

Kovar/100mm silicone rubber wire

Back pressure tube

SS 316L (gauge and negative pressure only)

Seal ring

Nitrile rubber

Electrical Condition

Power supply

≤2.0mA DC

Impedance input

2.5kΩ~5 kΩ

Impedance output

2.5kΩ~5 kΩ

Response

(10%~90%):<1ms

Insulation resistance

100MΩ,100V DC

Overpressure

2 times FS

Environmental Condition

Media applicability

Fluid which has no corrosion on stainless steel and nitrile rubber

Shock

No change at 10gRMS,(20~2000)Hz

Impact

100g,11ms

Position

Deviate 90° from any direction, zero change≤±0.05%FS

Basic Condition

Environment temperature

(25±1)℃

Humidity

(50%±10%)RH

Atmospheric pressure

(86~106) kPa

Power supply

(1.5±0.0015)mA DC

Company Information:

Xi’an Sensors Co., Ltd is a high-tech enterprise absorbed in providing customers with all kinds of pressure detection solution, design and produce pressure sensor. Our series of sensors have a wide range of applications including detection and automatic process control in transportation, energy, chemicals, shipbuilding, aviation, mechanical engineering, hydrology, medical and household appliances.
