Specifications
Place of Origin :
Shaanxi, China
Brand Name :
XI'AN SENSOR
Model Number :
SMP2000
Supply Ability :
30000 Piece/Pieces per Month
Packaging Details :
standard export package for sensor
MOQ :
100 - 499 Pieces
Price :
$20.00
Product name :
Pressure Sensor with small volume and metal isolation diaphragm
Material :
SS 316L
Power supply :
≤2.0mA DC
Overpressure :
2 times FS
Measuring Range :
-100kPa...0kPa~100kPa...70MPa
Accuray :
0.5%
Measuring fluid :
water, oil
Seal ring :
nitrile rubber
Response :
(10%~90%):<1ms
Port :
Xi'an
Description
Product Description

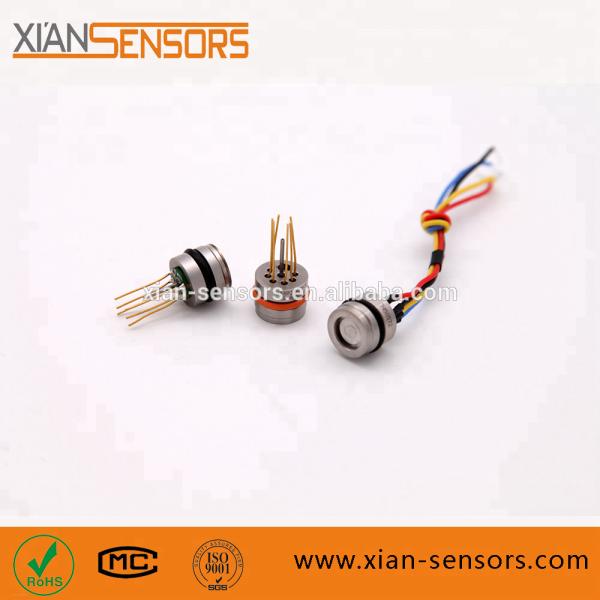

SMP2000 series OEM Pressure Sensor with small volume and metal isolation diaphragm

Introduction

SMP 2000 series is an isolated oil - filled pressure sensor core with high performance, low cost and small volume. It uses MEMS Silicon chip. Manufacturing of each sensor is a process with strict aging, screening and testing to ensure the excellent quality and high reliability.

This product has high anti-overload capacity and wide temperature range, it is widely used in automobiles, loading machinery, pumps, air conditioning and other occasions where have high requirements on small size and cost-effective.

Feature

  • Range:-100kPa…0kPa~100kPa…70MPa
  • Small Volume:φ12.6mm, lower package cost
  • SS 316L
  • Isolated structure, for a variety of fluid medium pressure measurement.

Application

  • Pressure measurement of automobile engine oil
  • Engineering machinery, water pumps, equipment
  • Industrial process control
  • Urban water supply system

Outline Consttuction:(Unit: mm)

Reliable Piezoresistive Waterproof Pressure Sensor  High Anti - Overload Capacity Reliable Piezoresistive Waterproof Pressure Sensor  High Anti - Overload Capacity

<20MPa ≥20MP

Model SMP2000-I Model SMP2000-II

Specification

Construction Condition

Diaphragm material

SS 316L

Housing material

SS 316L

Pin Wire

Kovar/100mm silicone rubber wire

Back pressure tube

SS 316L (gauge and negative pressure only)

Seal ring

nitrile rubber

Electrical Condition

Power supply

≤2.0mA DC

Impedance input

2.5kΩ~5kΩ

Impedance output

2.5kΩ~5kΩ

Response

(10%~90%):<1ms

Insulation resistance

100MΩ,100V DC

Overpressure

2 times FS

Environmental Condition

Media applicability

fluid which has no corrosion on stainless steel and nitrile rubber

Shock

No change at 10gRMS,(20~2000)Hz

Impact

100g,11ms

Position

Deviate 90° from any direction, zero change≤±0.05%FS

Basic Condition

Environment temperature

(25±1)℃

Humidity

(50%±10%)RH

Atmospheric pressure

(86~106) kPa

Power supply

(1.5±0.0015)mA DC

Parameter

Reliable Piezoresistive Waterproof Pressure Sensor  High Anti - Overload Capacity

Electrical connection

Reliable Piezoresistive Waterproof Pressure Sensor  High Anti - Overload Capacity

Range≤7MPa Range>7MPa

Reliable Piezoresistive Waterproof Pressure Sensor  High Anti - Overload Capacity

Pin

Electric connection

Wire color

4

+OUT

Red

10

-OUT

Blue

11

-IN

Yellow

12

+IN

Black

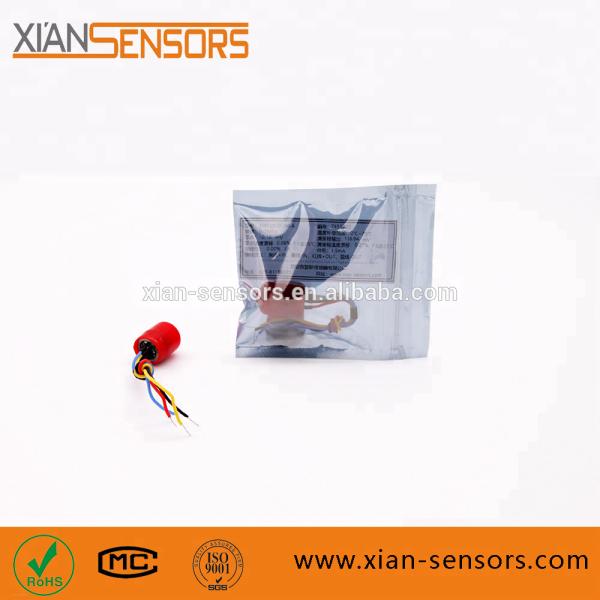

Packaging & Shipping

Company Information

Company Profile of Xi’an Sensors Co., Ltd

Xi’an Sensors Co., Ltd is a high-tech enterprise absorbed in providing customers with all kinds of pressure detection solution, design and produce pressure sensor. Company is located in the development zone of Xi’an city for high-and –new technology industry park, Zhangba sixth Road, production of pressure Sensors. Xi’an Sensors Co., Ltd has twenty three years’ experience in sensor development and production services. We manufacture high-quality products for various industrial customers with the innovative design, sophisticated equipment and high quality services.

Our series of sensors have a wide range of applications including detection and automatic process control in transportation, energy, chemicals, shipbuilding, aviation, mechanical engineering, hydrology, medical and household appliances.

FAQ

Q1: Are you manufacturer or trading company?
A: We are manufacturer, we have R&D team with more than 20 years of experience. We are located in NO 56, ZhangBa Road, High-tech Zone, Xi’an, China. Welcome to visit our company!

Q2: Do you have any certification?
A: Yes, we have RoHS, ISO 2015, we can offer certificates.

Q3: Can we use our logo on the products?
A: Yes. We can provide OEM products for you.

Q4: What is the warranty of your products?
A: Our service is free exchange within three months and one year maintenance guaranteed for non-man-made damages.

Q5: How to place an order?
A: We’d like to know the following information: application, medium, working temperature, testing range, output signal, Process connection, electrical connection, and other related parameters.

Q6: What is your MOQ?
A: We have no MOQ limits, 1 piece for test purpose at first is acceptable.


Q7:Could I get samples?
A: Yes, we have materials in stock to help you to get the samples as soon as we can
