Specifications
Place of Origin :
Shaanxi, China
Brand Name :
XIAN SENSORS
Model Number :
SMP2160
Supply Ability :
30000 Piece/Pieces per Month
Packaging Details :
standard export package for sensor
MOQ :
50 - 499 Pieces
Price :
$18.00
Product name :
Diffused silicon pressure sensor
Material :
SS 316L
Power supply :
≤2.0mA DC
Overpressure :
2 times FS
Measuring Range :
-100kPa...0kPa~20kPa...3.5MPa
Accuray :
0.5%, 0.25%
Seal ring :
nitrile rubber
Response :
<1ms
Port :
Xi'an
Description
Product Description

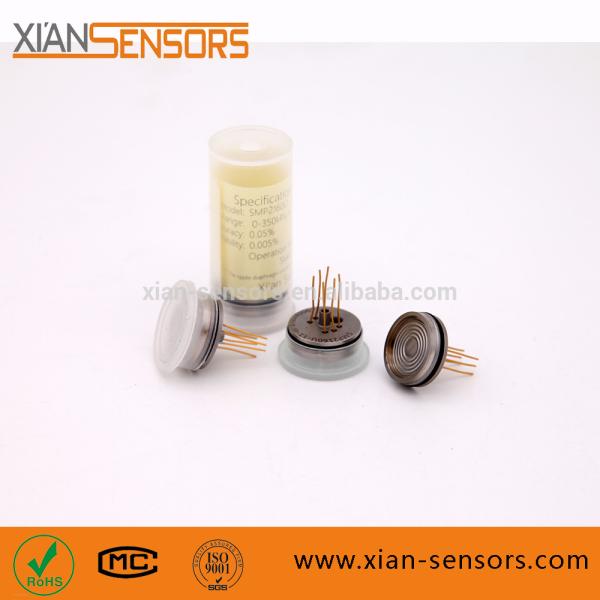

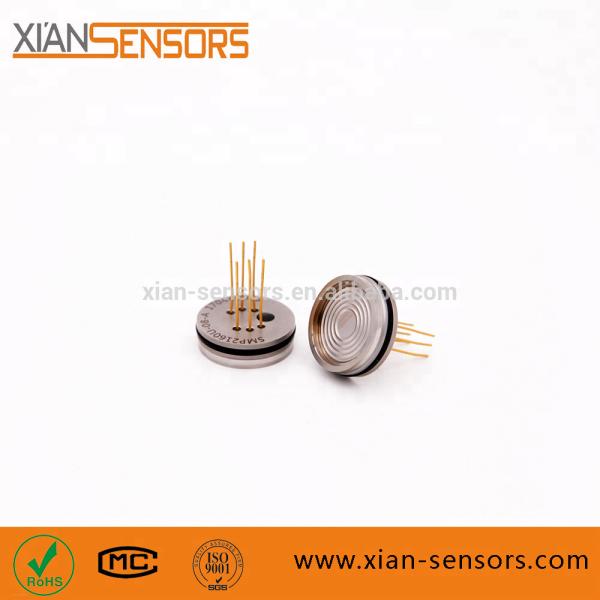

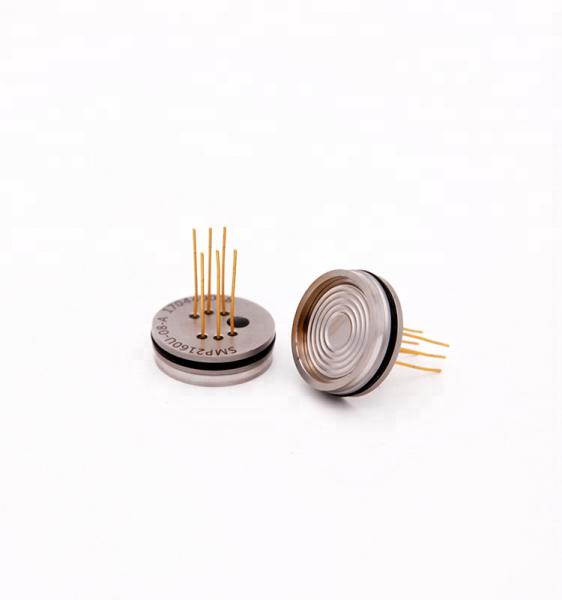

SMP2160 Diffused silicon pressure sensor

SMP2160 series pressure sensor uses high stability diffusion silicon chip, the measured medium pressure can be transferred to silicon chips through the diaphragm and silicone oil transfer to the diffusion of silicon chips, the use of diffusion silicon piezo-resistive effect principle, to achieve the purpose of measuring the size of liquid, gas pressure.

Feature

  • Range: -100kPa…0kPa~20kPa…3.5MPa
  • SS 316L
  • φ19mm×5.55mm
  • high precision, high stability

Application

  • Industrial process control
  • Gas, liquid and vapor pressure detection
  • Level measurement

Outline Consttuction:(Unit: mm)

Oil 200 Bar Hydraulic Pressure Transducer / Water Pressure Detector

Specification

Structural Condition

Diaphragm material

SS 316L

Housing material

SS 316L

Pin Wire

Gold-plated karaf /100mm silicone rubber wire

Back pressure tube

SS 316L (gauge and negative pressure only)

Seal ring

Nitrile rubber

Electrical Condition

Power supply

≤2.0mADC

Impedance input

2.5~5kΩ

Impedance output

2.5kΩ~5kΩ

Response

(10%~90%):<1ms

Insulation resistance

100MΩ,100V DC

Overpressure

2times FS, ( 0C/0B/0A/02 5times FS)

Environmental Condition

Media applicability

Fluid which has no corrosion on stainless steel and nitrile rubber

Shock

No change at 10gRMS,(20~2000)Hz

Impact

100g,11ms

Position effects

Deviate 90° from any direction, zero change≤±0.05%FS

Basic Condition

Environment temperature

(25±1)

Humidity

(50%±10%)RH

Atmospheric pressure

(86~106) KPa

Power supply

(1.5±0.0015)mA DC

All tests are in accordance with relevant national standards, including GB / T2423-2008, GB / T8170-2008, GJB150.17A-2009, etc., and also comply with the Company's "Pressure Sensor Enterprise Standards" provisions of the relevant content.

Electrical connection

Oil 200 Bar Hydraulic Pressure Transducer / Water Pressure Detector

Pin

Electric connection

Wire color

4

+OUT

Red

10

-OUT

Blue

11

-IN

Yellow

12

+IN

Black

Packaging & Shipping

Oil 200 Bar Hydraulic Pressure Transducer / Water Pressure Detector

Company Information

Company Profile of Xi’an Sensors Co., Ltd

Xi’an Sensors Co., Ltd is a high-tech enterprise absorbed in providing customers with all kinds of pressure detection solution, design and produce pressure sensor. Company is located in the development zone of Xi’an city for high-and –new technology industry park, Zhangba sixth Road, production of pressure Sensors. Xi’an Sensors Co., Ltd has twenty three years’ experience in sensor development and production services. We manufacture high-quality products for various industrial customers with the innovative design, sophisticated equipment and high quality services.

Our series of sensors have a wide range of applications including detection and automatic process control in transportation, energy, chemicals, shipbuilding, aviation, mechanical engineering, hydrology, medical and household appliances.

Oil 200 Bar Hydraulic Pressure Transducer / Water Pressure Detector

Oil 200 Bar Hydraulic Pressure Transducer / Water Pressure Detector

Oil 200 Bar Hydraulic Pressure Transducer / Water Pressure Detector

Oil 200 Bar Hydraulic Pressure Transducer / Water Pressure Detector

FAQ

Q1: Are you manufacturer or trading company?
A: We are manufacturer, we have R&D team with more than 20 years of experience. We are located in NO 56, ZhangBa Road, High-tech Zone, Xi’an, China. Welcome to visit our company!

Q2: Do you have any certification?
A: Yes, we have RoHS, ISO 2015, we can offer certificates.

Q3: Can we use our logo on the products?
A: Yes. We can provide OEM products for you.

Q4: What is the warranty of your products?
A: Our service is free exchange within three months and one year maintenance guaranteed for non-man-made damages.

Q5: How to place an order?
A: We’d like to know the following information: application, medium, working temperature, testing range, output signal, Process connection, electrical connection, and other related parameters.

Q6: What is your MOQ?
A: We have no MOQ limits, 1 piece for test purpose at first is acceptable.


Q7:Could I get samples?
A: Yes, we have materials in stock to help you to get the samples as soon as we can
