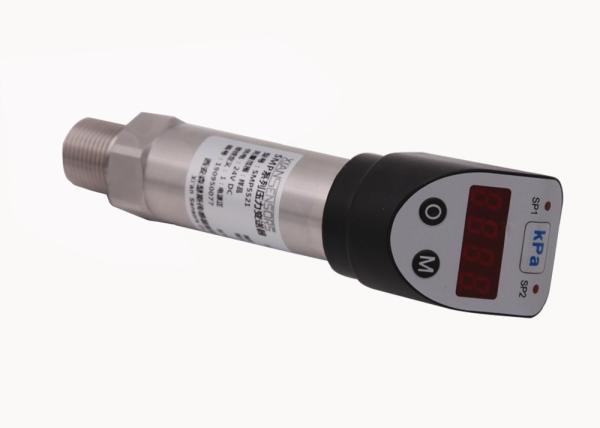

SMP5521 Piezoresistive Pressure Transmitter Intelligent Pressure Switch With Digital Display
SMP5521 Piezoresistive Pressure Transmitter Intelligent Pressure Switch With Digital Display
SMP5521 Piezoresistive Pressure Transmitter Intelligent Pressure Switch With Digital Display
SMP5521 Piezoresistive Pressure Transmitter Intelligent Pressure Switch With Digital Display
SMP5521 Piezoresistive Pressure Transmitter Intelligent Pressure Switch With Digital Display
SMP5521 Piezoresistive Pressure Transmitter Intelligent Pressure Switch With Digital Display
Specifications
MOQ :
1-49 Pieces
Price :
$50.00
Output signal :
4~20mA/0-10V/0-5V/0.5~4.5V/RS485/RS232
Range :
-0.1....0......0.01.....100MPa
Relay :
NO/NC
Transistor :
NPN/PNP
Selling Units :
Single item
Single package size  :
2.7X12X0 cm
Single gross weight :
0.200 kg
Package Type :
Standard Exporting Packing.
Description

The SMP5521 is a high-performance silicon pressure sensor that measures sensor technology, measurement display and switch control technology. The product realizes visual processing of process pressure and switch contact status through analog output, switch output and digital display head.

This product offers multiple output configurations for different applications, with on-site set alarm points and switch delay settings. After rigorous testing and aging screening, the products have stable and reliable performance and high flexibility.

Features:

n Wide range: -0.1..0~0.01...00MPa

n All stainless steel structure, various pressure interfaces

n 4-digit LED digital display

n Various forms of output signals

n Intelligent digital display, page friendly

n High precision, high stability, high reliability

n Reverse polarity protection and transient over-current and overvoltage protection

Applications:

n Industrial process control

n Petrochemical, water conservancy, hydrology, hydropower industry, etc.

n Equipment supporting, ship, mechanical hydraulic system

Outline structure:(Unit: mm)

SMP5521 Piezoresistive Pressure Transmitter Intelligent Pressure Switch With Digital Display

Parameters:

Pressure parameter

Range

-0.1…0~0.01…100MPa

Overload

2times FS or 110Mpa (Take the minimum)

Pressure type

gauge, absolute or sealed gauge

Electrical parameters

Power supply

18V~30V DC

Signal output

4mA~20mADC/0~5VDC/0~10VDC

Relay:NO/NC

Transistor:NPN/PNP

Construction parameter

Housing

SS 304

Sensor

SS 316L

Seal ring

Viton

Electrical connections

M12*1 5 pin connector

Protection Class

IP65(Plug connection)

Ambient parameter

Media suitability

Fluid which has no corrosion to SS 316L and Viton

Compensation temperature

-10℃~+80℃

Operating temperature

-30℃~+80℃

Storage temperature

-40℃~125℃

Performance

Accuracy

±0.1%FS(Min.)

±0.25 FS (Typical)

±0.5%FS(Max.)

TCZ

±0.03%FS/℃ (≤100kPa)

±0.02%FS/℃ (>100kPa)

TCS

±0.03%FS/℃ (≤100kPa)

±0.02%FS/℃ (>100kPa)

Long term stability

±0.3%FS/year(Max.)

Electrical Connection

Pin

Color

Definition

1

Brown

Power: +V

2

White

A1 Alarm

3

Blue

GND

4

Black

A2 Alarm

5

Gray

Signal: +Out

Company Information:

Xi’an Sensors Co., Ltd is a high-tech enterprise absorbed in providing customers with all kinds of pressure detection solution, design and produce pressure sensor. Our series of sensors have a wide range of applications including detection and automatic process control in transportation, energy, chemicals, shipbuilding, aviation, mechanical engineering, hydrology, medical and household appliances.
