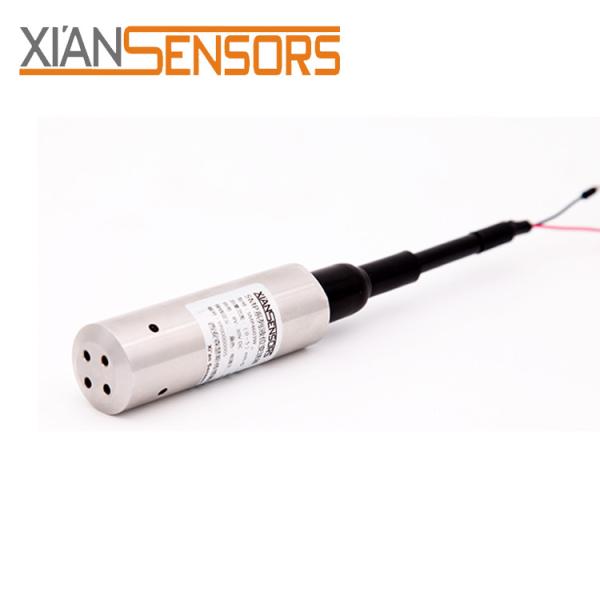

Universal Input Tank Level Transducer For Underwater Monitoring SMP4603 Series
Universal Input Tank Level Transducer For Underwater Monitoring SMP4603 Series
Universal Input Tank Level Transducer For Underwater Monitoring SMP4603 Series
Universal Input Tank Level Transducer For Underwater Monitoring SMP4603 Series
Specifications
Brand Name :
Sensors
Model Number :
SMP4603
Certification :
CE certificate
Place of Origin :
China
MOQ :
1 unit
Price :
USD45-90 per unit
Payment Terms :
T/T, Western Union
Supply Ability :
500000units
Packaging Details :
Packing by Carton
Sensor :
Silicon sensor
Range :
0....1m.....400m water
Accuracy :
0.5% or 0.25%
Output :
4=20mA or 1-5V or RS485
Description

SMP4603 series universal input level transmitter

SMP4603 series of general-purpose input level transmitter uses high-performance diffusion of silicon pressure sensor as a measurement element, it measures the hydrostatic pressure which is proportional to the depth of the liquid and Convert to standard current or voltage by signal processing circuit. The product is suitable for petrochemical, metallurgical, power, pharmaceutical, water supply and drainage systems and other industries of various media level measurement.

Features

SS 316L , IP68

More than 2 times overpressure, when range is less than 5 meter, it can up to 5 times overpressure.

Anti-interference, anti-lightning design

High precision, high stability, high reliability.

Outline construction:(Unit: mm)

Universal Input Tank Level Transducer For Underwater Monitoring SMP4603 Series

Specification

Pressure parameter
Range 0 mH2O～1 mH2O…200 mH2O
Overload 2 times FS,5 times FS when less than 5 mmH2O
Electrical parameter
Output type Current type Voltage Type
Power supply 9~30V DC 12~30V DC
Output Signal 4mA～20mA DC(2 wire) 0/1V~5/10V DC (3 wire)
Load resistance ≤(U-9)/0.02Ω(2 wire) ≥10k (3 wire)
Strucural Parameter
Housing SS
Sensor SS 316L
Sealed-ring Viton
Cable ∅7.5mm Polyethylene special cable
Protection class IP68
Ambient parameter
Media applicability Fluid which has no corrosion to Stainless steel 316L and viton
Compensation temperature 0℃～70℃
Medium Temperature -20℃～75℃
Storage temperature -40℃～125℃
Performance index
Accuracy ±0.25％FS(Standard) ±0.5％FS(Max.)
Zero temperature coefficient ±0.05％FS/℃(≤5 mH2O) ±0.02％FS/℃(＞5 mH2O)
Full temperature coefficient ±0.05％FS/℃(≤5 mH2O) ±0.05％FS/℃(＞5 mH2O)
Long term stability ±0.3%FS/year(Max.)

Electrical connection

Definition of terminal

Universal Input Tank Level Transducer For Underwater Monitoring SMP4603 Series

Order Code

SMP4603 series universal input level transmitter
　 Range Measurement range 0 mH2O～1 mH2O┅200 mH2O
[0-X mH2O] L X:measuring level,L: length of cable. Suggestions: L-X=(1～2)m
Code Signal output
E Output 4mA～20mA DC
F 1V～5V DC
J 0V～10V DC
V 0V～10V DC
　 Code Material of construction
Isolation diaphragm Port Housing
22 SS 316L SS SS
24 SS 316L SS 316L SS 316L
25 HASTELLOY-C SS SS
26 HASTELLOY-C SS 316L SS 316L
27 Ta SS SS
28 Ta SS 316L SS 316L
Code Functions
Y Terminal box
SMP4603 -［0～5mH2O］6 – E – 22 –Y the whole Spec.
