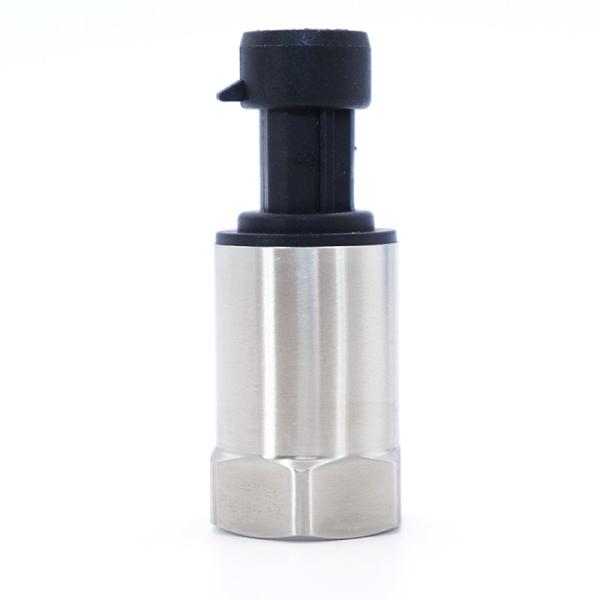

Low cost Ceramic Pressure transmitter 4-20mA 0.5-4.5VDC with packard at USD16.00/pc
Low cost Ceramic Pressure transmitter 4-20mA 0.5-4.5VDC with packard at USD16.00/pc
Specifications
Brand Name :
sensors
Model Number :
SMP4027
Certification :
CE ISO9001
Place of Origin :
China
MOQ :
5 pcs
Price :
USD10-25.00/pc
Supply Ability :
20000pcs per month
Delivery Time :
5-20days
Packaging Details :
Carton packing
Description

Low Cost Pressure Transmitter

Features:

*±0.5, ±1%F.S Accuracy

*High Stability, High Reliability

*Ceramic Sensor from Germany

*Digital Calibration

*Multiple connectors and ports

*Zero point can be shifted frely

*Measure range shifted 50~100%

*CE approved

Application:

*Air compressor

*Water Supply

*Hydraulic Control

*Air Conditioner

*Auto Engine

* Automatic Detect System

*Hydraulic Pressure Station

*Refrigerator

Introduction:

SMP4027 series of pressure transmitter feature high quality, high stability, small size, low weight, compact structure, low cost and mass production. The product are widely used to measure pressure of air compressor, auto engine, air conditioning equipment, etc. Stainless steel are ideal for industrial environment, pressure sensor element are selected from well known international brands,The product is made of stainless steel and the pressure sensor is selected from well-known brands. Special circuits are adopted to adjust zero value and full range freely. The products have been approved with CE, intrinsically safe, and explosion-proof certificates. Non-polar two-wire current output and three-wire voltage output are provided. Products are produced according to military standards of advanced design, perfect technology, scientific management, strict production and quality control and have been sold to over 50 countries.

Low cost Ceramic Pressure transmitter 4-20mA 0.5-4.5VDC with packard at USD16.00/pc

Parameter Value Note
Measure range 2bar……600bar 1bar≈100kPa
Overload Pressure 1.5×RP(rated pressure)
Broken Pressure 3×RP(rated pressure)
Accuracy ±0.25,±0.5,±1%F.S
Stability Typical ±0.5%F.S, Max ±1%F.S
Operate Temperature －40℃~100℃
Compensation Temperature －10℃~80℃
Stock Temperature －50℃~125℃
Media Compatibility Corrosive medium compatible with Cr18Ni9Ti,ceramics
Wire Two Wire Three Wire
Output Signal 4~20mA 0.5~4.5V
Power Supply 12~30Vdc 5Vdc/10~30Vdc/ac dc/ac means dc and ac are all usable
Load Resistance (U-10)/0.02(Ω) ＞100KΩ
Insulation ＞100M Ω@50V
Elec. Connect Packard,DIN 43650C, DIN72585, M12Seial, Cable
Shell Protection IP67
Wire Protection IP67
Elec. Connect G1/4, NPT1/4, 7/16-20UNF
Response Time 10ms
Pressure Form Gauge G , Absolute A
Compliant CE,Intrinsically safe E, Explosion-proof D
EMC EMI:EN50081-1/-2; EMS: EN50082-2
