5.5Kw Automotive Paint Booth Repair Shop Preparation Booth Without Basement
5.5Kw Automotive Paint Booth Repair Shop Preparation Booth Without Basement
Specifications
Brand Name :
SG
Model Number :
PA7300
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
1000 Units per month
Delivery Time :
30 Days
Packaging Details :
Carton+Pollywood
Product Name :
Prep Station
External Dimension :
7.65x4.1x3.15m
Internal Dimension :
6.4x4.0x2.65
Total Power :
6.5 Kw
Working Voltage :
220/380V/50/60Hz/3Ph
Air Circulation :
Simi-Down Draft
Air Capacity :
15000m³/h
Wall Panel :
50mm EPS
Roof Filter :
Italian Technology,Dust Particles Catching Capability＞5μm
Ceiling Light :
24x18W LED Light Tubes
Side Light :
For Option
Curtains :
PVC soft curtain at Front and Both Side
Trench :
2 rows of trench, 4600 ×760mm each, covered with Grilles
Brand :
SG
Description

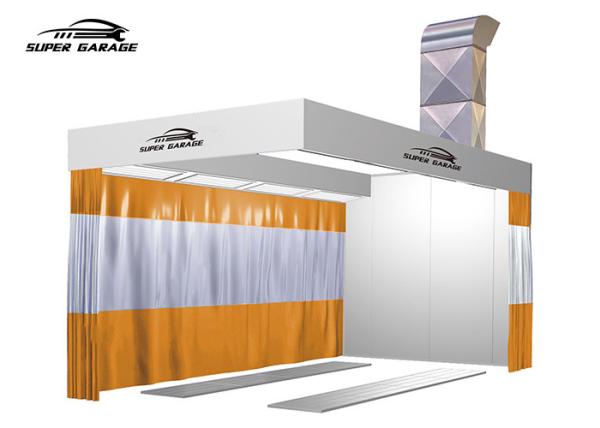

Repair Shop Preparation Booth Polished Room With Curtain SG-PA7200

Technical Data:

MODEL SG-PA7200
External Dimension 7.65x4.1x3.15
Internal Dimension 6.4x4.0x2.65
Total Power(Kw) 6.5
Cabin System Roof Panel Galvanized Steel
Plenum Chamber /
Wall Panel 50mm EPS
Trench 2 rows of trench, 4600 ×760mm each, covered with Grilles
Curtains PVC soft curtain at Front and Both Side
Basement /
Air Circulation System Circulation Way Down Draft
Outlet Ventilator 1x5.5Kw
Air Capacity 15000m3/h
Purification system Roof Filter /
Exhaust Filter Filter Bag, Dust Particles Catching Capability＞5μm
Floor Filter Dust Particles Catching Capability＞15μm
Lighting System Ceiling Light 24x18W LED Light Tubes
Control System 　 Multi-protection Circuit. Working Switch, Light Witch, Emergency Stop, Breakdown Alarm.

5.5Kw Automotive Paint Booth Repair Shop Preparation Booth Without Basement
