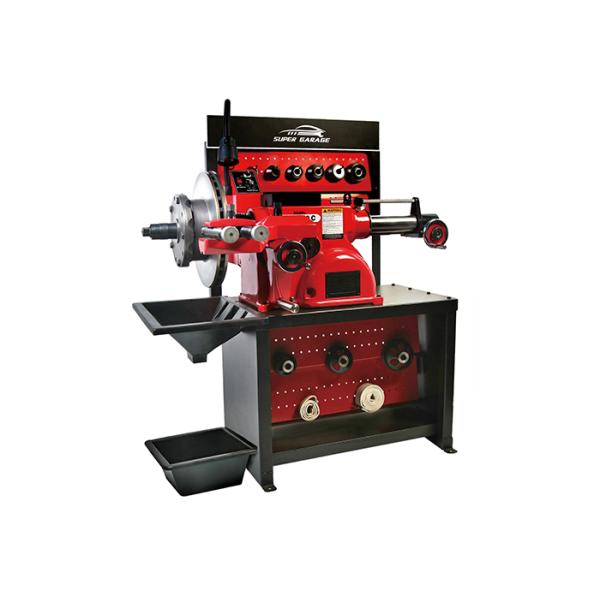

88RPM 118RPM Body And Paint Equipment 251mm Drum Depth Brake Disc Lathe Machine CE Approved
88RPM 118RPM Body And Paint Equipment 251mm Drum Depth Brake Disc Lathe Machine CE Approved
Specifications
Brand Name :
SG
Model Number :
SG-BL870C
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 Unit
Payment Terms :
L/C, T/T
Supply Ability :
800 Units per month
Delivery Time :
30 Days
Packaging Details :
Carton+Pollywood
Product Name :
Brake Lathe
Spindle Travel :
9.875”/251mm
Spindle Speed :
70/88/118RPM
Rotor Diameter :
7''-18''(180-457mm)
Rotor Thickness :
2.85”/73mm
Drum Diameter :
6-17.7”/152-450mm
Drum Depth :
9.875”/251mm
Power Supply :
110V/220V/380V
Description

Auto Brake Lathe Machine Electric Car Brake Drum Brake Drum And Brake Disc Lathe Machine SG-BL870C

Brake Lathe SG-BL870C

Technical Data:

Model SG-BL870C
Spindle Travel 9.875”/251mm
Spindle Speed 70/88/118RPM
Rotor Diameter 7''-18''(180-457mm)
Rotor Thickness 2.85”/73mm
Drum Diameter 6-17.7”/152-450mm
Drum Depth 9.875”/251mm
power supply 110/220V,1PH,50/60HZ, 380V ,3PH, 50/60HZ

Features:

  • DC motors are designed to meet the demanding requirement of industrial motion control.
  • “Change Adapter” system to eliminate the need for conventional bell clamps and cones.
  • The precision twin cutter tools and a quick drum to rotor changeover to help increase your service capability.
  • Infinitely variable spindle and cross feed speed settings for quick rough and precision finish cuts.
  • Positive rake cutter tip angle provides for a one pass finish virtually every time, allowing you to complete your work fast.

88RPM 118RPM Body And Paint Equipment 251mm Drum Depth Brake Disc Lathe Machine CE Approved
