220V 110V Body And Paint Equipment 8.5mm/min Feed Rate Disc Brake Lathe Machine
220V 110V Body And Paint Equipment 8.5mm/min Feed Rate Disc Brake Lathe Machine
Specifications
Brand Name :
SG
Model Number :
SG-BDL9202
Certification :
CE
Place of Origin :
CHINA
MOQ :
5 Units
Payment Terms :
L/C, T/T
Delivery Time :
30 Days
Packaging Details :
Carton+Pollywood
Product Name :
Brake Disc Lathe
Maximum brake disc thickness :
40mm
Vernier knob accuracy :
0.005mm
Feed rate :
8.5mm/min
Power Supply :
110V/220V/380V
Working Height Min/Max :
100/120cm
Type :
Horizontal Universal Lathe
GW :
7.3Kgs
Brand :
SG
Warranty :
1 Year
Description

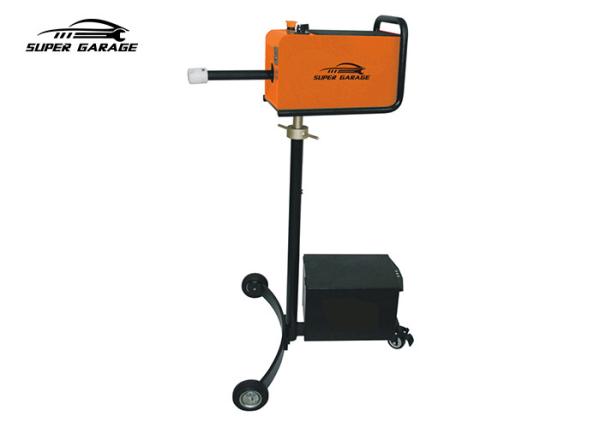

Disc Brake Lathe Machine

Disc Lathe:

  1. Maximum brake disc thickness: 40mm
  2. Adjustment knob accuracy: 0.005mm
  3. Feed rate: 8.5mm/min
  4. Electrical specifications: 220V / 110V
  5. Net weight: 7.3kg

Drive Unit:

  1. Working height min / max: 1 / 1.25m
  2. Drive speed: 98rpm
  3. Electrical specifications: 220V / 110V
  4. Weight: 85kg
  5. Ambient temperature range: -5°C to 35°C
  6. Turning accuracy: ≤ 0.005mm
  7. Brake disc runout: ≤ 0.005mm
  8. Brake disc thickness variation: 0.005 – 0.01mm
  9. Brake disc surface roughness: Ra 1.5 – 2.0um

Features:

  • Upgraded and remodeled from customer-oriented perspectives to enable easier and safer car brake disc resurfacing.
  • Resurfacing articularly improves the performance of the brake disc and shortens the braking distance to guarantee safer operations.
  • Try operating it on various vehicle types.
