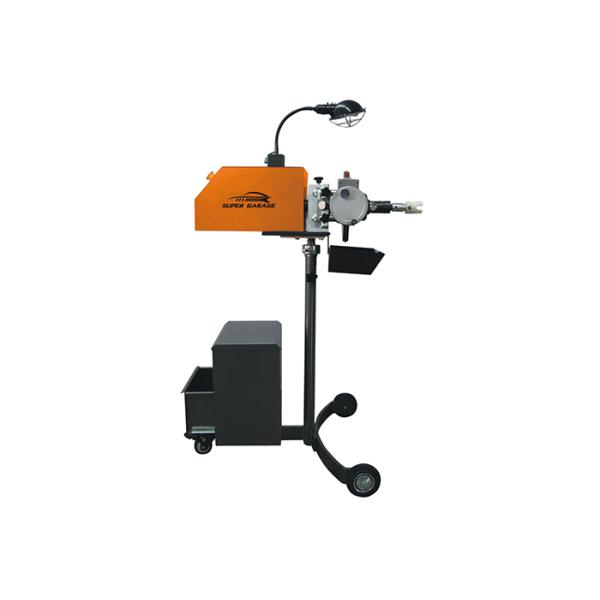

40mm Thickness Car Brake Disc Lathe Auto Brake Lining Equipment
40mm Thickness Car Brake Disc Lathe Auto Brake Lining Equipment
Specifications
Brand Name :
SG
Model Number :
SG-BDL9602
Certification :
CE
Place of Origin :
CHINA
MOQ :
5 Units
Payment Terms :
L/C, T/T
Delivery Time :
30 Days
Packaging Details :
Carton+Pollywood
Product Name :
Brake Disc Lathe
Maximum brake disc thickness :
40mm
Vernier knob accuracy :
≤0.02mm /≤0.01mm
Feed rate :
8.5mm/min
Power Supply :
110V/220V/380V
Working Height Min/Max :
100/120cm
Type :
Horizontal Universal Lathe
Drive Speed :
120rpm
Turning Accuracy :
0.002mm
Brand :
SG
Warranty :
1 Year
Description

Multi-Function Disk Brake Lathe Auto Brake Lining Equipment Car Brake Lathes SG-BDL9602

Disc Lathe SG-BDL9602:

Technical Data:

Model SG-BDL9602
Maximum brake disc thickness 40mm
Vernier knob accuracy ≤0.02mm /≤0.01mm
Feed rate 8.5mm/min
power supply 220/110V 50/60HZ
Working height min/max 100/120cm
Drive speed 120rpm
Turning accuracy 0.002mm
Brake disc runout ≤0.00-0.005mm
Brake disc thickness variation Ra1.0-2.0mm
Brake disc surface roughness 74DBA

Features:

  • Multi-function disk brake-lathe simultaneously equipped with vehicle-mounted type and separated type. You can use separated type brake-lathe for the disk that is easy to detach, while vehicle-mounted type brake-lathe for the disk that is hard to detach.SG-BDL9602 is the economic and highly capable brake-lathe to meet your requirement.
  • The function of resurfacing disks in variable sizes. It has manholes for adjusting intervals, if necessary. User may adjust and mount the diameter of each different brake disks on the vehicle, enables which more effectiveness when resurfacing the separated disks.
