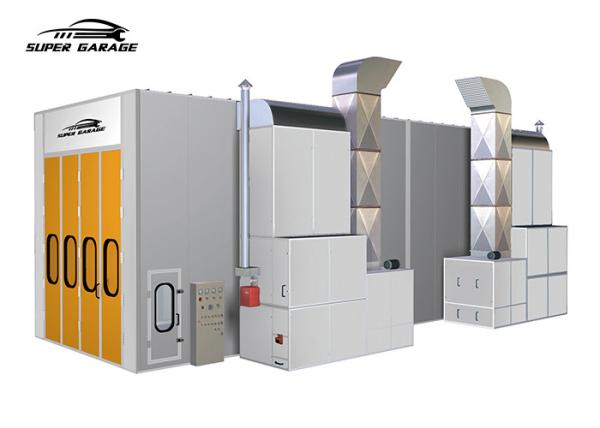

Customized Bus Paint Booth , Big Spray Booth With 2 Sets Of Generators CE Approved
Customized Bus Paint Booth , Big Spray Booth With 2 Sets Of Generators CE Approved
Specifications
Brand Name :
SG
Model Number :
SG-PB7015M
Certification :
CE
Place of Origin :
China
MOQ :
1 Unit
Payment Terms :
T/T
Supply Ability :
1000 Units per month
Delivery Time :
30 Days
Packaging Details :
Carton+Pollywood
Product Name :
Bus Spray Booth
External Dimension :
15.1x6.89x5.6m
Internal Dimension :
15x5x5 m
Car Entrance :
4.0x4.5 m
Working Door :
2.0x0.7,With Pressure Locks
Wall Panel :
75mm thickness, EPS Filler with Steel Reinforcing Rib+0.426mm Color Steel Skin
Total Power :
49 Kw
Working Voltage :
220/380V/50/60Hz/3Ph
Air Circulation :
Down-Draft
Trench :
2 Rows of Galvanized Floor Grating
Intake Ventilator :
4*5.5KW Double-Inlet Centrifugal Fan
Exhaust Ventilator :
2*11KW Centrifugal Fan
Burner :
Riello G20,2 Units
Ceiling Light :
72x18W LED Lamps
Side Light :
28x18W Lamps
Ceiling Filter :
Dust Particles Catching Capability＞4μm
Intake Air Filter :
Dust Particles Catching Capability＞10μm
Outlet Air Filter :
Activated Carbon
Control Box :
Microcomputer Programming,Motor Direct Start,Overload,Overheat,Phase-Lacking Protections,Light Switch, Spray & Baking Switch, Emergency Stop, Breakdown Alarm, Main Components use Brand Siemens or Schneidar
Floor Filter :
Italian Import Fiber Glass,TSP value＜1.4mg/m3
Color :
Orange+White
Description

Custom Bus Paint Booth Side Exhaust Big Spray Booth With Heating System

Technical Data:

MODEL SG-PB7015M(For Bus)
External Dimension LxWxH(m) 15.1x6.89x5.6
Internal Dimension LxWxH(m) 15x5x5
Car Entrance WxH(m) 4.0x4.5
Service Door WxH(m) 2.0x0.7,With Pressure Locks
Total Power(KW) 49
Working Voltage 220/380V/50/60Hz/3Ph
Chamber System Wall Panel Sandwich Style, 75mm thickness, EPS Filler with Steel Reinforcing Rib+0.426mm Color Steel Skin
Roof Panel 0.8mm Galvanized Steel
Trench 2 Rows of Galvanized Floor Grating
Air Supply System Intake Ventilator 4*5.5KW Double-Inlet Centrifugal Fan
Outlet Ventilator 2*11KW Centrifugal Fan
Air Capacity 62,000m4/h
Air Speed 0.36m/s
Air Change Ratio 320 Times/h
Air Purification System Ceiling Filter Dust Particles Catching Capability＞4μm
Intake Air Filter Dust Particles Catching Capability＞10μm
Outlet Air Filter Activated Carbon
Instalation Way C style structure, Easy change
Heating System Burner 2 Sets of G20 Riello Diesel Burner, 400,000Kcal/h, Gas Burner for Option
Heat Energy Converters 2mm SOS304 Stainless Steel heat exchanger, Max Temp:80℃, Heating Time:5-6min(20’-60℃)
Air Damper Electric Control by BELIMO Electronic Actuator, Spraying&Curing Can Be Switched Automotively
Lighting System Ceiling Light 72x18W LED Lamps
Side Light 28x18W Lamps
Luminance(Lux) ≥1000Lux
Electronic Control System Control Box Motor Direct Start,Overload,Overheat,Phase-Lacking Protections,Light Switch, Spray & Baking Switch, Emergency Stop, Breakdown Alarm, Main Components use Brand Siemens or Schneidar

Customized Bus Paint Booth , Big Spray Booth With 2 Sets Of Generators CE ApprovedCustomized Bus Paint Booth , Big Spray Booth With 2 Sets Of Generators CE Approved

Customized Bus Paint Booth , Big Spray Booth With 2 Sets Of Generators CE Approved

Customized Bus Paint Booth , Big Spray Booth With 2 Sets Of Generators CE Approved

Customized Bus Paint Booth , Big Spray Booth With 2 Sets Of Generators CE Approved

Customized Bus Paint Booth , Big Spray Booth With 2 Sets Of Generators CE Approved

Optional:

Endothermic Panel

Customized Bus Paint Booth , Big Spray Booth With 2 Sets Of Generators CE Approved

Water Painting System

Customized Bus Paint Booth , Big Spray Booth With 2 Sets Of Generators CE Approved
