Automatic Tire Changing Machines 14''~56'' Rim 380V 50Hz For Heavy Duty Truck
Automatic Tire Changing Machines 14''~56'' Rim 380V 50Hz For Heavy Duty Truck
Automatic Tire Changing Machines 14''~56'' Rim 380V 50Hz For Heavy Duty Truck
Automatic Tire Changing Machines 14''~56'' Rim 380V 50Hz For Heavy Duty Truck
Automatic Tire Changing Machines 14''~56'' Rim 380V 50Hz For Heavy Duty Truck
Automatic Tire Changing Machines 14''~56'' Rim 380V 50Hz For Heavy Duty Truck
Specifications
Brand Name :
SG
Model Number :
SG-TC580
Certification :
CE
Place of Origin :
CHINA
MOQ :
5 UNITS
Payment Terms :
L/C, T/T
Supply Ability :
800 Units per month
Delivery Time :
30 WORKING DAYS
Packaging Details :
Carton+Pallet
Product Name :
Truck Tire Changing Machine
Brande Name :
SG
Application :
Truck Tires
Power Supply :
380V
Rim Clamping Capacity :
14"-56" with Extensions
Standard Color :
Orange+ Grey
Max. wheel weight :
2000kg
ax. Wheel Assembly Width :
1200mm
Max. Wheel Assembly Diameter :
2500mm
Pump Motor :
2.4/3KW
Gearbox Motor :
2.4/3KW
Operation Control Voltage :
24V
Description

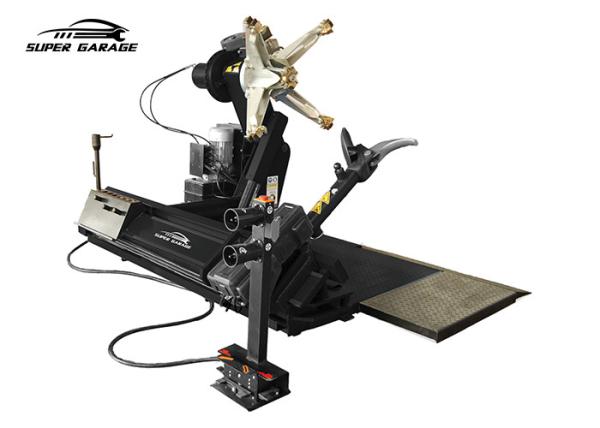

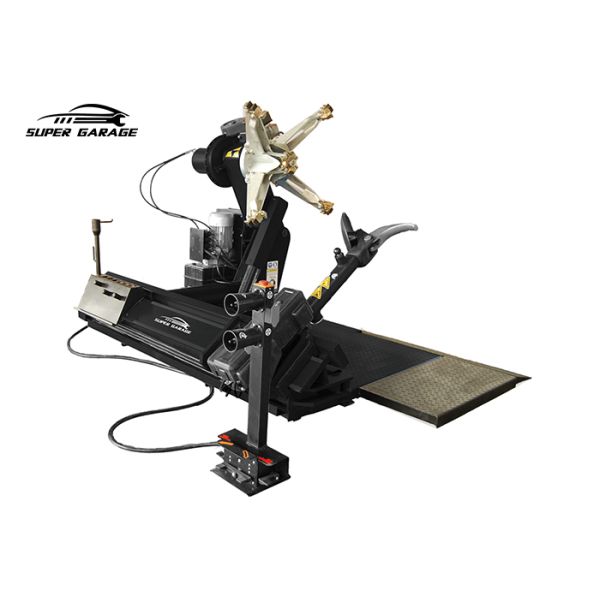

14''~56'' Rim Automatic Tire Changing Machine for Heavy Duty Truck Tire Changer Demounting Machine SG-TC580

TECHNICAL DATA

  • Rim Clamping Capacity: 14"-56"(with extensions)
  • Max. wheel weight:2000kg
  • Max. Wheel Assembly Width:1200mm
  • Max. Wheel Assembly Diameter:2500mm
  • Pump Motor: 2.4/3.0 kw,
  • Gearbox Motor: 2.4/3.0 kw,
  • Operation control voltage:24V
  • Power Supply :380v-3ph,50Hz(400V Optional)

MAIN FEATURES

  • Efficient electro-hydraulic-powered tire changer that combines a range of unique features and capabilities to make wheel service for trucks, buses, tractors and other specialized machinery faster, easier and more profitable.

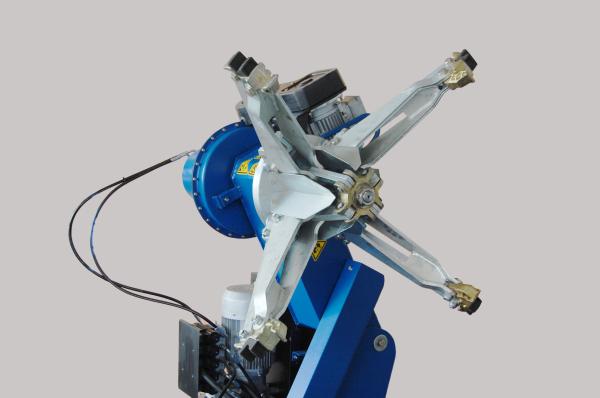

  • Self-centering, standard clamping capacity of 14 to 56 inches. Chuck rotation operates clockwise and counter-clockwise
  • Adjustable mount and demount head can accommodate different wheel sizes.
  • Tool head includes standard disk and hook for bead loosening, mounting and demounting tires. The hook tool folds out of the way when not in use.
  • Portable control system is convenient for operator to observe from different angle, improving the efficiency and safety.
  • Emergency control switch

Automatic Tire Changing Machines 14''~56'' Rim 380V 50Hz For Heavy Duty Truck

Optional Parts:

Alu-alloy rims protection rings

Automatic Tire Changing Machines 14''~56'' Rim 380V 50Hz For Heavy Duty Truck

Alu-alloy rims protection set

Automatic Tire Changing Machines 14''~56'' Rim 380V 50Hz For Heavy Duty Truck
