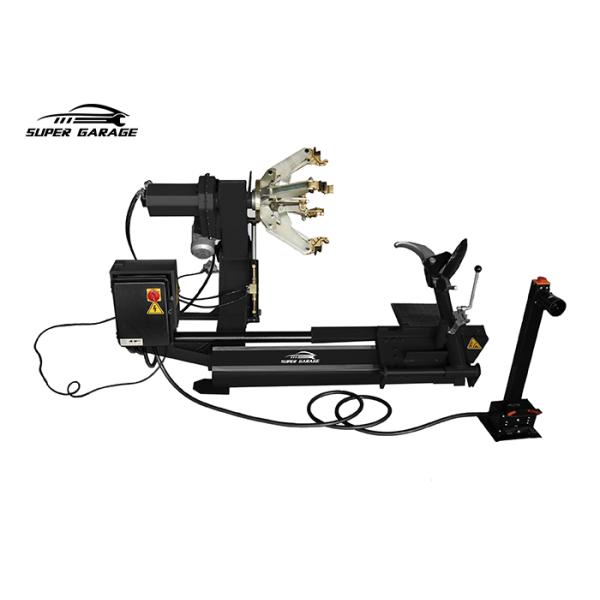

Semi Automatic Tire Changer , 14- 26 Big Truck Tire Machine 1600mm Wheel Diameter
Semi Automatic Tire Changer , 14- 26 Big Truck Tire Machine 1600mm Wheel Diameter
Specifications
Brand Name :
SG
Model Number :
SG-TC568
Certification :
CE
Place of Origin :
CHINA
MOQ :
5 UNITS
Payment Terms :
L/C, T/T
Supply Ability :
800 Units per month
Delivery Time :
30 WORKING DAYS
Packaging Details :
Carton+Pallet
Product Name :
Truck Tire Changing Machine
Brande Name :
SG
Rim Clamping Capacity :
14"-26"
Standard Color :
Orange+ Grey
Max. wheel weight :
500kg
ax. Wheel Assembly Width :
780mm
Max. Wheel Assembly Diameter :
1600mm
Application :
Truck Tires
Pump Motor :
1.5KW
Power Supply :
220V/380V
Gearbox Motor :
1.8KW
Bead breaker force :
2500kg
Operation Control Voltage :
24V
Description

Semi-Automatic Truck Tire Changer 14 "- 26" For Light Truck Tire Changer For Big Diameter Tires SG-TC568

TECHNICAL DATA

  1. Rim Clamping Capacity: 14"-26"
  2. Max. wheel weight:500kg
  3. Max. Wheel Assembly Width:780mm
  4. Max. Wheel Assembly Diameter:1600mm
  5. Pump Motor: 1.5 kw,380v-3ph,50Hz(220V Optional)
  6. Gearbox Motor: 1.8kw, 380v-3ph 50Hz(220V Optional)
  7. Bead breaker force:2500kg
  8. Operation control voltage:24V
  9. Power Supply:220V/400V/50/60HZ/1P/3P

MAIN FEATURES

Automatic professional tire changer for heavy operations and demanding truck tire services and car repair shops. Suitable for normal and tubeless tires. Self-centering 4-arm hydraulic chuck, which is moved by a two-speed motor. The mounting head can move clockwise and counterclockwise. A hydraulic jack, which moves the entire arm, takes care of its movement up and down. The hydraulics also take care of the tool head arm, which has an automatic lifting and manual rotation. The machine includes a mobile remote control and a ramp that makes it easy to adjust the wheel to the correct position.

  • Suitable for normal and tubeless tires
  • Wheel clamping in the range 14 "- 26"
  • Self-centering rotary table
  • Mobile remote control
  • Mobile ramp with wheels for easier movement of the wheel to the correct position
  • Two-speed engine
  • Tool head with automatic lifting and manual rotation
  • Universal tool head

Semi Automatic Tire Changer , 14

Optional Parts:

Alu-alloy rims protection rings

Semi Automatic Tire Changer , 14

Alu-alloy rims protection set

Semi Automatic Tire Changer , 14
