38 wheel width Tire Changing Machines / Wheel Mounting Machine 1.1KW 380V
38 wheel width Tire Changing Machines / Wheel Mounting Machine 1.1KW 380V
Specifications
Brand Name :
SG
Model Number :
SG-TC228A
Certification :
CE
Place of Origin :
CHINA
MOQ :
5 UNITS
Payment Terms :
L/C, T/T
Supply Ability :
800 Units per month
Delivery Time :
30 WORKING DAYS
Packaging Details :
Carton+Pallet
Product Name :
Tire Changing Machine
Brande Name :
SG
Working Arm :
Semi-automatic Side Swing Arm
Power Supply :
110V/220V/380V
Rim Material :
Steel, Al., Alloy
Standard Color :
Orange+ Grey
Max. Wheel Diameter :
45'' (1041mm)
Max. Wheel Width :
14'' (355mm)
Outer Clamp :
12"-23"
Inter Clamp :
14"-26"
Motorcycle Clamp :
9"-24"
Motor Power :
0.75KW/1.1KW
Noise Level :
<70dB
Description

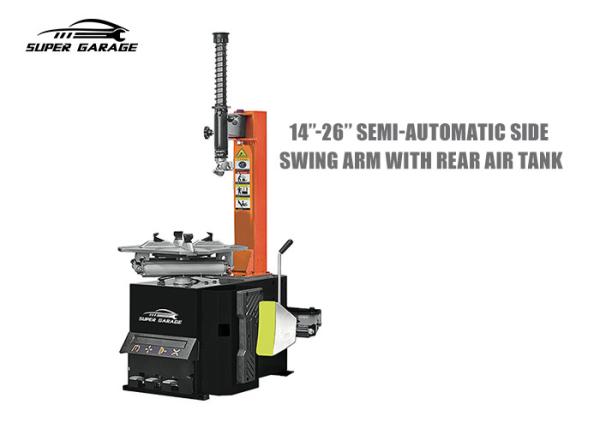

Tire Changing Machine With Semi-Automatic Side Swing Arm And Rear Air Tank SG-TC228A

TECHNICAL DATA

Model SG-TC228A
Rim material Steel, Al, Alloy
Max. wheel diameter 45"( 1140mm)
Max. wheel width 14" (355mm)
Outer clamp 12"-23"
Inter clamp 14"-26"
Motorcycle clamp 9"-24"
Power supply 110V/220V/380V
Air supply 0.75KW/1.1KW
Noise level <70dB "

MAIN FEATURES

  • Swing arm for minimum space requirement
  • Self-centring four-jaw turntable controlled via two clamping cylinders for correct clamping of the wheel
  • Bead breaker with large anti- skid rubber pad
  • Locking rim from 12”-26”
  • Pedal assembly may draw from front cover
  • Large bead breaker blade
  • Larger main body and turning table
  • |A| Rear air tank serves as tubeless tyre inflation device
  • The horizontal swing arm is strengthened, extend service life, lifetime warranty.
  • Modified bead breaking arm, breaking force increased by 30%
  • Strengthened machine body increased overall robustness.
  • The silver alloy contactor on switch to ensure it can bear large load, longevity.
  • Optimized design of demounting head, greatly release the tire tension during demounting.

38

Standard Parts:

Air Inflation Gun

38

38

Crow Bar

38

Jaw Cover

38

Mounting Head

38

Turntable

38

Optional Parts:

Motorcycle adapter

38

Air tank

38

Plastic mounting demounting head

38
