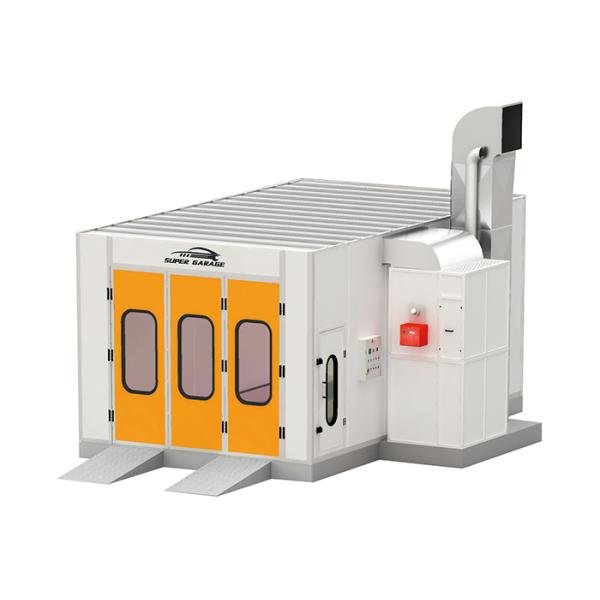

Auto Paint Room Automotive Paint Booth Car Body Painting 7.5KW Exhaust Fan SG-PB7200
Auto Paint Room Automotive Paint Booth Car Body Painting 7.5KW Exhaust Fan SG-PB7200
Auto Paint Room Automotive Paint Booth Car Body Painting 7.5KW Exhaust Fan SG-PB7200
Auto Paint Room Automotive Paint Booth Car Body Painting 7.5KW Exhaust Fan SG-PB7200
Specifications
Brand Name :
SG
Model Number :
SG-PB7200
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
1000 Units per month
Delivery Time :
30 Days
Packaging Details :
Carton+Pollywood
Product Name :
Automotive Spray Booth
External Dimension :
7.0x5.56x3.43 m
Internal Dimension :
6.9X4.0X2.65 m
Car Entrance :
3.0x2.65m
Working Door :
1.8x0.65m
Total Power :
10 Kw
Working Voltage :
220/380V/50/60Hz/3Ph
Air Circulation :
Down Draft
Basement :
3 Rows of Anti-Skid Checkered Plates+ 2 Rows of Grilles
Intake Ventilator :
2*4KW Double-Inlet Centrifugal Fan
Exhaust Ventilator :
For option
Burner :
Riello G20
Ceiling Light :
32x18W LED Lamps
Side Light :
For Option
Description

Auto Paint Room Automotive Paint Booth Car Body Painting

Technical Data:

MODEL SG-PB7200(ECO)
External Dimension LxWxH(m) 7.0x5.56x3.43
Internal Dimension LxWxH(m) 6.9X4.0X2.65
Car Entrance WxH(m) 3.0x2.65
Working Door WxH(m) 1.8x0.65
Total Power(KW) 10
Working Voltage 220/380V/50/60Hz/3Ph
Chamber System Wall Panel Sandwich Style, 50mm thickness, EPS Filler+0.326mm Color Steel Skin
Roof Panel Galvanized Steel
Basement 3 Rows of Anti-Skid Checkered Plates+ 2 Rows of Grilles
Ramp 2 Pieces Anti-Skid Diamond Plates
Air Supply System Intake Ventilator 2*4KW Double-Inlet Centrifugal Fan
Exhaust Ventilator For option
Air Capacity 24000m3/h
Air Speed 0.35m/s
Air Change Ratio 260 Times/h
Air Purification System Ceiling Filter Italian Technology,Dust Particles Catching Capability＞5μm
Intake Air Filter Dust Particles Catching Capability＞10μm
Outlet Air Filter /
Floor Filter Fiberglass, TSP value＜1.4mg/m3
Heating System Burner G20 Riello Diesel Burner, 180000Kcal/h, Gas Burner for Option
Heat Energy Converters SOS304 Stainless Steel heat exchanger, Max Temp:80℃, Heating Time:5-6min(20’-60℃), Fuel Consumption: 5-7kg/vehicle
Air Damper Electric Control by BELIMO Electronic Actuator, Spraying&Curing Can Be Switched Automotively
Oil Tank 50L
Lighting System Ceiling Light 32x18W LED Lamps
Side Light For Option
Luminance(Lux) 800
Electronic Control System Control Box Motor Direct Start,Overload,Overheat,Phase-Lacking Protections,Light Switch, Spray & Baking Switch, Emergency Stop, Breakdown Alarm
Environmental system For Option

Auto Paint Room Automotive Paint Booth Car Body Painting 7.5KW Exhaust Fan SG-PB7200

Auto Paint Room Automotive Paint Booth Car Body Painting 7.5KW Exhaust Fan SG-PB7200
