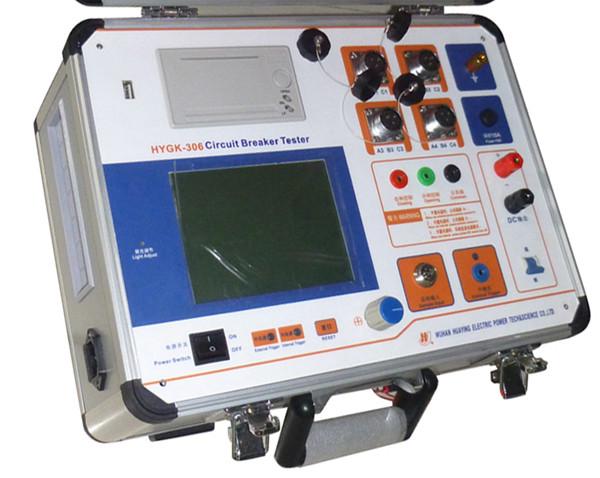

China HYGK-306 Circuit Breaker Analyzer
China HYGK-306 Circuit Breaker Analyzer
Specifications
Price :
email whhy818@163.com
Place of Origin :
Wuhan,Hubei,China
Brand Name :
Huaying
Certification :
ISO CE
MOQ :
1 set
Packaging Details :
wooden case
Delivery Time :
7 working days
Payment Terms :
T/T L/C
Supply Ability :
200 sets per month
Description

Circuit break analyzer HYGK-306

1, Test standard: IEC62271

2, Closing and opening time measurement of 12 channels

3, Max difference of closing or opening time measurement of three phases

4, C-O and O-C time measurement

5, Rated operation sequence test

6, Bounce time and frequency measurement of breaker closing

7, Circuit breaker closing and opening speed measurement

8, Travel-time, Coil current-time curve of circuit breaker operation measurement

9, Travel and clearance of circuit breaker measurement

10, Variable DC circuit breaker operation power supply

11, Closing arc resistance value and connected time measurement

12, Closing time and opening time of graphite circuit breaker measurement

13, Print test results by internal micro printers

1, Time measurement range: 6000ms, resolution 0.1ms

2, Time measurement error <1%RDG+0.2ms

3, Speed measurement:

Range 2m/s resolution 0.01m/s max error<0.1m/s

Range 20m/s resolution 0.01m/s max error<0.2m/s

4, Travel measurement:

5, Range 50.0mm resolution 0.1mm max error<1%RDG+0.1%FS

Range 300.0mm resolution 1mm max error<1%RDG+0.1%FS

Range 600.0mm resolution 1mm max error<1%RDG+0.1%FS

6, Coil current measurement range 20.00A, resolution 0.01A, error 2%+0.2%FS

7, Closing resistance value measurement range: 100~10000ohm, error: 5%RDG

8, DC Power out: DC30V~250V/20A (instantaneous)

9, Power supply: AC220V±10% 50Hz±10%

10, Temperature: -10~40°C humidity: <80%
