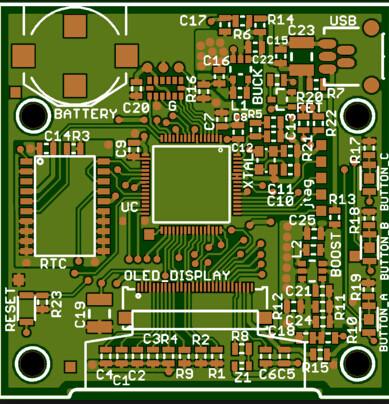

Heavy Copper Printed Circuit Board 10 Laye White Silkscreen Thick Copper PC
Heavy Copper Printed Circuit Board 10 Laye White Silkscreen Thick Copper PC
Specifications
Brand Name :
HUASWIN
Model Number :
HSPCB1004
Certification :
ISO/UL/RoHS
Place of Origin :
China
MOQ :
1 sets
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
20000 Square meter per month
Delivery Time :
5 working days
Packaging Details :
Vacuum Package + Good quality carton box
Description

Heavy Copper Printed Circuit Board 10 Layer , White Silkscreen / Thick Copper PC

Huaswin Electronics is a professional Printed Circuit Boards manufacturer with many years’ experience in China.

Specifications

1. Multilayer FR4 television pcb board with thick copper
2. Six layer
3. Thickness 1.6MM
4. Quick time and nice service

Detailed Specification of PCB Manufacturing

1

layer

1-30 layer

2

Material

CEM-1, CEM-3 FR-4, FR-4 High TG, Polyimide,

Aluminum-based material.

3

Board thickness

0.2mm-6mm

4

Max.finished board size

800*508mm

5

Min.drilled hole size

0.25mm

6

min.line width

0.075mm(3mil)

7

min.line spacing

0.075mm(3mil)

8

Surface finish

HAL, HAL Lead free,Immersion Gold/ Silver/Tin,

Hard Gold, OSP

9

Copper thickness

0.5-4.0oz

10

Solder mask color

green/black/white/red/blue/yellow

11

Inner packing

Vacuum packing, Plastic bag

12

Outer packing

standard carton packing

13

Hole tolerance

PTH:±0.076,NTPH:±0.05

14

Certificate

UL,ISO9001,ISO14001,ROHS,TS16949

15

Profiling punching

Routing,V-CUT,Beveli

PCB manufacturer Testing procedures

* Visual Inspection

* Flying probe

* Impedance control

* Solder-ability detection

* Digital metallograghic microscope

* AOI (Automated Optical Inspection)

What we need

* For PCB enquiry, gerber file or any other pcb production file is needed. Any details are also welcomed if no Gerber file,

such as schematic or a sample.

* For PCBA enquiry,BOM(Bill of Materials) is needed besides.

* Reverse engineering and PCB clone services are available if given a sample.

15 years PCB factory experience.

Our PCB are using for wide range of electronic products, such as project, amplifier, CCTV, power supply, GPS, Set-top box, medical device, Telecommunication, LED light and so on.

Our Product range
We offer a wide range of PCBs such as single-sided, double-sided, multi-layer, high frequency, MCPCB, metal-backed PCB and so on.
