OEM Rigid Flex PCB Assembly Hard Gold Plating Rigid Flexible PCB
OEM Rigid Flex PCB Assembly Hard Gold Plating Rigid Flexible PCB
Specifications
Brand Name :
HUASWIN
Model Number :
HSRFPC1003
Certification :
ISO/UL/RoHS
Place of Origin :
China
MOQ :
1 sets
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10,000pcs per month
Delivery Time :
15-20 working days
Packaging Details :
Anti-static bag + Anti-static bubble wrap + Good quality carton box
Description

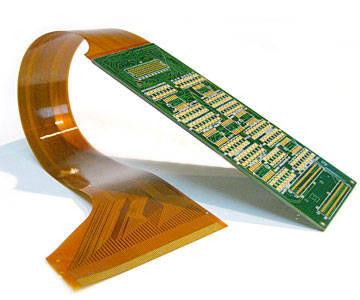

OEM Rigid Flex PCB Assembly / Hard Gold plating PCB Assembly service

Our Services

We are a Manufacturer & Supplier Specializing in Double Side PCB, Multi-Layer PCB, F4BK PCB, Ceramic PCB, Rogers PCB, Aluminum PCB. Meanwhile, we provide PCBA ( Assembly) and ODM, OEM service. We are specializes in a full SMT and through hole PCBA assembly, obtaining components, building prototype quantities, and testing.
1. Our professional engineering team can put your project into production in a short time. Sample pictures and BOM are needed to make customized products
2. We can supply CAD and Pro-E designed precision moulds. Moulds can be designed and manufactured according to customers' requests or samples. Plastic injection processing available.
3. We have advanced equipment for through-hole and SMT DIP COB cable assembly.
4. ROHS compliant and lead-free process.
5. In-circuit, functional tests& burn-in tests, full system test
6. High output to guarantee prompt delivery.

Specifications

- PCB&PCBA Service
- UL,SGS,Rohs Certificated
- Competitive Price,High Quality
- OEM PCBA are welcome


Flexible pcb


1. High quality,good price and service
2. Delivery time:5-7days.
3. Certificates:UL,ISO9001,RoHS



Detailed Specification of Flexible PCB Manufacturing

Technical Specification

Layers:

1~10 (flex Pcb) and 2~8 (rigid flex)

　

Min Panel Size:

5mm x 8mm

　

Max Panel Size:

250 x 520mm

　

Min Finished board thickness:

0.05mm (1 sided inclusive copper)

　

Max Finished board thickness:

0.3mm (2 sided inclusive copper)

　

Finished board thickness tolerance:

±0.02~0.03mm

　

Material:

Kapton, Polyimide, PET

　

Base copper thickness (RA or ED):

1/3 oz, 1/2 oz, 1oz, 2oz

　

Base PI thickness:

0.5mil, 0.7mil, 0.8mil, 1mil, 2mil

　

Stiffner:

Polyimide, PET, FR4, SUS

　

Min Finished hole diameter:

Φ 0.15mm

　

Max Finished hole diameter:

Φ 6.30mm

　

Finished hole diameter tolerance (PTH):

±2 mil ( ±0.050mm)

　

Finished hole diameter tolerance (NPTH):

±1 mil ( ±0.025mm)

　

Min width/spacing (1/3oz):

0.05mm/0.06mm

　

Min width/spacing (1/2oz):

0.06mm/0.07mm

　

Min width/spacing (1oz):

Single layer: 0.07mm/0.08mm

　

Double layer: 0.08mm/0.09mm

　

Aspect Ratio

6:01

8:01

Base Copper

1/3Oz--2Oz

3 Oz for Prototype

Size Tolerance

Conductor Width:±10%

W ≤0.5mm

Hole Size: ±0.05mm

H ≤1.5mm

Hole Registration: ±0.050mm

　

Outline Tolerance:±0.075mm

L ≤50mm

Surface Treatment

ENIG: 0.025um - 3um

　

OSP:

　

Immersion Tin: 0.04-1.5um

　

Dielectric Strength

AC500V

　

Solder Float

288℃/10s

IPC Standard

Peeling Strength

1.0kgf/cm

IPC-TM-650

Flammability

94V-O

UL94



Quotation Requirement :

1) Following specifications are needed for quotation:
a) Base material
b) Board thickness:
c) Copper thickness
d) Surface treatment:
e) color of solder mask and silkscreen:
f) Quantity


Shiping method:

1) By DHL, Fedex, UPS, TNT etc.
2) By sea if it is possible
3) By air
