8 Layer Rigid Multilayer PCB 1.6MM Immersion Gold Impedance Control
8 Layer Rigid Multilayer PCB 1.6MM Immersion Gold Impedance Control
8 Layer Rigid Multilayer PCB 1.6MM Immersion Gold Impedance Control
8 Layer Rigid Multilayer PCB 1.6MM Immersion Gold Impedance Control
8 Layer Rigid Multilayer PCB 1.6MM Immersion Gold Impedance Control
8 Layer Rigid Multilayer PCB 1.6MM Immersion Gold Impedance Control
8 Layer Rigid Multilayer PCB 1.6MM Immersion Gold Impedance Control
8 Layer Rigid Multilayer PCB 1.6MM Immersion Gold Impedance Control
8 Layer Rigid Multilayer PCB 1.6MM Immersion Gold Impedance Control
8 Layer Rigid Multilayer PCB 1.6MM Immersion Gold Impedance Control
Specifications
Brand Name :
WITGAIN PCB
Model Number :
P08E3161A2
Certification :
UL Certificate
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
500kpcs/month
Delivery Time :
20 work days
Packaging Details :
40pcs/bag, 10bags/carton
Layer Count :
8 Layer
Material :
FR4 S1000-2
Board Thickness :
1.6MM
Unit Size :
200mm*120mm/2up
Solder Mask :
Green
Surface Treatment :
ENIG
Description

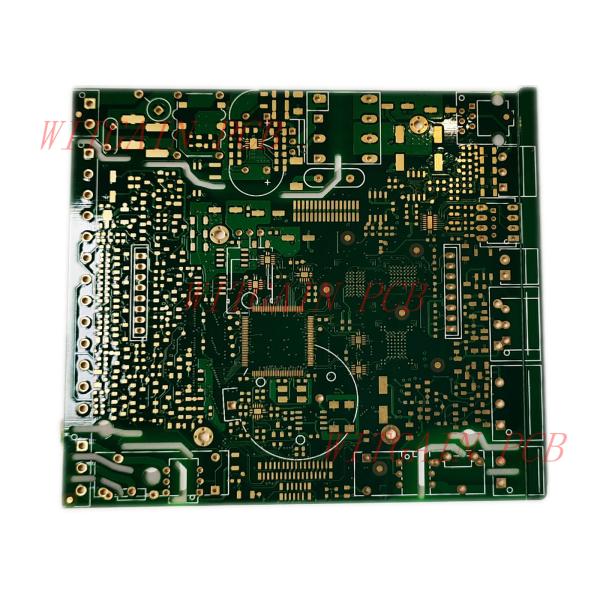

8 Layer Rigid Printed Circuit Board , 1.6MM , Immersion Gold , Impedance Control

8 Layer Rigid Printed Circuit Board

PCB Specifications:

Layer Count: 8 Layer Rigid PCB

Material: FR4, S1000-2

Board Thickness: 1.6MM

Min Hole: 0.2MM

Min Trace: 6/6Mil

BGA Size: 10Mil

Unit Size: 200mm*120mm/2up

Solder Mask: Green

Surface Treatment: ENIG

Application: Power Supply

Capabilities:

Item Capability
Layer Count 1-24 Layers
Board Thickness 0.1mm-6.0mm
Finished Board Max Size 700mm* 800mm
Finished Board Thickness Tolerance +/-10% +/-0.1(<1.0mm)
Warp <0.7%
Major CCL Brand KB/NanYa/LTEQ/ShengYi/Rogers Etc
Material Type FR4,CEM-1,CEM-3,Aluminum,Copper,Ceramic, PI, PET
Drill Hole Diameter 0.1mm-6.5mm
Out Layer Copper Thickness 1/20Z-8OZ ;
Inner Layer Copper Thickness 1/3OZ-6OZ
Aspect Ratio 10:1
PTH Hole Tolerance +/-3mil
NPTH Hole Tolerance +/-1mil
Copper Thickness Of PTH Wall >10mil(25um)
Line Width And Space 2/2mil
Min Solder Mask Bridge 2.5mil
Solder Mask Alignment Tolerance +/-2mil
Dimension Tolerance +/-4mil
Max Gold Thickness 200u'(0.2mil)
Thermal Shock 288C, 10s, 3 Times
Impedance Contro +/-10%
LTest Capability PAD Size Min 0.1mm
Min BGA 7mil
Surface Treatment OSP, ENIG, HASL, Plating Gold, Carbon Oil,Peelable

Our Service:

We can offer below services to our cutomers.

1) PCB Design

We have experienced engineers who used to work in HuaWei and Cisco. They have rich experience in PCB design and layout. If cutomers want to outsource the pcb design work to suppliers, we can take it.

2) PCB Manufacturing(Main Business)

PCB manufacturing is our main business. We have two factories which produce pcbs and we can produce very rich kinds of pcb, like HDI pcb, multilayer pcb, rigid-flex pcb, half hole pcb, thick copper pcb, hard gold pcb etc. This business is our main profit resources.

3) Components Outsourcing

Since our marketing office locates in ShenZhen City, we have very rich suppliers resources for componenets. If our customers want us to buy components, we can also do that.

4) PCB Assembly

We have very close brother factories which offer SMT and DIP services. For some customers, they only need samples pcba and they do not want to find too many suppliers,
