Multi Layer Fr4 PCB Printed Circuit Board KB6160C HASL Lead Free UL Certificate
Multi Layer Fr4 PCB Printed Circuit Board KB6160C HASL Lead Free UL Certificate
Multi Layer Fr4 PCB Printed Circuit Board KB6160C HASL Lead Free UL Certificate
Multi Layer Fr4 PCB Printed Circuit Board KB6160C HASL Lead Free UL Certificate
Multi Layer Fr4 PCB Printed Circuit Board KB6160C HASL Lead Free UL Certificate
Multi Layer Fr4 PCB Printed Circuit Board KB6160C HASL Lead Free UL Certificate
Specifications
Brand Name :
WITGAIN PCB
Model Number :
P04F3026A0
Certification :
UL Certificate
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
500kpcs/month
Delivery Time :
15 work days
Packaging Details :
60pcs/bag, 20bags/carton
MateriL :
FR4
Material Brand :
KB6160C
Board Thickness :
1.6MM
Surface Treatment :
HASL , Lead Free
Layer count :
4 Layer
Solder Mask :
Green
Description

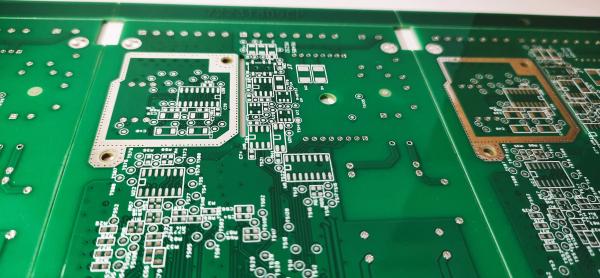

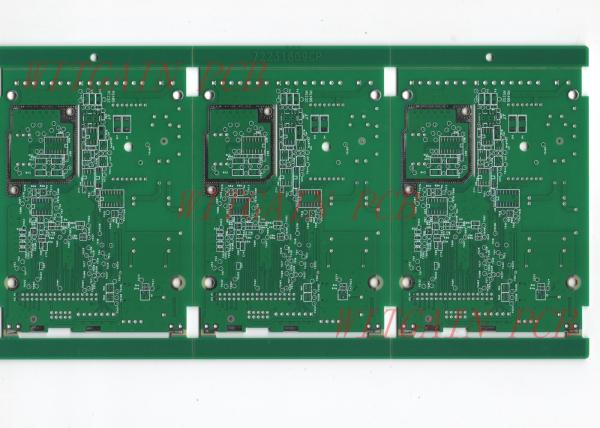

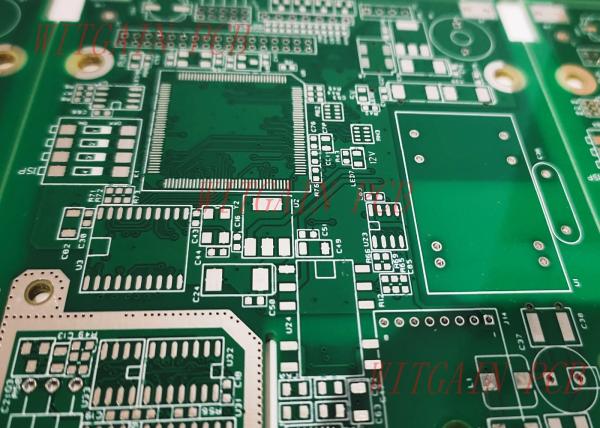

4 Layer Rigid Printed Circuit Board

PCB Specifications:

Layer Count: 4 Layer PCB

Hole Stucture: L1-L4

Min Hole: 0.35MM

Min Trace: 5/5Mil

Solder Mas:Green

Material: FR4 KB6160C

Board Thickness: 1.6MM

Unit Size: 180MM*85MM/3UP

Surface Treatment: HASL , Lead Free

Application: Power Supply

Capabilities:

Item Capability
Layer Count 1-24 Layers
Board Thickness 0.1mm-6.0mm
Finished Board Max Size 700mm* 800mm
Finished Board Thickness Tolerance +/-10% +/-0.1(<1.0mm)
Warp <0.7%
Major CCL Brand KB/NanYa/LTEQ/ShengYi/Rogers Etc
Material Type FR4,CEM-1,CEM-3,Aluminum,Copper,Ceramic, PI, PET
Drill Hole Diameter 0.1mm-6.5mm
Out Layer Copper Thickness 1/20Z-8OZ ;
Inner Layer Copper Thickness 1/3OZ-6OZ
Aspect Ratio 10:1
PTH Hole Tolerance +/-3mil
NPTH Hole Tolerance +/-1mil
Copper Thickness Of PTH Wall >10mil(25um)
Line Width And Space 2/2mil
Min Solder Mask Bridge 2.5mil
Solder Mask Alignment Tolerance +/-2mil
Dimension Tolerance +/-4mil
Max Gold Thickness 200u'(0.2mil)
Thermal Shock 288C, 10s, 3 Times
Impedance Contro +/-10%
LTest Capability PAD Size Min 0.1mm
Min BGA 7mil
Surface Treatment OSP, ENIG, HASL, Plating Gold, Carbon Oil,Peelable

FAQ:

Question: What is the application area of your products?

Answer: Our products are widely used in many areas, such as consumer electronics( ANC earphone, tws earphone, blue-tooh module etc), automobile, industrial control, power supply products, communication products, LED Lights, printers, mobile phone, medical equipments etc.

Question: Do you have MOQ requirements?

Answer: Because PCB is customized products, so we do have MOQ requirements. But the MOQ rquirement is not strict and it differs from case to case.
