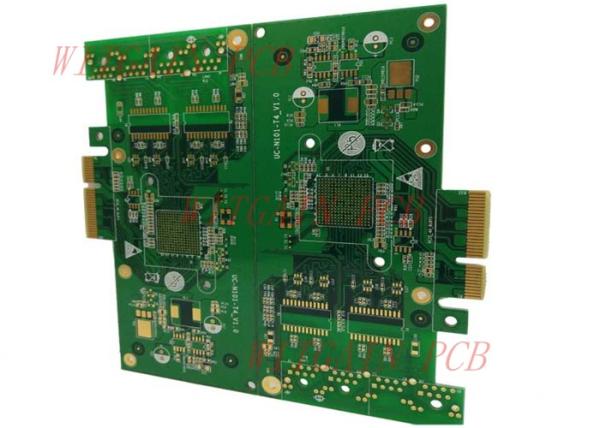

6 Layer Gold Finger Printed Circuit Board

PCB Specifications:

Layer Count: 6Layer Gold Finger PCB

Board Thickness: 1.6MM

Material: FR4 S2130

Copper Thickness: 35/35/35/35/35/35UM

Min Hole: 0.25MM

Min Line: 5/5 Mil

Hole: L1-L6

Solder Mask: Green

Surface Treatment: ENIG+GOLD FINGER

Gold Thickness: 20U'+1U'

Application: Test Equipment

Capabilities:

Item Capability
Layer Count 1-24 Layers
Board Thickness 0.1mm-6.0mm
Finished Board Max Size 700mm* 800mm
Finished Board Thickness Tolerance +/-10% +/-0.1(<1.0mm)
Warp <0.7%
Major CCL Brand KB/NanYa/LTEQ/ShengYi/Rogers Etc
Material Type FR4,CEM-1,CEM-3,Aluminum,Copper,Ceramic, PI, PET
Drill Hole Diameter 0.1mm-6.5mm
Out Layer Copper Thickness 1/20Z-8OZ ;
Inner Layer Copper Thickness 1/3OZ-6OZ
Aspect Ratio 10:1
PTH Hole Tolerance +/-3mil
NPTH Hole Tolerance +/-1mil
Copper Thickness Of PTH Wall >10mil(25um)
Line Width And Space 2/2mil
Min Solder Mask Bridge 2.5mil
Solder Mask Alignment Tolerance +/-2mil
Dimension Tolerance +/-4mil
Max Gold Thickness 200u'(0.2mil)
Thermal Shock 288C, 10s, 3 Times
Impedance Contro +/-10%
LTest Capability PAD Size Min 0.1mm
Min BGA 7mil
Surface Treatment OSP, ENIG, HASL, Plating Gold, Carbon Oil,Peelable


FAQ:

Question: What is the lead time for 8 layer gold finger pcb?

Answer: The standard lead time for sample is 3 weeks, for production is 4 weeks.
