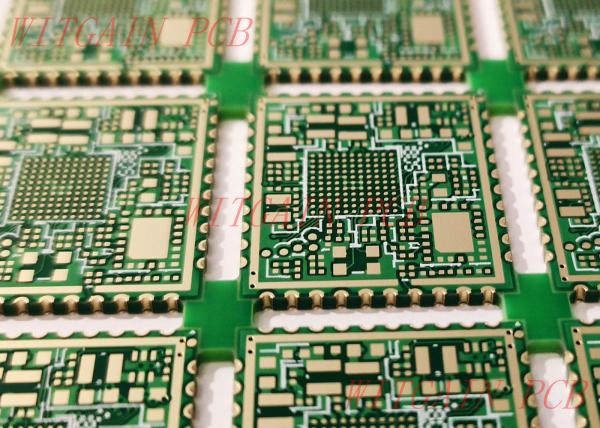

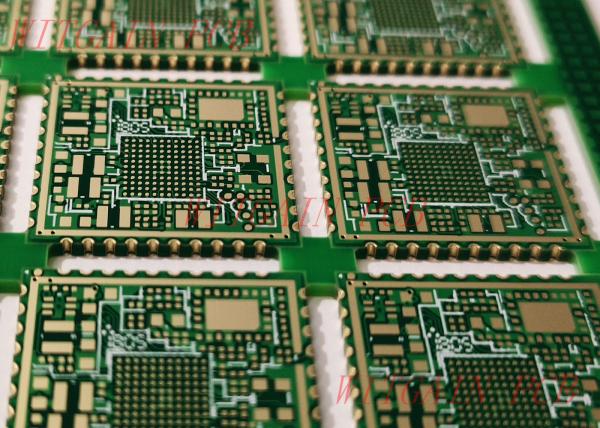

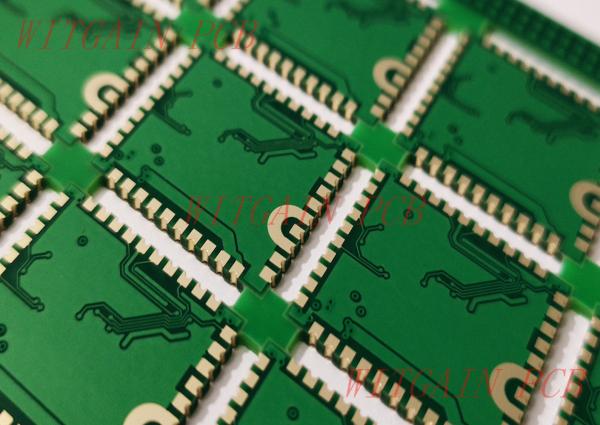

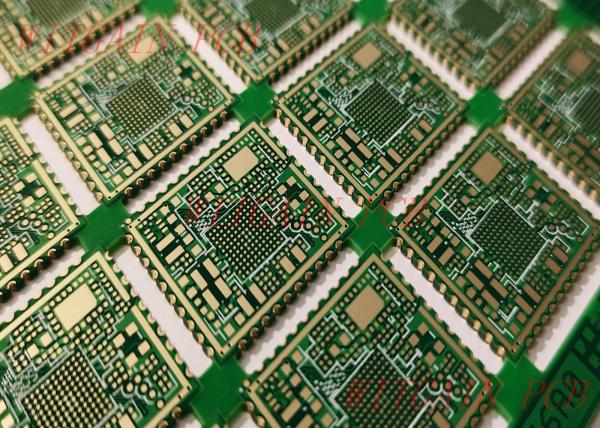

4 Layer Half Hole Printed Circuit Board , Finished Thickness 0.8MM , HDI , Blind And Buried Holes

4 Layer Half Hole Printed Circuit Board With Blind And Buried Holes

PCB Specifications:

Layer Count: 4Layer Half Plated Hole PCB

Board Thickness: 0.8MM

Copper Thickness: 1/H/H/1OZ

BGA Size: 10 Mil, Via In Pad

Min Hole: 0.1MM

Min Line: 3/3 Mil

Hole: L1-L4

Blind Hole: L1-L2 0.1MM, L3-L4 0.1MM

Buried Hole: L3-L4 0.2MM

Solder Mask: Green

Surface Treatment: ENIG

Material: FR4

Unit Size: 84*92MM/4*4up

Special Treatment: 4 Side Half Plated Holes

Application: WIFI Module

Capabilities:

Item Capability
Layer Count 1-24 Layers
Board Thickness 0.1mm-6.0mm
Finished Board Max Size 700mm* 800mm
Finished Board Thickness Tolerance +/-10% +/-0.1(<1.0mm)
Warp <0.7%
Major CCL Brand KB/NanYa/LTEQ/ShengYi/Rogers Etc
Material Type FR4,CEM-1,CEM-3,Aluminum,Copper,Ceramic, PI, PET
Drill Hole Diameter 0.1mm-6.5mm
Out Layer Copper Thickness 1/20Z-8OZ ;
Inner Layer Copper Thickness 1/3OZ-6OZ
Aspect Ratio 10:1
PTH Hole Tolerance +/-3mil
NPTH Hole Tolerance +/-1mil
Copper Thickness Of PTH Wall >10mil(25um)
Line Width And Space 2/2mil
Min Solder Mask Bridge 2.5mil
Solder Mask Alignment Tolerance +/-2mil
Dimension Tolerance +/-4mil
Max Gold Thickness 200u'(0.2mil)
Thermal Shock 288C, 10s, 3 Times
Impedance Contro +/-10%
LTest Capability PAD Size Min 0.1mm
Min BGA 7mil
Surface Treatment OSP, ENIG, HASL, Plating Gold, Carbon Oil,Peelable


FAQ:

Question: What is the most common quality issue for this kinf of pcb?

Answer: 1) Copper burr in half holes

2) Oxidation in half holes
