TG170 6 Layer Half Hole PCB 0.8 MM S1000-2 Fr4 Printed Circuit Board
TG170 6 Layer Half Hole PCB 0.8 MM S1000-2 Fr4 Printed Circuit Board
TG170 6 Layer Half Hole PCB 0.8 MM S1000-2 Fr4 Printed Circuit Board
TG170 6 Layer Half Hole PCB 0.8 MM S1000-2 Fr4 Printed Circuit Board
TG170 6 Layer Half Hole PCB 0.8 MM S1000-2 Fr4 Printed Circuit Board
TG170 6 Layer Half Hole PCB 0.8 MM S1000-2 Fr4 Printed Circuit Board
TG170 6 Layer Half Hole PCB 0.8 MM S1000-2 Fr4 Printed Circuit Board
TG170 6 Layer Half Hole PCB 0.8 MM S1000-2 Fr4 Printed Circuit Board
TG170 6 Layer Half Hole PCB 0.8 MM S1000-2 Fr4 Printed Circuit Board
TG170 6 Layer Half Hole PCB 0.8 MM S1000-2 Fr4 Printed Circuit Board
Specifications
Brand Name :
WITGAIN PCB
Model Number :
Half hole PCB0014
Certification :
UL
Place of Origin :
China
MOQ :
1 pcs/lot
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
100k pcs/month
Delivery Time :
20 days
Packaging Details :
Vacuum bubble bag packaging
No of layers: :
6 Layer
Material: :
FR4 TG>170
Impedance Control :
50 Ohm
Solder mask colour: :
Green
Surface technics: :
ENIG
PCB Size :
106mm*91mm/6pcs
Description

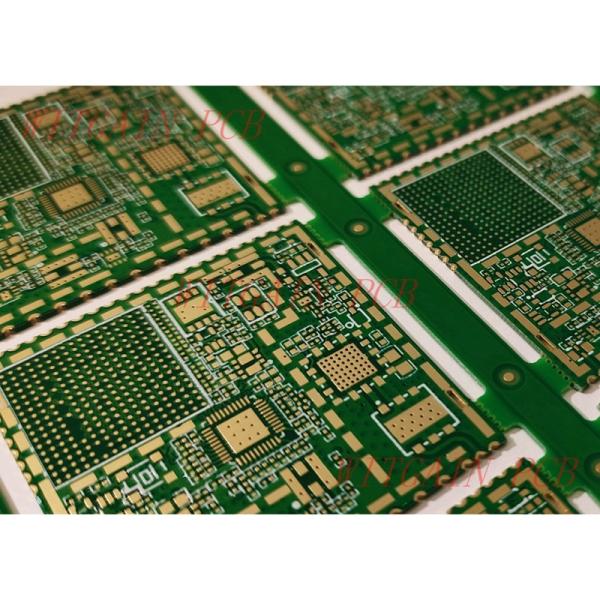

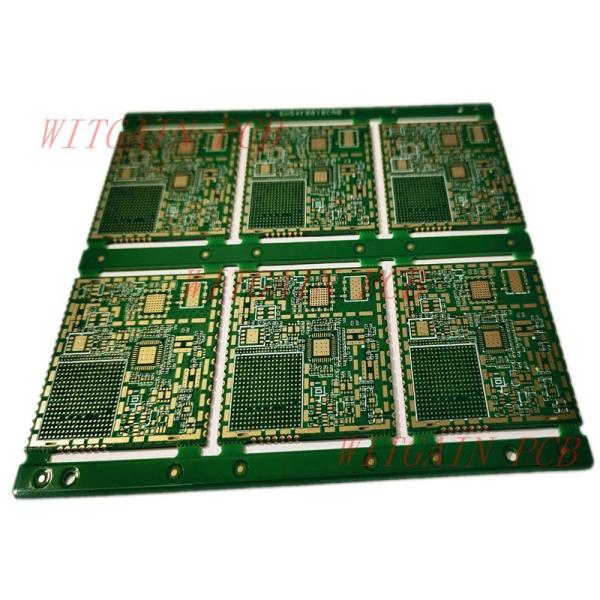

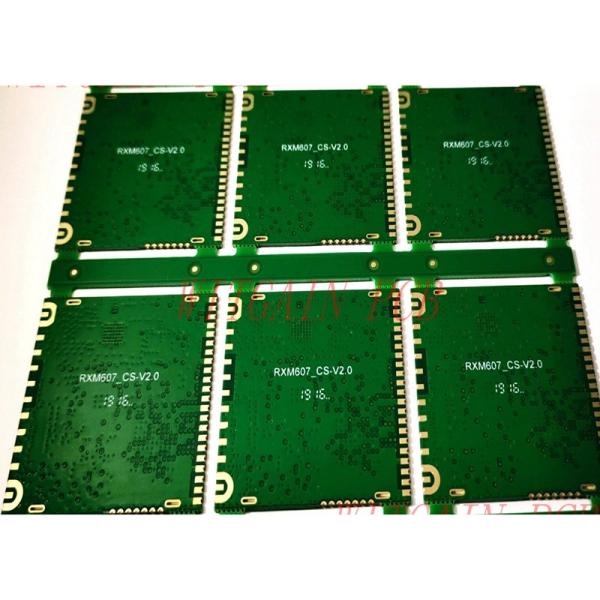

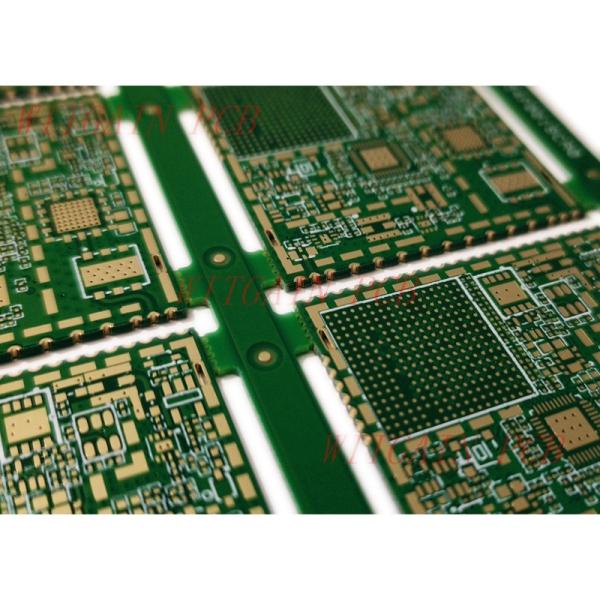

6 Layer Half Hole PCB 0.8 MM Thickness S1000-2 Material TG170

Board Info:

1 Part NO: Half hole PCB0014


2 Layer Count: 6 Layer PCB


3 Finished Board Thickness: 0.8MM tolerance is +/-0.1MM


4 Copper Thickness: 1/1/1/1/1/1OZ


5 PCB Size: 106mm*91mm/6pcs


6 Application Area: Bluetooth Module

Our Capabilities:

NO Item Capability
1 Layer Count 1-24 Layers
2 Board Thickness 0.1mm-6.0mm
3 Finished Board Max Size 700mm*800mm
4 Finished Board Thickness Tolerance +/-10% +/-0.1(<1.0mm)
5 Warp <0.7%
6 Major CCL Brand KB/NanYa/ITEQ/ShengYi/Rogers Etc
7 Material Type FR4,CEM-1,CEM-3,Aluminum,Copper, Ceramic, PI, PET
8 Drill Hole Diameter 0.1mm-6.5mm
9 Out Layer Copper Thickness 1/2OZ-8OZ
10 Inner Layer Copper Thickness 1/3OZ-6OZ
11 Aspect Ratio 10:1
12 PTH Hole Tolerance +/-3mil
13 NPTH Hole Tolerance +/-1mil
14 Copper Thickness of PTH Wall >10mil(25um)
15 Line Width And Space 2/2mil
16 Min Solder Mask Bridge 2.5mil
17 Solder Mask Alignment Tolerance +/-2mil
18 Dimension Tolerance +/-4mil
19 Max Gold Thickness 200u'(0.2mil)
20 Thermal Shock 288℃, 10s, 3 times
21 Impedance Control +/-10%
22 Test Capability PAD Size min 0.1mm
23 Min BGA 7mil
24 Surface Treatment OSP, ENIG,HASL, Plating Gold, Carbon Oil,Peelable Mask etc

Packing Specifications:

1 One vacuum pcb package should not be over 25 panels based on panel size.

2 The vacuum pcb package sealed must be free to tear, hole or any defects that may cause leakage.

3 The pcb package must be suitable to ensure effective vacuum sealing.

4 Every package must have desiccant and humidity indicator card on the inside of vacuum package.

5 Humidity indicator card target less than 10%.

Product tags

fr4 printed circuit board

,

pcb fr1

,

bl682 printed circuit board
Send your message to this supplier
Send Now

TG170 6 Layer Half Hole PCB 0.8 MM S1000-2 Fr4 Printed Circuit Board

Ask Latest Price
Product Detail
Brand Name :
WITGAIN PCB
Model Number :
Half hole PCB0014
Certification :
UL
Place of Origin :
China
MOQ :
1 pcs/lot
Price :
negotiable
Contact Supplier
TG170 6 Layer Half Hole PCB 0.8 MM S1000-2 Fr4 Printed Circuit Board
TG170 6 Layer Half Hole PCB 0.8 MM S1000-2 Fr4 Printed Circuit Board
TG170 6 Layer Half Hole PCB 0.8 MM S1000-2 Fr4 Printed Circuit Board
TG170 6 Layer Half Hole PCB 0.8 MM S1000-2 Fr4 Printed Circuit Board
TG170 6 Layer Half Hole PCB 0.8 MM S1000-2 Fr4 Printed Circuit Board

Witgain Technology Limited

Active Member
4 Years
shenzhen
Since 2007
Business Type :
Manufacturer
Main Products :
Printed Circuit Boards, Multilayer Circuit Board, Half Hole PCB
Total Annual :
25,000,000-30,000,000
Employee Number :
200~300
Certification Level :
Active Member
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products Half Hole PCB
MachineU China Products Office & School Supplies Commercial office supplies Office Equipment Electronic Whiteboard
Contact Supplier
Submit Requirement
