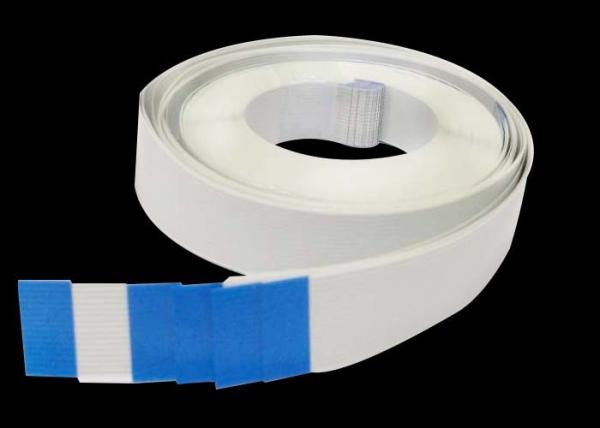

Printer Head Cable Flat ffc cable For epson LQ2190 compatible new cycle more than 3000000
Printer Head Cable Flat ffc cable For epson LQ2190 compatible new cycle more than 3000000
Specifications
Brand Name :
EPSON
Model Number :
LQ2190
Place of Origin :
CHINA
MOQ :
100SETS
Price :
negotiable
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
500PCS PER DAY
Packaging Details :
in bags
Delivery Time :
5-8 work days
type :
head cable
model :
LQ2190
brand :
epson
We have :
in this field since2002
Cycle :
more than 3000000
packing :
in bags
Description

Printer Head Cable Flat ffc cable For epson LQ2190 compatible new cycle more than 3000000

Appearance: Compatible,new,handiness,super-thinness,bending resistance,made of excellent compatible palstic,and Imported copper core.

Cycle: more than 3000000
Packing: in bags

Product Description

Product Name Print head flat cable for print head for epson lq-2190
Factory Certificate ROHS, UL(E256404), SGS, ISO( ISO14000 ,9001:2000),TS16949
Factory Profile A subsidiary factory of Lianchuang Technoloy Group
Experince about 20years
Service Short Delivery Time, Professional Engineers Team, Competitive Price

Insulators:

insulating material standard: PBT also available: PET, PPS, PEN, ...
insulation thickness 43µm to 100µm
color standard white/Black with UL Mark printing

Conductors:

number of conductors 2 to 90
conductor material Tin-plating copper/gold-plating copper
strength and elongation soft copper: 210 N/mm 2- 280 N/mm 2, elongation > 20%
hard copper: > 300 N/mm 2, elongation < 2,5%
conductivity at rt 58,0 m/ohmmm
edge natural round (milled conductors) or cut copper fi lm
dimensional range conductor width: from 0,4 mm to 11 mm
conductor thickness: from 0,035 mm to 0,200 mm

Examples for cross sections:

width thickness cross section
0,60mm 0,035mm 0,021 mm 2
1,80mm 0,035mm 0,063 mm 2
10,00mm 0,035mm 0,350 mm 2
0,60mm 0,100mm 0,060 mm 2
0,95mm 0,120mm 0,144 mm 2

Quality assurance and service:
1) 100% guarantee quality and long life cycle.
2)Test it one by one to make sure the quality before delivery.
3) strong supply ability.

4) good after-sale service.

1. We promise that all products are tested before shipping!

2. If any quality problem about our products, we will give you full refund after you send back the goods. Please kindly be noted that the shipping fee will be at your side.

3. Your 100% satisfaction is our expectation.

Printer spare part: fuser assembly, fuser film sleeve, scanners, transfer rollers, transfer belts, pressure rollers, , upper rollers, pickup rollers, separation pads, formatter board, power supply board .heating elements, gears ,memory card ,printer head,scanning head,pick up roller assembly and output paper tray.
