Steel 0.25-0.5mm Pad Printing Cliche Plate HRC52 High Hardness
Steel 0.25-0.5mm Pad Printing Cliche Plate HRC52 High Hardness
Steel 0.25-0.5mm Pad Printing Cliche Plate HRC52 High Hardness
Steel 0.25-0.5mm Pad Printing Cliche Plate HRC52 High Hardness
Steel 0.25-0.5mm Pad Printing Cliche Plate HRC52 High Hardness
Steel 0.25-0.5mm Pad Printing Cliche Plate HRC52 High Hardness
Specifications
Brand Name :
HY
Model Number :
maany size
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
300
Delivery Time :
3
Packaging Details :
paper case
Material :
Steel plate
Kind :
Pad printing plate
Size :
Customizable
Hardness :
HRC52
Thickness :
0.25-0.5MM
Logo making :
Can make logo
Description

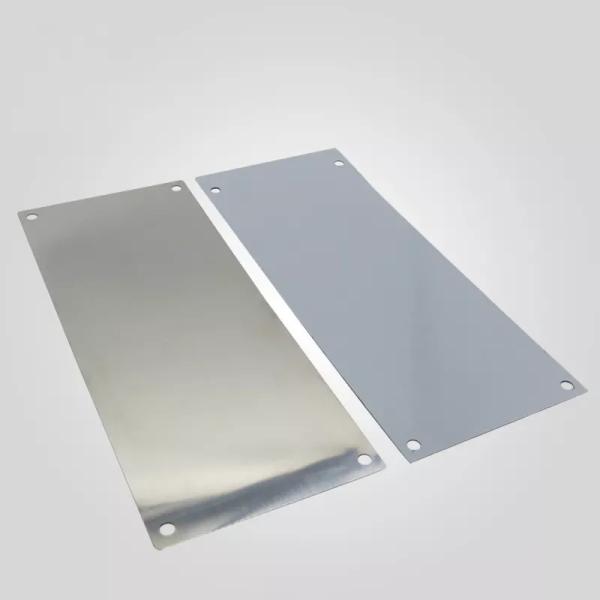

Pad Printing Thin Steel Cliche Plate for Pad Printer Machine

Features:
1,All plates are made of imported steel, high hardness, high density and high brightness.
2,Can be etched with high-definition pattern, long using life.
3,Various kinds, full range that covering plates of single side and both sides;
4. Strong anti-rust;
5 Flatness high, scraping clean;

Nowadays the cost of steel has really gone up hence most of companies find the cost of 10mm thick plates very high and they want thin steel plates.We also make thin steel plates, some sizes come in very high surface finish of ra value <0.05 - 0.09 mu.Both are extremely polished surface.The hardness of both type is 50 - 52 HRC.
Steel Material Comparison & Production Parameters

Material Carbon steel Stainless steel
Thickness

0.25mm

0.3mm

0.5mm

 0.25mm
Hardness HRC52+/-1 HRC52+/-1
Rust Resistance Ability AAA AAAAA
Common Size

100x200mm,100x215mm,100x216mm,

100x250mm,100x260mm,100x300mm,

100x350mm,100x400mm,120x250mm,150x300mm… …
Use for Printers

Apply to all kinds of various pad printers.
