PLC Control 3.8kw Heat Transfer Press Machine For 5 Gallon 20 Litre Bucket
PLC Control 3.8kw Heat Transfer Press Machine For 5 Gallon 20 Litre Bucket
PLC Control 3.8kw Heat Transfer Press Machine For 5 Gallon 20 Litre Bucket
PLC Control 3.8kw Heat Transfer Press Machine For 5 Gallon 20 Litre Bucket
PLC Control 3.8kw Heat Transfer Press Machine For 5 Gallon 20 Litre Bucket
PLC Control 3.8kw Heat Transfer Press Machine For 5 Gallon 20 Litre Bucket
PLC Control 3.8kw Heat Transfer Press Machine For 5 Gallon 20 Litre Bucket
PLC Control 3.8kw Heat Transfer Press Machine For 5 Gallon 20 Litre Bucket
Specifications
Brand Name :
HY
Model Number :
HY320H
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
10
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
30
Delivery Time :
30
Packaging Details :
Wooden case
Color :
Multi color bucket machine
Description

HY320H Full Servo Drive Heat Transfer Machine for Plastic Bucket

PLC Control 3.8kw Heat Transfer Press Machine For 5 Gallon 20 Litre Bucket

Product Description

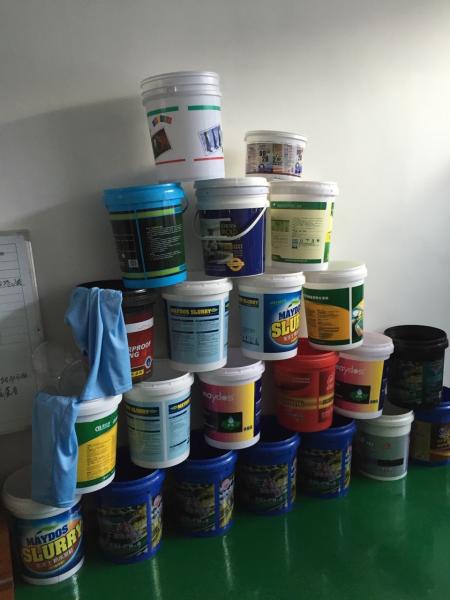

This servo system controlled heat transfer press machine is specially made for 5 gallon 20 litre bucket. Its high efficiency and stable performance are good for mass production. Products to print: plastic bucket, pail, 5 gallon bucket, diaper pail, plastic pail, paint bucket, 3 liter water bottle, 20L bucket, 20 litre plastic containers etc.

PLC Control 3.8kw Heat Transfer Press Machine For 5 Gallon 20 Litre Bucket

Specification

1. PLC control system, it is easy to set data and operate, machine can calculate running trail automatically by inputting 3 parameters, which are perimeter of top and bottom, bucket and height of bucket.

2. With air pressure sensor to make which more balanced.

3. Heat transfer pressure, temperature, speed and time are adjustable.

4. Adjustable with different angle and front-back position on bottom of mould.

5. Tension control system makes heat transfer film smooth but not folded.

6. High precise sensor combines with double times speed to collect film.

7. Pattern of heat transfer is stable and precise, especially suitable for bar code and OR code.

8. XYZ servo matches the taper and work track which enable photo to be heat transferred in a high accurate position.

9. Max. size of product:H280*Φ320mm

10. Speed of transfer:300-720pcs/h

11. Timing of transfer:4seconds/pc

12. Air consumption:0.6-0.8mpa

13. Power supply:220v 50hz 3.8kw 35A

14. Dimension:1600*1200*1900mm

15. Weight:780kgs
