Specifications
Brand Name :
HY
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
30
Delivery Time :
30 days

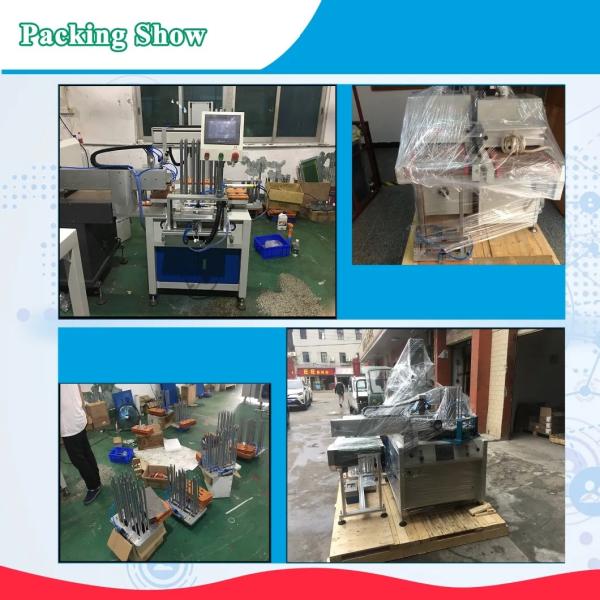

Packaging Details :
Wooden case
Color :
single color printing machine
Fryer :
UV screen printing machine
Function :
Automatic screen printer for ruler
Description

Automatic Plastic Ruler Screen Printing Machine with LED UV Curing System

Automatic Plastic Ruler Screen Printing Machine with LED UV Curing System

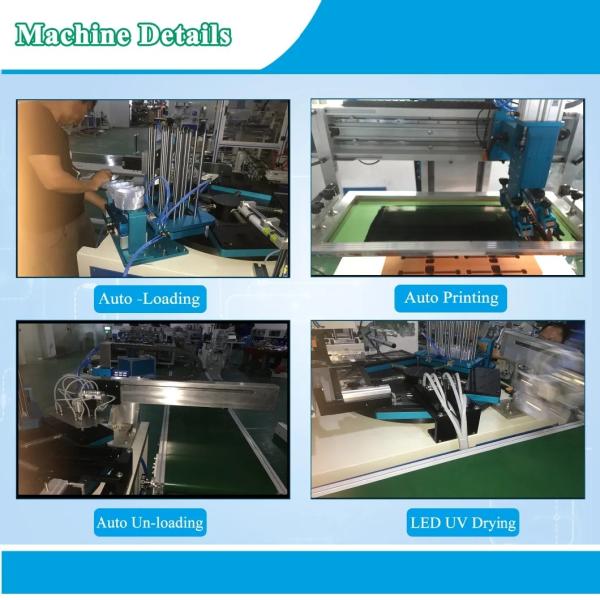

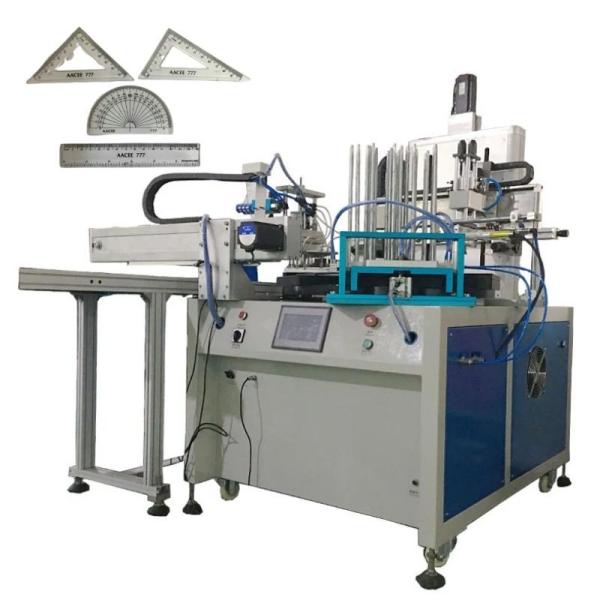

HY 300P/5 adopt PLC control system,human touch interface,high speed,automatic uploading and downloading with UVLED dryer;Good for rulers printing, 1200 print per hour, up to 4800P per hour~

Automatic Plastic Ruler Screen Printing Machine with LED UV Curing System

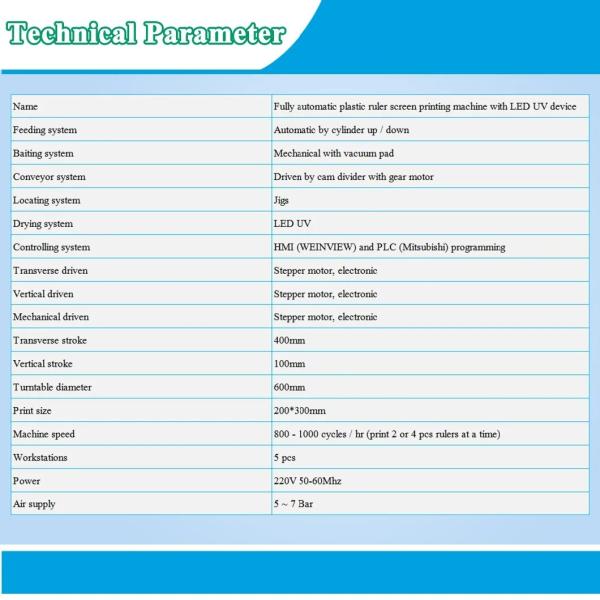

Main Parameter

1 Max Print Size 200mmx300mm
2 Max Frame Size 400mmx550mm
3 Print Accuracy ±0.05mm
4 Print Head Driven Method Stepping Motor
5 Machine Arm Driven Method Stepping Motor
6 Rotary table size Ø800mm
7 Rotary Table Number 5
8 Print Cycle 3 second
9 Production 1200 Print/Hour
10 Machine Size 1800mm*1200mm*1550mm
11 Air Pressure 0.4~0.6Mpa
12 Power 220V 50/60Hz
13 Dryer UVLED

Automatic Plastic Ruler Screen Printing Machine with LED UV Curing System

Machine structure

Machine Parts Item Name Brand
Rotary System Driver Stepping Motor DELTA
Guiding Divider TAIWAN
Printing System Driver Stepping Motor DELTA
Guiding Linear Guideway HIWIN
Control Method System PLC Mitsubishi
Pneumatic SMC SMC
Machine Arm Driver Stepping Motor DELTA
Guiding Linear Guideway HIWIN
Upload System Driver Cylinder SMC
Guiding Linear Guideway HIWIN

Automatic Plastic Ruler Screen Printing Machine with LED UV Curing SystemAutomatic Plastic Ruler Screen Printing Machine with LED UV Curing SystemAutomatic Plastic Ruler Screen Printing Machine with LED UV Curing SystemAutomatic Plastic Ruler Screen Printing Machine with LED UV Curing SystemAutomatic Plastic Ruler Screen Printing Machine with LED UV Curing System
