Cardboard Creasing Machine for Punching Manual Platen Die Cutting 5.5kw - 11kw
Cardboard Creasing Machine for Punching Manual Platen Die Cutting 5.5kw - 11kw
Cardboard Creasing Machine for Punching Manual Platen Die Cutting 5.5kw - 11kw
Cardboard Creasing Machine for Punching Manual Platen Die Cutting 5.5kw - 11kw
Cardboard Creasing Machine for Punching Manual Platen Die Cutting 5.5kw - 11kw
Cardboard Creasing Machine for Punching Manual Platen Die Cutting 5.5kw - 11kw
Cardboard Creasing Machine for Punching Manual Platen Die Cutting 5.5kw - 11kw
Cardboard Creasing Machine for Punching Manual Platen Die Cutting 5.5kw - 11kw
Specifications
Brand Name :
KECHENG
Model Number :
KC-ML1100/1200/1300/1500/1600
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Payment Terms :
L/C,TT
Delivery Time :
30-40 working days
Packaging Details :
plastic film packaging and carton
Name :
Die Cutting Creasing Machine
Condition :
New
Total power :
5.5kw - 11kw
Weight :
4500kg - 11000kg
Voltage :
380v,50Hz
Overall size :
1900*1800*1700mm - 2170*2560*2230mm
Description

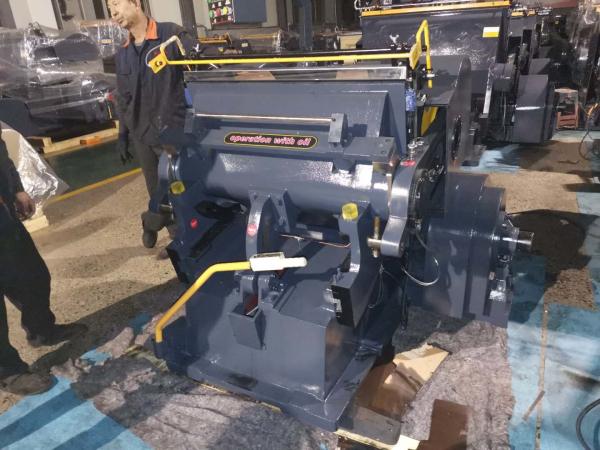

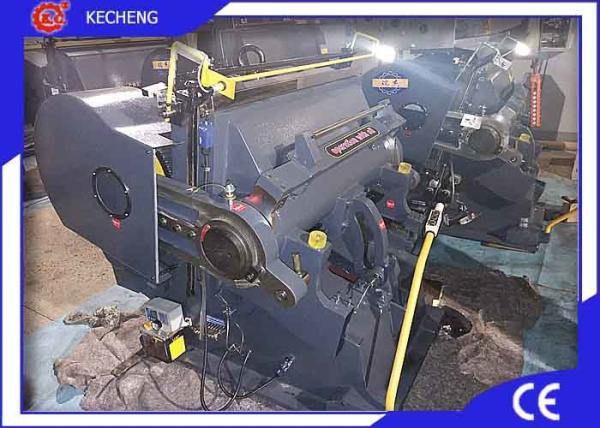

Manual Platen Die Cutting Creasing Machine for Cardboard Punching​

K.C uses the techlogic management to make all the procedure go well, so we can respond to clients needs rapid under the support of the experienced and professional team. ONE STOP solution service makes the clieints business easier.Thanks to the integraty of the service, manufacturing productivity and product quality, K.C. is growing by building the solid partner with clients and suppliers.In order to make sure the machine quality, the manufacturing standard must be complied with our company standard which beyond the common industrial standards. All the parts purchased are from the ourstanding and experienced supplier.

1) used for cardboard die cuttig and creasing,can make any shape you want

2) easy to operate

3) Four insurance parts to make the work secure

4) Running stable

Manual Feeding Four Security Parts Flatbed Paper board Die Cutting Creasing Machine designed for Die Cutting, Scoring and Creasing Work on Paper, Linoleum, Cardboard, Corrugated board, Fireboard, Cork, Leather, Plastic and PVC Materials etc.

Technologic parameter

Model KC-ML1100 KC-ML1200 KC-ML1300 KC-ML1400 KC-ML1500 KC-ML1600
Max working size 1100*800mm 1200*830mm 1300*920mm 1400*1000mm 1500*1050mm 1600*1250mm
Working speed 20+2 strokes/min 20+2 strokes/min 18+2 strokes/min 18+2 strokes/min 18+2 strokes/min 16+2 strokes/min
Length of creasing sheet <32m <35m <40m <45m <45 <50m
Total power 5.5kw 5.5kw 7.5kw 7.5kw 7.5kw 11kw
Weight 4500kg 4800kg 6000kg 6500kg 7000kg 11000kg
Overall size 1900*1800*1700mm 1900*2000*1700mm 2000*2400*1800mm 2000*2450*1900mm 2000*2500*1930mm 2170*2560*2230mm

Specifications

ML series paper creasing and die cutting machine combines functions of creasing and die-cutting. It is special equipment for creasing and cutting ordinary cardboard, corrugated board, plastic and leather, which is applicable to printing, packaging, decoration and plastic industries.

ML series paper creasing and die cutting machine is characterized by compact structure, fine workmanship, large pressure, high precision, easy operation, reliable performance, etc.

Features

1. Sliding bearing adopts high quality copper alloy, resisting and shock absorption.

2. High degree of force of the free-wheel, high pressure.

3. Use high level material integral casting for high intensity machine.

4. Single plate electromagnetic clutch is sensitive and reliable safety.

5. Single pressing, continuous pressing, adjustable delay pressing.

6. Operational height is reasonaby arranged. The opening angle of moving bed is optimum.

7. Reliable performance of safety protection system.

8. It could be equipped with inside or outside flexible frame and centralized oil filler.
