Specifications
Brand Name :
KCCHENG
Model Number :
KC-ML1500
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Payment Terms :
L/C,TT
Delivery Time :
30-40 working days
Packaging Details :
plastic film packaging and carton
Name :
Platen Die Cutting and Creasing Machine
Total power :
5.5kw - 11kw
Weight :
4500kg - 11000kg
Certificate :
CE
Working speed :
20+2 strokes/min , 18+2 strokes/min , 16+2 strokes/min
Overall size :
1900*1800*1700mm - 2170*2560*2230mm
Description

KC-ML1500 manual control cardboard platen die cutting and creasing machine

Technologic parameter

Model KC-ML1100 KC-ML1200 KC-ML1300 KC-ML1400 KC-ML1500 KC-ML1600
Max working size 1100*800mm 1200*830mm 1300*920mm 1400*1000mm 1500*1050mm 1600*1250mm
Working speed 20+2 strokes/min 20+2 strokes/min 18+2 strokes/min 18+2 strokes/min 18+2 strokes/min 16+2 strokes/min
Length of creasing sheet <32m <35m <40m <45m <45 <50m
Total power 5.5kw 5.5kw 7.5kw 7.5kw 7.5kw 11kw
Weight 4500kg 4800kg 6000kg 6500kg 7000kg 11000kg
Overall size 1900*1800*1700mm 1900*2000*1700mm 2000*2400*1800mm 2000*2450*1900mm 2000*2500*1930mm 2170*2560*2230mm
Features

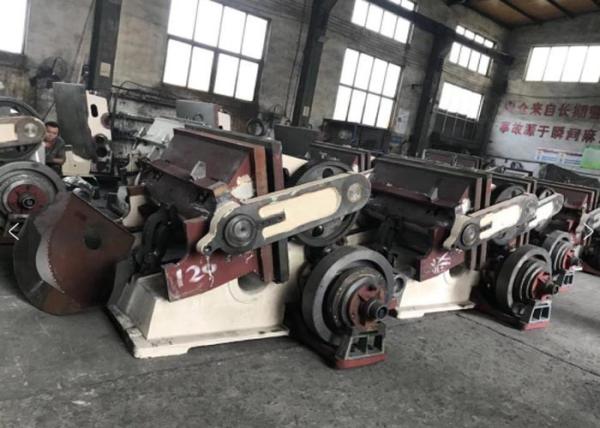

his machine is consist of machine frame, pressing frame, electromagnetic clutch transmission and electric control and mechanical counter etc. Motor in the right of machine holder drives the triangular belt to make the main axle rotate, with a pair of oblique tooth gears that drive the connection bar to reciprocate and swing to finish cutting and creasing.

A . Bottom holder section

  • Creasing device and cutting knife frame are fasten with pressing board
  • Machine frame have parallel guide, pressing frame arc guide reciprocate on it.
  • Pressing board equips steel board which make the paper layout
  • Press frame equips eccentric gears at the both sides, the distance between machine frame board and pressing frame board by adjust the eccentric gears.
  • Empty holder is equipped on the transverse bar which connects with eccentric knot. When the empty holder pull down, the distance between machine frame board and pressing frame board will become big, helpful to reduce the waste.

B . Clutch transmission structure

  • Transmission axle equips electromagnetic clutch which close and open to control the transmission axle move
  • End of the transmission axle has the square structure, which is convenient for spanner operation to rectify the machine and maintain.

C. Electric control section

Electric control box is on the machine frame, which equips counter, time-delay structure. Operation lever equips the control button: start button, stop button ,die cutting and creasing button.
