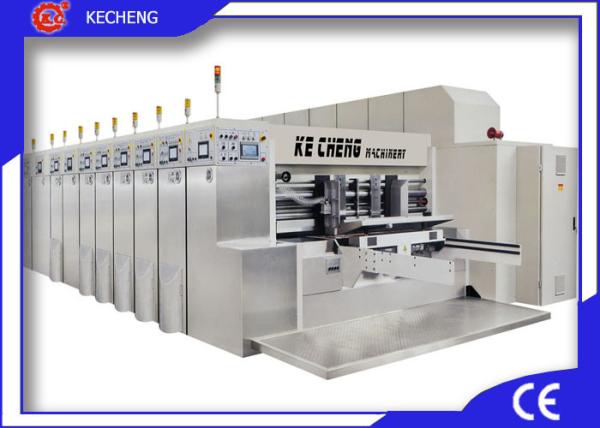

1224 Automatic Water Ink High Defination 6 Color Flexo HD Printer Die Cutter Machine

Technologic parameter

FEATURES

All the gears are made of 20 CrMnTi ,undergoes quenched and precise grinded for good printing and long life service

All the rollers undergo precise treatment,grinded and plated with rigid chorme and make balance rectification

Bearing has HRB,NTN,NSK for option

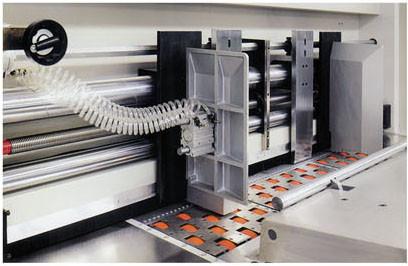

Feeder unit

1 Sun alike lead feeder makes cardboard feeding easily and stable, all the baffles adjusted by electric control

2 The air volume adjusted by manual according to different cardboard

3 Dedust system help remove the dust of cardboard surface to make the printing better

4 All the roller intervals are manual or electric control

Printer unit

1 Vacuum transfer

2 Doctor blade chamber ink distribution

3 Ceramic anilox roller

4 Rollers intervals adjusted by electric control

5 All the rollers are precisely grinded and plated with rigid chrome

5 Automatic zeroing

6 Automatic reposition after washing the printing plate during printing

7 Automatic ink washing system for option

Shining unit

1 Same with printer unit

IR Dryer

1 Vacuum transmission ensure printed paperboard smooth deliver

2 Paper jamming detector is equipped, easy for operation. If the paper is jammed, feeder will stop feeding paper automatically

3 High heating temperature to ensure quicken carton printing speed.

4 Computer set up the heating temperature, and the temperature can be adjusted depends on the speed of the machine.Heating temperature 5 displayed on the screen, and alarm can detect if the temperature is too high.

6 If the feeder unit stops, IR unit will stop as well to ensure safety.

Slotter unit(optional)

1 Precreasing wheel, creasing wheel and second creasing wheel make the creasing line formed well

2 Creasing wheel and slotting holder horizontal moving under PLC and touch screen control

3 Slotting holder moving via screw axle and linear guide rail

4 Single or double shaft slotting structure for option

5 Rollers interval adjusted by manual or electric control

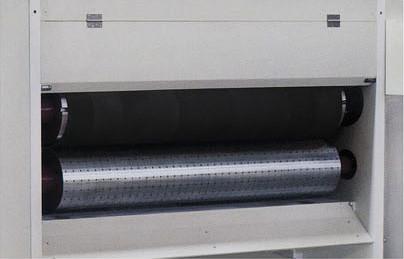

Die cutting unit

1 Side to side oscillation of anvil drum 50mm

2 Anvil trimming knife Installed for anvil cover treatment

3 Anvil cover brand for option

4 Rollers interval adjusted by manual or electric control

5 Servo driving

Stacker

1 Max stacking height 1600mm

2 Chain driving or hydraulic driving for option

3 Safety device installed to avoid the collection cabinet drop suddenly

4 Good quality convey belt for long time service
