Water Ink Corrugated Carton Flexo Printing Machine Lead Edge Feeding
Water Ink Corrugated Carton Flexo Printing Machine Lead Edge Feeding
Water Ink Corrugated Carton Flexo Printing Machine Lead Edge Feeding
Water Ink Corrugated Carton Flexo Printing Machine Lead Edge Feeding
Water Ink Corrugated Carton Flexo Printing Machine Lead Edge Feeding
Water Ink Corrugated Carton Flexo Printing Machine Lead Edge Feeding
Specifications
Brand Name :
KECHENG
Model Number :
KC-M1228
Certification :
CE
Place of Origin :
CHINA
MOQ :
1SET
Price :
Negotiated
Payment Terms :
L/C,TT
Supply Ability :
150 sets per year
Delivery Time :
45-60 working days
Packaging Details :
flim packaging and carton
Name :
Printer Slotter Die Cutter
Max feeding size :
1200*2900mm
Max speed :
100pcs/min
Registering :
+/-0.5mm
Min feeding :
1150*2800mm
gears :
steel or 20 CrMnTi for option
Description

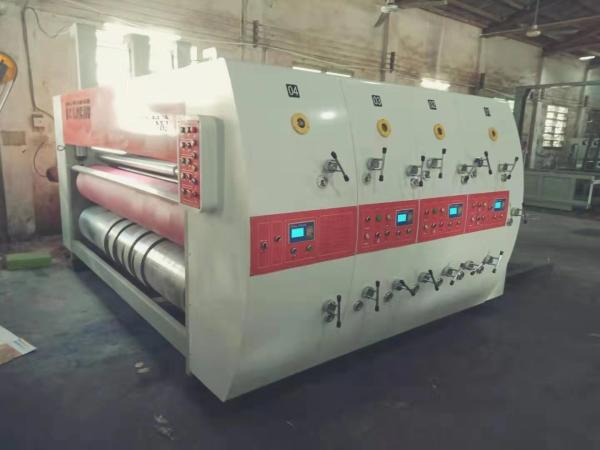

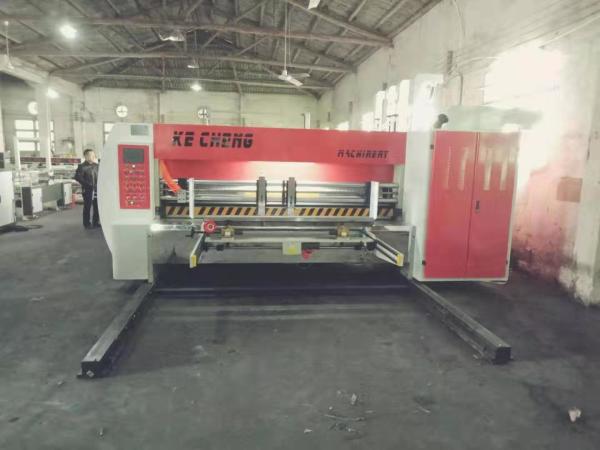

Lead Edge Feeding Corrugated Carton Making Machine Water Ink Printer Slotter Die Cutter

Lead edge feeding corrugated carton printer is the economic type we made.Top printng,roller transfer at the printing unit, rubber roller ink distribution. The wall thickness is 50mm,the speed is 100-150pcs/min according to the different model.

Technologic parameter

Model KC-M920 KC-M1224 KC-M1228 KC-M1628
Max feeding size 900*2100mm 1200*2500mm 1200*2900mm 1600*2900mm
Min feeding size 300*650mm 400*720mm 400*720mm 450*750mm
Max printing size 880*2000mm 1150*2400mm 1150*2800m 1550*2800mm
Skip feeding size 1100*2100mm 1400mm*2500mm 1400*2900mm 1800*2900mm
Max speed 150pcs/min 120pcs/min 120pcs/min 100pcs/min
Registering +/-0.5mm +/-0.5mm +/-0.5mm +/-0.5mm

Feeding unit

1 Sun alike lead feeder

2 The air volume can be adjusted to make cardboard feeding easily and stable

3 All the baffles adjusted by manual control(electric control for option)

Printer unit

1 Roller transfer

2 Rubber roller ink distribution for option

3 Steel anilox roller

4 Feeding rollers interval adjusted by manual control

5Printing rollers circular moving by electric control

6 Automatic zeroing

Slotter unit

1 Precreasing wheel and creasing wheel wheel make the creasing line formed well

2 Creasing wheel and slotting holder horizontal moving under manual control(electric control for option)

3 Single screw axle or 8 screw axle for guide plate movement for option

4 Slotting knife circular moving by manual or electric control

5 Single or double shaft slotting structure for option

Die cutting unit

1 Side to side oscillation of anvil drum 50mm

2 Anvil trimming knife Installed for anvil cover treatment

3 Anvil cover brand for option

4 Die cutter pressure controlled pneumatically

Stacker

1 Max stacking height 1600mm

2 Chain driving or hydraulic driving for option
