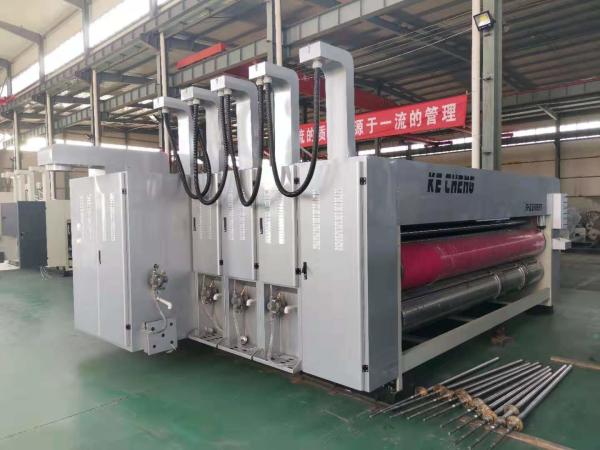

3 5 7 Ply Cardboard Printer Slotter Die Cutter / Carton Box Flexo Corrugated Machine
3 5 7 Ply Cardboard Printer Slotter Die Cutter / Carton Box Flexo Corrugated Machine
3 5 7 Ply Cardboard Printer Slotter Die Cutter / Carton Box Flexo Corrugated Machine
3 5 7 Ply Cardboard Printer Slotter Die Cutter / Carton Box Flexo Corrugated Machine
Specifications
Brand Name :
KECHENG
Model Number :
KC-M920/1224/1228/1628
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiated
Payment Terms :
L/C,TT
Supply Ability :
200 sets
Delivery Time :
60 working days
Packaging Details :
Plastic film packaging and cartons
Name :
Printing Slotter Die Cutter
Max feeding :
900*2100-1600*2900mm
Max printing :
850*2000-1550*2800mm
Gears :
45#,40Cr or 20CrMnTi
Bearings :
HRB
Max speed :
80-120pcs/min
Description

3/5/7 Ply Corrugated Cardboard Flexo Slotter Die Cutter for Carton Box

The machine is ecnomic model we made for corrugated carton box making companiese, which has KC-M920/1224/1228/1632/1836/2245 for option. Lead edge feeder improve the cardboard feeding speed,the whole machine is easy to operate,the max speed is 80-150 pcs/min according different cardboard size.

3 5 7 Ply Cardboard Printer Slotter Die Cutter / Carton Box Flexo Corrugated Machine

Technologic parameter

Model KC-M920 KC-M1224 KC-M1228 KC-H 1628
Max feeding size 900*2100mm 1200*2500mm 1200*2900mm 1600*2900mm
Min feeding size 300*650mm 400*720mm 400*720mm 450*750mm
Max printing size 880*2000mm 1150*2400mm 1150*2800m 1550*2800mm
Skip feeding size 1100*2100mm 1400mm*2500mm 1400*2900mm 1800*2900mm
Max speed 150pcs/min 120pcs/min 120pcs/min 100pcs/min
Registering +/-0.5mm +/-0.5mm +/-0.5mm +/-0.5mm
Slotting precise +/-1.5mm +/-1.5mm +/-1.5mm +/-1.5mm

All the gears are made of steel or 20 CrMnTi for option ,undergoes quenched and precise grinded for good printing and long life service

All the rollers undergo precise treatment,grinded and plated with rigid chrome and make balance rectification

Bearing has HRB,NTN,NSK for option

Feeding unit

1 Lead edge feeder

2 Air volume can be adjusted as per the different cardboard for easy feeding

3 Combined with printer or single unit working

Printer unit

1 Top printing

2 Roller transfer

3 rRubber roller ink distribution for option

4 Ceramic anilox roller or steel anilox roller for option

5 Feeding rollers interval adjusted by manual control

6 Automatic zeroing

7 Printing rollers circular moving by electric control

Die Cutter unit

1 Upper roller is anvil cover roller, down roller is die cutter roller

2 The die cutting pressure controlled pnuematically

3 Feeding roller interval adjusted by mnual control

4 Anvil cover roller lateral moving distance 40mm

Slotter unit

1 Precreasing wheel and creasing wheel wheel make the creasing line formed well

2 Creasing wheel and slotting holder horizontal moving under manual control(electric control for option)

3 Slotting knife circular moving by manual or electric control

4 Single or double shaft slotting structure for option

Stacker

1 Max stacking height 1600mm

2 Chain driving or hydraulic driving for option
