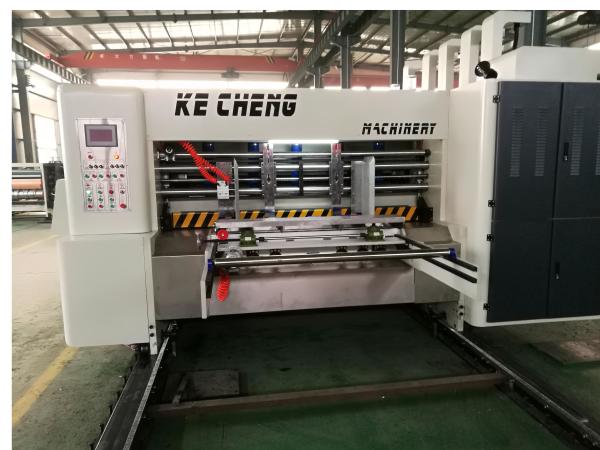

1224/1632 Top Printing Lead Edge Feeding Carton Box Flexo Printer Slotter Die Cutter Machine

Top printing carton box flexo printer slotter die cutter machine used for corrugated carton making companies, 1) the machine has different models for option as per the different cardboard size.2) this machine can combined with folder gluer as well. 3) The whole machine are functional and easy to operation,can make the work with higher efficiency.

Technologic parameter

FEATURES

All the gears are made of 20 CrMnTi ,undergoes quenched and precise grinded for good printing and long life service

All the rollers undergo precise treatment,grinded and plated with rigid chorme and make balance rectification

Bearing has HRB,NTN,NSK for option

Feeder unit

1 Sun alike lead feeder makes cardboard feeding easily and stable, all the baffles adjusted by electric control

2 The air volume adjusted by manual according to different cardboard

3 All the roller intervals are manual or electric control

4 Dedust system help remove the dust of cardboard surface to make the printing better

Printer unit

1 Roller transfer or vacuum transfer for option

2 Doctor blade chamber or rubber roller ink distribution for option

3 Ceramic anilox roller or steel anilox roller for option

4 Rollers intervals adjusted by manual or electric control

5 Automatic reposition after washing the printing plate during printing

6 Automatic ink washing system for option

Slotter unit

1 Precreasing wheel, creasing wheel and second creasing wheel make the creasing line formed well

2 Slotting holder moving via screw axle and linear guide rail

3Single or double shaft slotting structure for option

4 Rollers interval adjusted by manual or electric control

5 Die cutting hole installed for option

Die cutting unit

1 Side to side oscillation of anvil drum 50mm

2 Anvil trimming knife Installed for anvil cover treatment

3 Anvil cover brand for option

4 Rollers interval adjusted by manual or electric control

Stacker

1 Max stacking height 1600mm

2 Chain driving or hydraulic driving for option

3 Safety device installed to avoid the collection cabinet drop suddenly

4 Good quality convey belt for long time service
