2250 Chain Feeding Printer Slotter Die Cutter / Semi Auto 2 Color Carton Box Printing Machine
2250 Chain Feeding Printer Slotter Die Cutter / Semi Auto 2 Color Carton Box Printing Machine
2250 Chain Feeding Printer Slotter Die Cutter / Semi Auto 2 Color Carton Box Printing Machine
2250 Chain Feeding Printer Slotter Die Cutter / Semi Auto 2 Color Carton Box Printing Machine
2250 Chain Feeding Printer Slotter Die Cutter / Semi Auto 2 Color Carton Box Printing Machine
2250 Chain Feeding Printer Slotter Die Cutter / Semi Auto 2 Color Carton Box Printing Machine
Specifications
Brand Name :
KECHENG
Model Number :
KC-L2248
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiated
Payment Terms :
L/C,TT
Supply Ability :
300 sets per year
Delivery Time :
50 working days
Packaging Details :
Plastic film packaging and cartons
Name :
Bottom Printing Printer Gluer In Line
Max production speed :
40pcs/min
Max printing size :
2200*4800mm
Max feeding size :
2200*4900mm
Min feeding size :
700*850mm
Paperboard thickness :
2-15mm
Description

2250 Chain Feeding Semi-auto 2 Color Flexo Printer Slotter Machine

Technologic parameter

Mode KC-L 1224 KC-L1428 KC-L1630 KC-L1840 KC-L2248
Max production speed 60pcs/min 60pcs/min 60pcs/min 50pcs/min 40pcs/min
Max printing size 1200*2400mm 1400*2800mm 1600*3000mm 1800*4000mm 2200*4800mm
Max feeding size 1200*2500mm 1400*2900mm 1600*3100mm 1800*4100mm 2200*4900mm
Min feeding size 400*720mm 450*720 450*720 500*750mm 700*850mm
Paperboard thickness 2-11mm 2-11mm 2-11mm 2-15mm 2-15mm
Topping precise ≤±0.75mm ≤±0.75mm ≤±0.75mm ≤±0.75mm ≤±0.75mm
Slotting precise ≤±1.5mm ≤±1.5mm ≤±1.5mm ≤±1.5mm ≤±2mm
Max slotting depth 280mm 330mm 380mm 430mm 530mm

FEATURES

★Feeding Unit

1 It adopts hand-control chain feeding, stepless speed adjustment control

2 Optical-control counter presets ordered paper quantity

3 Workbench is connected with machine and equipped with a clutch to enable convenient flexographic plate registering

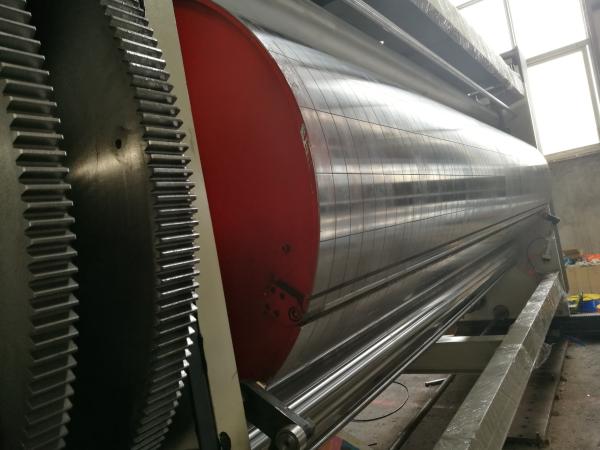

★Printing Unit

1 The interval between feeding rollers adopts crossing slide structure which adjusted by manual with distance of 12mm.

2 Printing roller plated with rigid chrome and grinded surface, balance rectification treatment for stable running.

3 Electric phase adjustment of 360° .

4 Horizontal moving by manual with distance of +5mm

6 Printing press roller plated with rigid chrome and grinded surface, balance rectification treatment for stable running.

7 Steel anilox roller

8 Rubber roller ink distribution

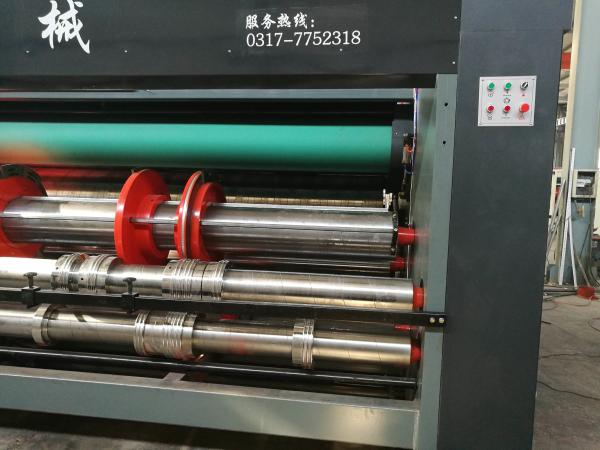

★Slotting Unit

1 Upper and down knife holder roller are plated with rigid chrome and grinded surface, balance rectification treatment

2 Creasing wheel and slotting knife holder move together by manual control

3 Slotting knife holder roller adopts electric phase adjustment of 360°.

4 Carton height and slotting knife horizontal moving adjusted by manual control
