2 Color Flexographic Box Printing Machine 920 Lead Edge Feeder Standard Speed
2 Color Flexographic Box Printing Machine 920 Lead Edge Feeder Standard Speed
2 Color Flexographic Box Printing Machine 920 Lead Edge Feeder Standard Speed
2 Color Flexographic Box Printing Machine 920 Lead Edge Feeder Standard Speed
2 Color Flexographic Box Printing Machine 920 Lead Edge Feeder Standard Speed
2 Color Flexographic Box Printing Machine 920 Lead Edge Feeder Standard Speed
Specifications
Brand Name :
KECHENG
Model Number :
KC-M920
Certification :
CE
Place of Origin :
CHINA
MOQ :
1SET
Payment Terms :
L/C,TT
Supply Ability :
150 sets per year
Delivery Time :
45-60 working days
Packaging Details :
flim packaging and carton
Name :
Printer Slotter Die Cutter
Max feeding size :
900*2100mm - 1600*2900mm
Max speed :
100pcs/min - 150pcs/min
Registering :
+/-0.5mm
gears :
steel or 20 CrMnTi for option
Description

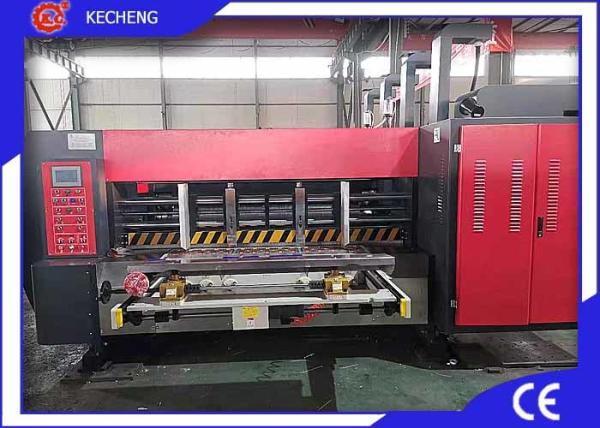

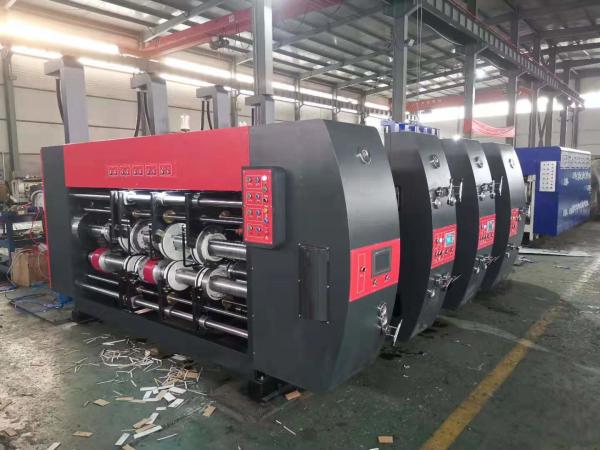

2 Color Flexographic Box Printing Machine 920 Lead Edge Feeder Standard Speed

Lead edge feeder standard printer slotter die cutter is a kind of economic type printing machine, top printing,rubber roller and anilox roller ink distribution. easy to operate. very suitable for the new start-up company.

Technologic parameter

Model KC-M920 KC-M1224 KC-M1228 KC-H 1628
Max feeding size 900*2100mm 1200*2500mm 1200*2900mm 1600*2900mm
Min feeding size 300*650mm 400*720mm 400*720mm 450*750mm
Max printing size 880*2000mm 1150*2400mm 1150*2800m 1550*2800mm
Skip feeding size 1100*2100mm 1400mm*2500mm 1400*2900mm 1800*2900mm
Max speed 150pcs/min 120pcs/min 120pcs/min 100pcs/min
Registering +/-0.5mm +/-0.5mm +/-0.5mm +/-0.5mm

All the gears are made of steel or 20 CrMnTi for option ,undergoes quenched and precise grinded for good printing and long life service

All the rollers undergo precise treatment,grinded and plated with rigid chorme and make balance rectification

Bearing has HRB,NTN,NSK for option

Feeder uint

1 Sun alike lead feeder makes cardboard feeding easily and stable, all the baffles adjusted by manual control

2 Combined with first printing unit

3 Air suction volume can be adjusted by manual control.

Printer unit

1 Top printing

2 Roller transfer

3 Doctor blade chamber or rubber roller ink distribution for option

4 Ceramic anilox roller or steel anilox roller for option

5 Feeding rollers interval adjusted by manual control

6 Automatic zeroing

7 Printing rollers circular moving by electric control

Slotter unit

1 Precreasing wheel and creasing wheel wheel make the creasing line formed well

2 Creasing wheel and slotting holder horizontal moving under manual control(electric control for option)

3 Slotting knife circular moving by manual or electric control

4 Single or double shaft slotting structure for option

Die cutting unit

1 Side to side oscillation of anvil drum 50mm

2 Anvil trimming knife Installed for anvil cover treatment

3 Anvil cover brand for option

Stacker

1 Max stacking height 1600mm

2 Chain driving or hydraulic driving for option
