KC-PG1224 Automatic 4 Color Bottom Printing Printer Slotter Die Cutter Gluer In Line

Technologic parameter

Features

BOTTOM PRINTING PRINTER

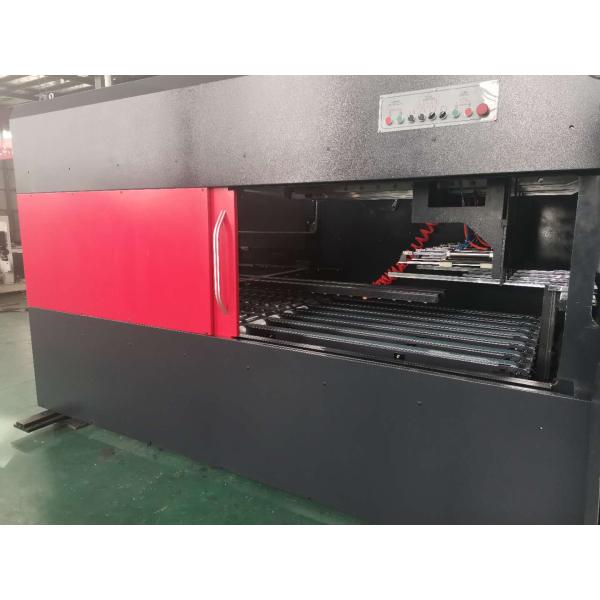

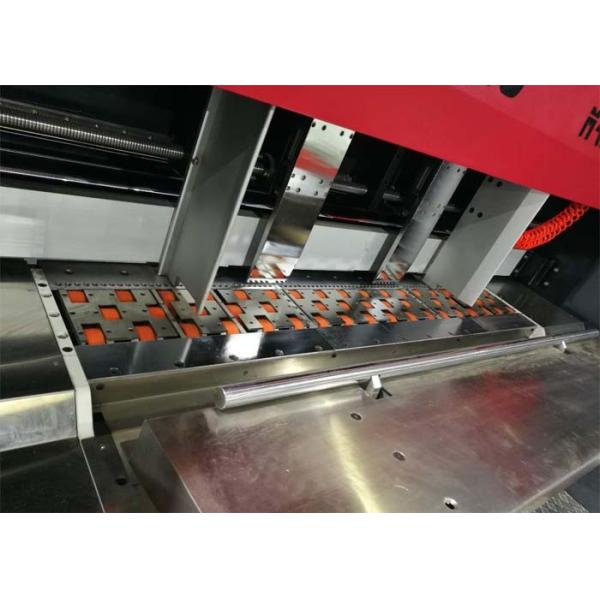

1 Sun alike lead feeder makes feeding easily and stable,all the baffles adjusted by electric control

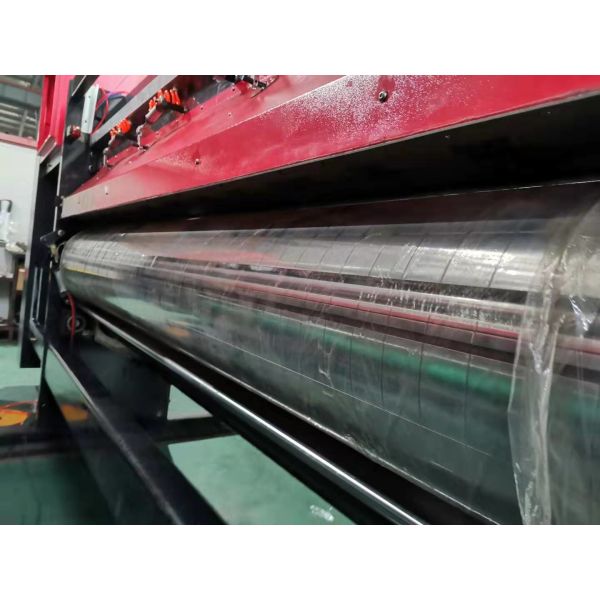

2 All the rollers undergo precise treatment,grinded and plated with rigid chrome and make balance rectification

3 All gears are made of 20CrMnTi,undergoes quenched and precised grinded for good printing, long life service and low running noise.

4 All the intervals adjusted by PLC and touch screen,easy to operate

5 Roll to roll transfer or vacuum transfer for operation at printing unit

6 Registering:+/-0.5mm

7 Doctor blade chamber or rubber roller ink distribution for option

8 Automatic zeroing among the unts of feeding,printing,slotting and die cutting

9 Automatic reposition after washing the printing plate during printing

10 Pre-creasing wheel,big creasing wheel and second creasing wheel at the slotting unit make the cardboard creasing better for folding

11 Steel cast slotting holder with linear guide rail and gear rail work together make slotting knife and cresing wheel move precise and smooth.

FOLDER GLUER

1 Gluer speed sychorized with printer

2 Second creasing wheel make the creasing line better for folding

3 Upper and down belt extension can be adjusted as per different cardboard

4 Rectification structures avoid joint forming the fish tail

5 Inserting type collection or Drop type collection for option

BUNDLER(OPTION)

1 Connect with folder gluer

2 Can move in lateral direction

3 Pneumatic flapping structure make the carton tidy and easy to bundle

4 Special string mouth design, makes the string output smooth and never broken

5 Easy to maintain and operate

6 Bundling speed 15-20 bundles per minute.
