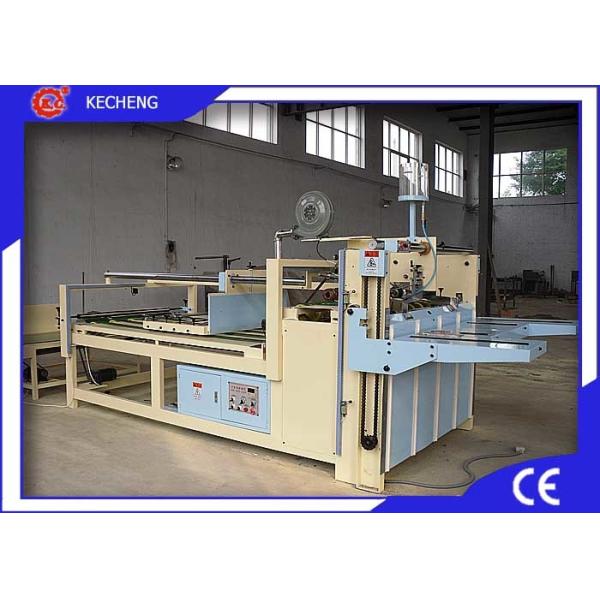

Manual Feeding 2800mm Semi Automatic Folder Gluer Machine
Manual Feeding 2800mm Semi Automatic Folder Gluer Machine
Specifications
Brand Name :
KECHENG
Model Number :
KC-BZX2800
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 Sets
Price :
Negotiated
Payment Terms :
TT,L/C
Supply Ability :
200 sets/year
Delivery Time :
30 working days
Packaging Details :
plastic film packaging and cartons
Name :
Carton Folder Gluer
Speed :
40-50pcs/min
Application :
Carton Box Making
Max feeding size :
1515*2800mm
Min Feeding :
300*800mm
Power :
3Kw
Description

Semi Automatic Manual Feeding Carton Folder Gluer

Technology parameter

Model RC-2800
Max size(L+W)*2 2800mm
Min size(L+W)*2 800mm
Max size(Cover+H)*2 1515mm
Min size(Cover+H)*2 300mm
Height of feeding 900mm
Production speed 30-40pcs/min
External size(L*W*H) 4500*2100*1600mm
Power 3Kw

Features

Feeding table

1 Operated manually or automatically, photoelectric sensor to ensure the feeding table height is always in the set position, high sensitivity;

2 The paper feed platform lifting driving motor with brake function, not fall, ensure the safety of operators.

Front feeding

1 Paste round, made of copper and stainless steel material, will not rust

2 Planar corrugated belt, to prevent the board down

3 Paper feeding wheel on the abrasion resistant rubber, ensure the feeding accuracy

4 Gluing wheel on the single axis manual shift, ensure the light shift

Middle part feeding

1 Photoelectric sensor adjustment board level, high sensitivity, ensure the storage quantity

2 Board size using the uniaxial electric adjustment

3 Baffle position manual adjustment

4 Planar corrugated belt, to prevent the board down

5 Photoelectric sensor, high sensitivity, ensure accurate recording box number

Finished box output

1 The manual adjustment of the carton size, simple operation

2 Set number, automatic operation, automatic stop

3 Planar corrugated belt
