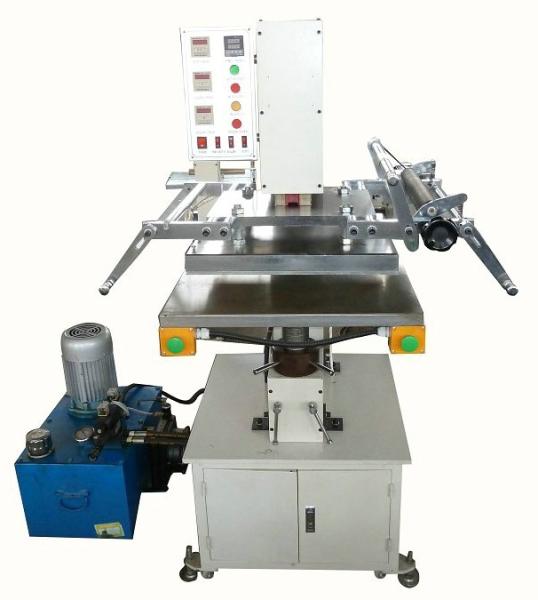

Large Pressure Embossing and Hot Stamping Machine
Product parameters:
Quality / Safety Certification: ISO9001-2000

Technical parameters:
Model: H-TCH-500
1. Power Rate: 220V 50HZ
2. Stamping area: 300 * 400mm;400*400mm;400*500mm
3. Table Size: 500 * 420mm
4. Stamping head stroke: 60mm (longer can be customized)
5. Maximum stamping speed: 1200PCS / H
6. Heating Power: 1600W
7. Main Motor: 500W
8. Hydraulic output: 12mPA
9. Stamping pressure: 20T (40 tons is optional)
10. Temperature range, room temperature -399 ° C
11. Hydraulic capacity: 25L
12. Volume foil Motor Power: 25W
13. Weight: 350Kg
14. Overall dimensions: 850 * 800 * 1570mm
15. Packing dimension: Main machine:1050*1050*1800mm; Pump:650*700*950mm


Model: H-TCH-500-40T
1. Power Rate: 220V 50HZ
2. Stamping area: 300 * 400mm;400*400mm;400*500mm
3. Table Size: 500 * 420mm
4. Stamping head stroke: 60mm (longer can be customized)
5. Maximum stamping speed: 1200PCS / H
6. Heating Power: 1600W
7. Main Motor: 500W
8. Hydraulic output: 12mPA
9. Stamping pressure:40T
10. Temperature range, room temperature -399 ° C
11. Hydraulic capacity: 25L
12. Volume foil Motor Power: 25W
13. Weight: 350Kg
14. Overall dimensions: 850 * 800 * 1570mm

Advantages:
1. Electrical control, simple operation.
2. Hydraulic power, pressure, balance constantly.
3. Toggle mechanism design and high efficiency.
4. Working table stroke adjustable, convenient of stamping parts in different heights.
5. Stamping pressure, temperature and speed adjustable.
6. Automatic feeder, foil collecting adjustable.

Product Description:
Widely used in paper, cardboard, leather, plastic, PVC, wood and other materials flat stamping, embossing, baked pasted and so on.
Hydraulic Hot Stamping Machine enjoys more pressure for assure the machine's perfect stability during the operation and it is ideal for those larger printing size and embossing quailty.
