High Grade Dutch Weave Micron Stainless Steel Wire Mesh Chemical Filtering
High Grade Dutch Weave Micron Stainless Steel Wire Mesh Chemical Filtering
High Grade Dutch Weave Micron Stainless Steel Wire Mesh Chemical Filtering
High Grade Dutch Weave Micron Stainless Steel Wire Mesh Chemical Filtering
High Grade Dutch Weave Micron Stainless Steel Wire Mesh Chemical Filtering
High Grade Dutch Weave Micron Stainless Steel Wire Mesh Chemical Filtering
Specifications
Brand Name :
COMESH
Model Number :
CO-Hel
Certification :
FDA
Place of Origin :
China
MOQ :
30 meters
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
3000 meters per month
Delivery Time :
15- 20 days
Packaging Details :
plywood case
application :
Filtration and Separation Fireplace Screen
features :
good oxidation resistance ,corrosion resistant
certificate :
FDA
mesh count :
1-635 mesh
Description

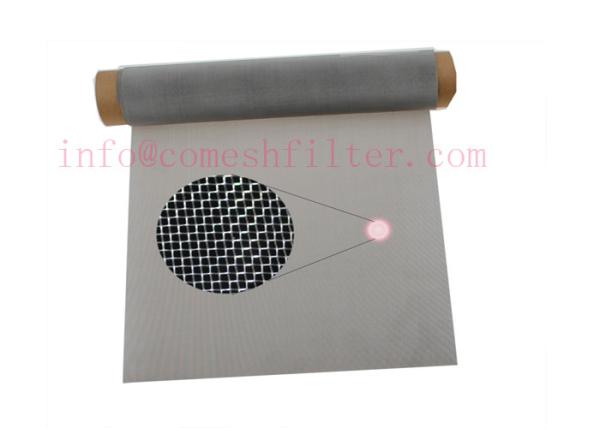

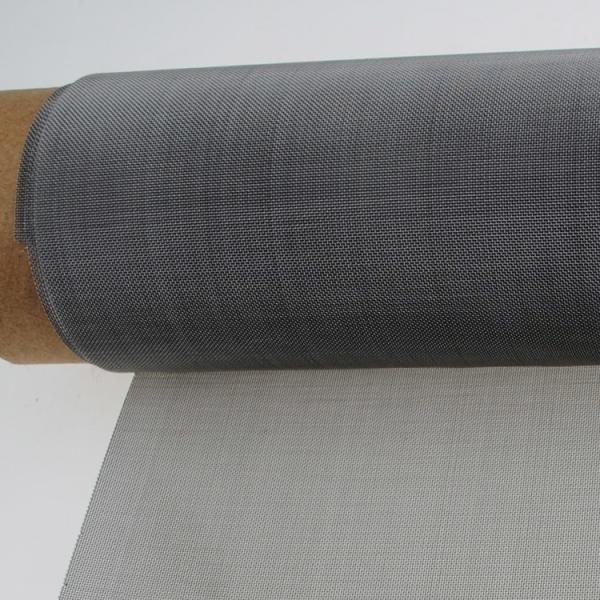

High Grade Dutch Weave Stainless Steel Micron Wire Mesh ,chemical filtering

Stainless Steel Dutch weave Wire mesh ,it is used for high pressure filtration industries,such as chemical,petroleum,aerospace and so on

Features:

stainless steel is the most widely available of all stainless steels in the wire mesh industry.

non-magnetic in the annealed condition

heat resistant

corrosion resistant

applications:

General industrial use
Mining
Quarrying
Beer brewing
Water filtration
Particle separation
Automotive
Basket fabrication
Refinery & oil field
Aerospace
Food processing
Scientific & laboratory use

Spefications:

Stainless Steel Dutch Weave Wire Mesh
Weave Type Mesh Count Warp Wire
in Inches		 Shute Wire
in Inches		 Absolute
Micron Rating		 Nominal
Micron Rating		 Weight
Per 100 sq.'
PDW 8x20 0.014 0.0126 330-350 280 49
PDW 12x64 0.024 0.0165 270-290 200 84
PDW 14x88 0.02 0.013 220-240 150 75
PDW 16x80 0.0196 0.0134 225-235 140 79
PDW 24x110 0.015 0.01 115-125 80 55
PDW - 24x128 2 x .010 0.004 110-120 75 34
PDW 30x150 0.009 0.007 110-112 63 33
PDW - 30x150 2 x .009 .007" 95-113 60 33
PDW 40x200 0.007 0.0055 70-75 55 27
PDW 50x250 0.0055 0.0045 58-63 40 22
PDW 80x400 0.005 0.003 40-45 35 17
TDW 30x250 0.01 0.008 110-120 53 66
TDW 80x700 0.004 0.003 35-40 25 25
TDW 120x400 0.004 0.0025 50-55 40 15
TDW 165x800 0.0028 0.002 25-28 15 14
TDW 200x600 0.0024 0.0018 30 20 10
TDW 165x1400 0.0028 0.0016 16-20 10 14
TDW 200x1400 0.0028 0.0016 12-14 5 15
TDW 325x2300 0.0014 0.001 8-9 2 10
TDW 400x2800 0.001 0.0008 6-7 1 8

High Grade Dutch Weave Micron Stainless Steel Wire Mesh Chemical Filtering

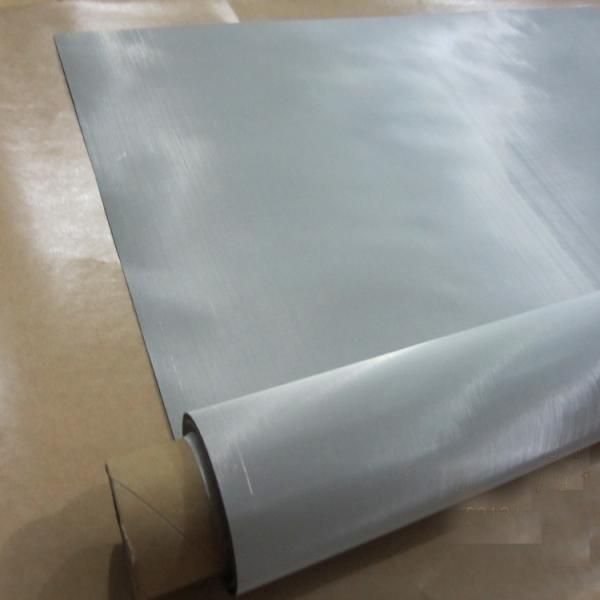

big storage of dutch weave wire mesh:

High Grade Dutch Weave Micron Stainless Steel Wire Mesh Chemical Filtering
