2.0mm Stainless 304 Steel Mesh Conveyor Belt Eye Link
2.0mm Stainless 304 Steel Mesh Conveyor Belt Eye Link
2.0mm Stainless 304 Steel Mesh Conveyor Belt Eye Link
2.0mm Stainless 304 Steel Mesh Conveyor Belt Eye Link
2.0mm Stainless 304 Steel Mesh Conveyor Belt Eye Link
2.0mm Stainless 304 Steel Mesh Conveyor Belt Eye Link
2.0mm Stainless 304 Steel Mesh Conveyor Belt Eye Link
2.0mm Stainless 304 Steel Mesh Conveyor Belt Eye Link
Specifications
Brand Name :
COMESH
Model Number :
HE0405
Place of Origin :
China
MOQ :
5 meter
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
200 meter per week
Delivery Time :
in 10- 15 days after payment
Packaging Details :
pack eye link conveyor belt with plywood case to make sure shippment safty
material :
stainless steel 304 316
application :
tunnel freezing dryer baking freezer food processing
features :
heavy loading heat resistant corrossion resistant
Eye link wire :
1.5mm,2.0mm,3.0mm
opening size :
can be customized as per requirement
sample :
supplied
Description

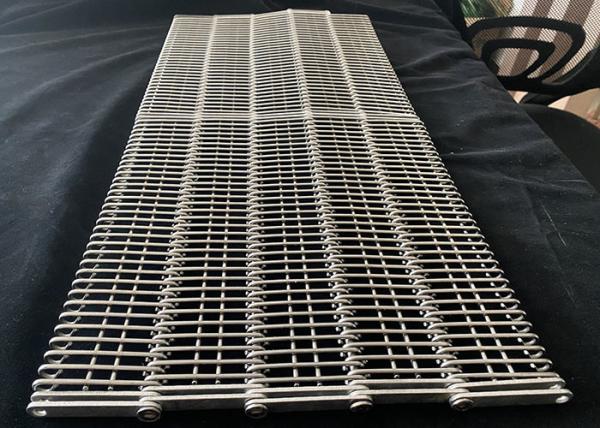

Stainless Steel 304 Eye Link Wire Ring Conveyor Mesh Belts for tunnel freezing dryer baking freezer food processing

Eye link Conveyor belts are composed from eye links which are put on cross rods,The weight of the belt can be kept relatively low.Process fluids and gasses can go easily through the belt and the belt is easy to clean,repair and positively driven by means of sprockets or driving drum.It is possible to use relatively small diameters.This all adds to a perfect belt run without steering problems.

Applications :

  • Freezing
  • foundry
  • quench tanks
  • dehydrantion pasteur zors
  • drying
  • steel blast sieving
  • sterilizer
  • washing machines
  • packing machines

2.0mm Stainless 304 Steel Mesh Conveyor Belt Eye Link

Specifications:

Name Eye link belt
Chain Pitch 25.4mm/31.75mm/38.1mm/50.8mm/63.5mm/76.2mm
Materials SS201,SS304,SS316
Spiral pitch 2.4-100mm
Wire diameter 1.2mm-3mm
Rod diameter 5-12mm

Drawing:

2.0mm Stainless 304 Steel Mesh Conveyor Belt Eye Link

2.0mm Stainless 304 Steel Mesh Conveyor Belt Eye Link
