Industrial Tunel Furnace Metal Stainless Steel 304 Baffle Plate Link Chain Perforated Plated Conveyor Mesh Belt ss316 for iqf

Plate belt is a very robust belt that is made of stainless steel and driven by sprocket. Perfect for conveying small products, smooth running, easy to maintain, durable, constructed of plates or hanges linked together by means of cross rods. The belt is almost always equipped with side chains. The chains are secured by a ring welded at the cross rods ends

Plate link conveyor belts are very robust, positive chain driven belts for medium to heavy duty applications. Fformed from a series of castellated plates rolled to form hinges, linked with cross rods which pass through the hinge points and side chain.

standard pitches		25.4, 31.75, 38.1 and 63.5.
thicknesses		from 1.5 mm to 6 mm
Side plate height(mm)		38.1, 50.8, 76.2, 101.6 or 152.4
Side plate thickness (mm)		1.5, 2.0 or 3.0

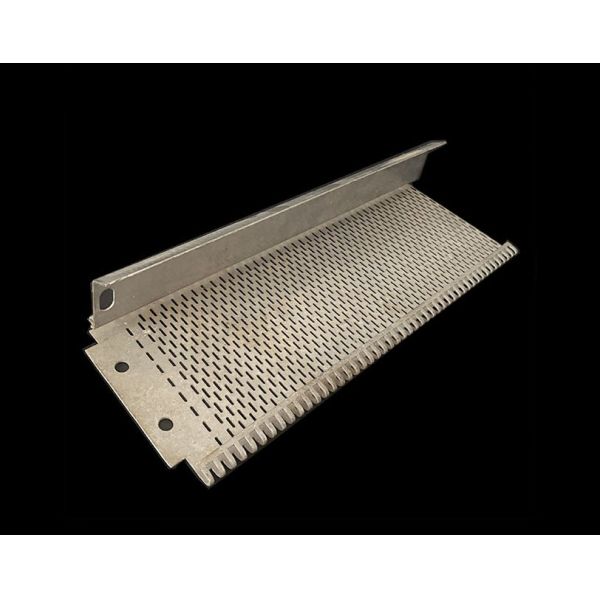

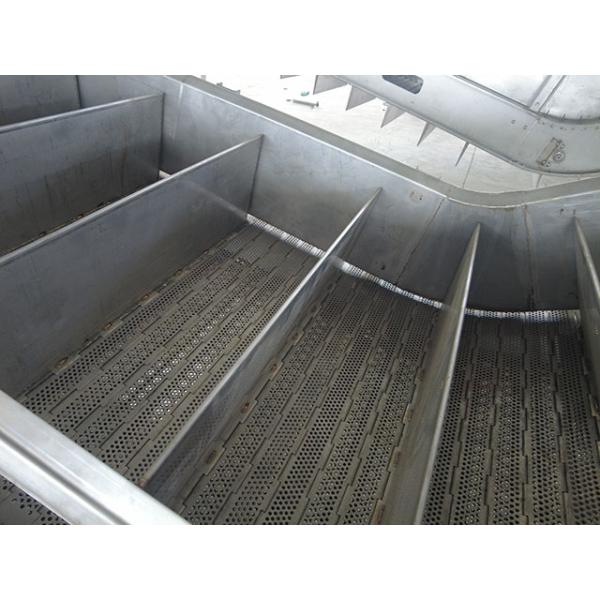

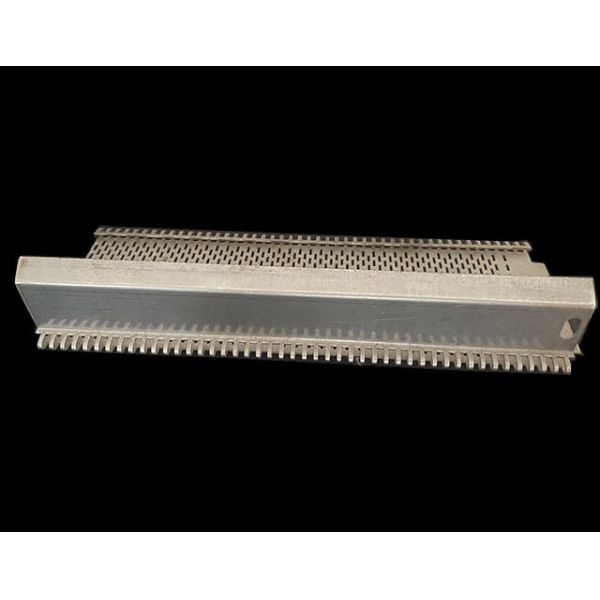

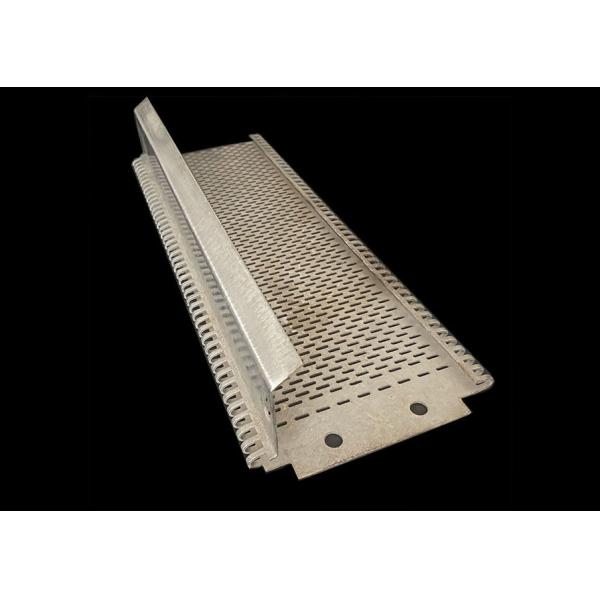

Stainless steel plate conveyor belt	Perforated plate belt	Perforated plate belt with horizontal strip hole	Convex plate belt with transverse baffle and side plate

Features of baffle plate conveyor belt mesh:

• All specifications available can be supplied with side plates and cross flights in various combinations of height and design, to your specification enabling elevation or product separation as required by the application
• Side Chains for Positive Drive
• Many kinds of specifications available can be supplied with side plates and cross
• flights in various combinations of height and design, to your specification enabling elevation or product separation as required by the application
• extensive range of sprockets with these specifications can be supplied
• Perforations are available on some slat sizes for applications requiring drainage such as swarf and chip removal and recycling
• Designed for high load capacity

Application of industrial tunel furnace metal plate conveyor belt:

• Transport
• Drainage
• Sorting
• Elevating
• De-Elevating
• Waste Treatment
• Blanching
• die-casting
• Presswork
• scrap removal
• component handling
• swarf and chip removal
• heat treatment
• low temperature ovens
• cooling, drying and recycling.
