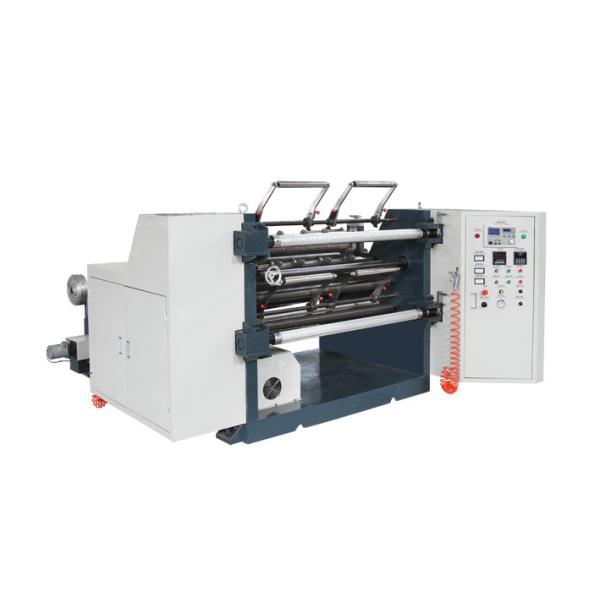

WFQ-A Series Computer control Horizontal Type Paper Roll Slitting Rewinder Machine
WFQ-A Series Computer control Horizontal Type Paper Roll Slitting Rewinder Machine
WFQ-A Series Computer control Horizontal Type Paper Roll Slitting Rewinder Machine
WFQ-A Series Computer control Horizontal Type Paper Roll Slitting Rewinder Machine
WFQ-A Series Computer control Horizontal Type Paper Roll Slitting Rewinder Machine
WFQ-A Series Computer control Horizontal Type Paper Roll Slitting Rewinder Machine
Specifications
Place of Origin :
Paper Roll Slitting Rewinder Machine made in China
Brand Name :
YONGYI's Paper Roll Slitting Rewinder Machine
Certification :
CE of Paper Roll Slitting Rewinder Machine
Model Number :
WFQ-700A Paper Roll Slitting Rewinder Machine
Rated Power :
2.0kw
No-Load Rotational Speed :
180m/min
Saw Blade Diameter :
1000mm
Max. Cutting Depth :
0-450gsm
Application :
automtic
Dimensions :
2300×2200×1500mm
Weight :
1800kg
MOQ :
1 set
Price :
8000USD
Packaging Details :
Use in stretch film package, or wooden rack
Delivery Time :
within 25days delivery
Payment Terms :
TT
Supply Ability :
25sets/month
Type :
Paper Roll Slitting Rewinder Machine
Description

Application
This machine is suitable for separating and cutting such various roll materials as BOPP, PET,

CPP, CPE, PVC, aluminum foil and paper, etc. And can cut edge, separate and cut material

according to different requirements during production.

Feature
1. This machine install a round knife device, it can slit the rolls paper within 350g/ ㎡.

2. Independent master control screen, more flexible and even easier operation.

3. Automatic deviation-rectifying of releasing, photoelectric eye is suitable for tracking the edge and color of transparent

material.
4. Releasing tension adopts magnetic powder clutch control.
5. Rolling adopts magnetic clutch control.
6. Automatic slitter edge blowing-inhaling device.
7. Automatic meter counting of material moving length.

Main Technical Specification

Model

WFQ-700A

WFQ-1100A

Suitable material

Fabric, PP, BOPP, Paper, PE, aluminum foil,etc

Max. diameter of unwind

1000mm

1000mm

Max width or unwind roll

600mm

1100mm

Paper inner Dia

76mm

76mm

Max. cutting width

20-700mm

20-1200mm

Machine speed

160m/min

160m/min

Slitting speed

150m/min

150m/min

Rewind diameter

600mm

600mm

Main motor

2.0kw

3.5kw

Accurate of adjustment

±0.5mm

±0.5mm

Total power

5.5kw

7.5kw

Weight

1800kg

2000kg

Overall size

2300×2200×1500mm

2300×2400×1500mm

WFQ-A Series Computer control Horizontal Type Paper Roll Slitting Rewinder Machine


WFQ-A Series Computer control Horizontal Type Paper Roll Slitting Rewinder Machine

WFQ-A Series Computer control Horizontal Type Paper Roll Slitting Rewinder Machine
