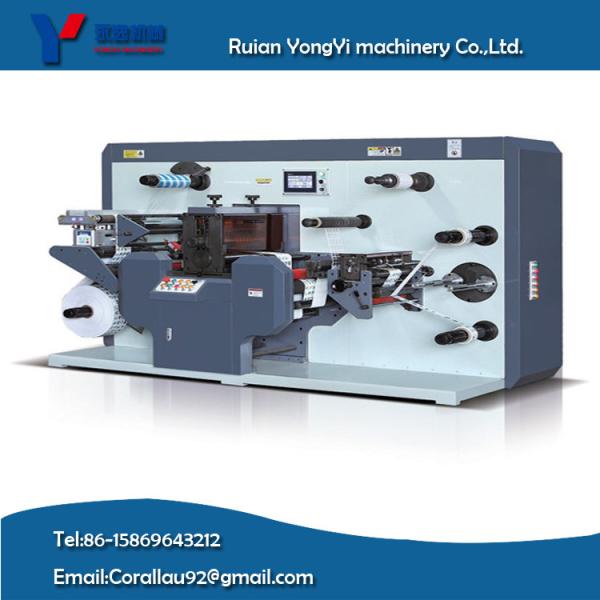

Type Intermittent Full Rotary Die-Cutting Machine (YY-330)
Type Intermittent Full Rotary Die-Cutting Machine (YY-330)
Specifications
Place of Origin :
ZHEJIANG,CHIAN
Brand Name :
YONGYI
Certification :
CE
Model Number :
YY-330
Rated Power :
8kw
No-Load Rotational Speed :
300Cyles/min(65meters/min)
Saw Blade Diameter :
330mm×320mm
Application :
automtic
Dimensions :
2900mm×1200mm×1500mm
Weight :
2500KG
MOQ :
1SET
Price :
1000-120000USD
Packaging Details :
Use in stretch film package, or wooden pack
Delivery Time :
within 25days delivery
Payment Terms :
TT
Supply Ability :
10sets/month
Type :
Label die cutting machine
Description

intermittent full printed label rotary die cutting machine is designed for the label converting and finishing process,is able to work in both semi rotary(Intermittent) and fully rotary mode.Modular designs with many functions optional,Inkjet press platform,flexographic UV(Varnishing,Cold foil),Die cutting,Slitting,Sheeting.etc.The machine shows great effort in humanity design and friendly operating.

Standard Unit:
(Unwinder--Web Guider--Die Cutter--Slitter/Rewinder)

Machine parameter

Max Speed

300Cyles/min(65meters/min)

Accuracy of Cutting

±0.15mm

Max Die Cutting Area

330mm×320mm (L×W)

Paper Width

80mm---330mm

Max Unwinding Dia.

φ700mm(about 2000Meters)

Max Rewinding Dia.

φ700mm(about 2000Meters)

Magnetic Cylinder

120Teeth 1/8 “CP(Standard)

Cylinder range

55T~160T

Length of Die Cutting

50mm~330mm

MOTOR Power

8 KW

UV POWER(KW)

Inkjet:4.8 Cold stamping:7.0

Overall Diameter(L×W×H)

2900mm×1200mm×1500mm

weight

2500K
