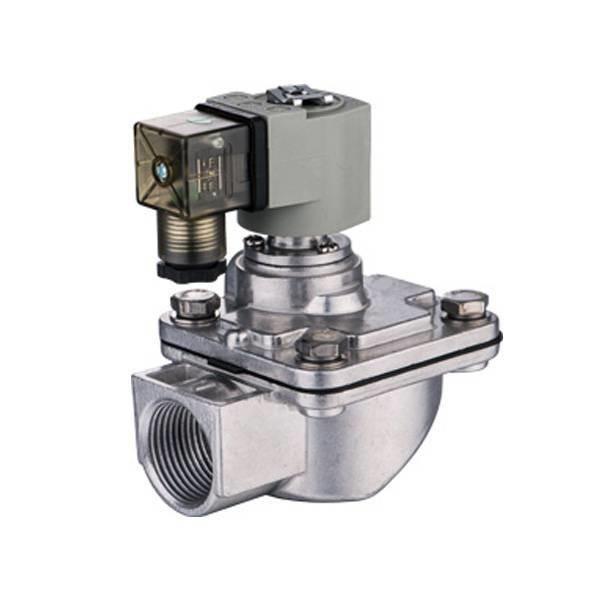

G Type Right Angle Pluse Valve
G Type Right Angle Pluse Valve
Specifications
Product Code :
DTG-Z-15,DTG-Z-25,DTG-Z-35,DTG-Z-40S,DTG-Z-50S,DTG-Z-62S,DTG-Z-76S
Product Parameters Model :
DTG-Z-15,DTG-Z-20,DTG-Z-25,DTG-Z-35,DTG-Z-40S,DTG-Z-50S,DTG-Z-62S,DTG-Z-76S
Working Pressure :
0.3-0.8MPa
Environment Temperature :
-5～55℃
Relative Humidity :
<85%
Use Medium :
Dry, clean, compressed air
Electric Pressure :
AC100V/AC220V/DC24V
Diaphragm Life :
Injection at 1 million or more
Nominal Diameter :
Φ15,Φ20,Φ25,Φ35,Φ40,Φ50,Φ62,Φ76
FOB Price :
negotiation
Min.Order Quantity :
10PCS
Supply Ability :
10000 Piece/Pieces per Month
Port :
NingBo,ShangHai
Payment Terms :
T/T,L/C,PAYPAL
Description

Product Detail

Product Tags

Drder Code
G Type Right Angle Pluse Valve
Specifications

G Type Right Angle Pluse Valve
DTG-Z-15		 G Type Right Angle Pluse Valve
DTG-Z-25		  G Type Right Angle Pluse Valve
DTG-Z-35
 G Type Right Angle Pluse Valve
DTG-Z-40S		  G Type Right Angle Pluse Valve
DTG-Z-50S		 G Type Right Angle Pluse Valve
DTG-Z-62S		  G Type Right Angle Pluse Valve
DTG-Z-76S



Product Parameters

Model DTG-Z-15 DTG-Z-20 DTG-Z-25 DTG-Z-35 DTG-Z-40S DTG-Z-50S DTG-Z-62S DTG-Z-76S
Working Pressure 0.3-0.8MPa
Envionment Temperature   -5～55℃
Relative Humidity <85%
Use Medium Dry,clean ,compressed air
Electric Pressure AC100V/AC220V/DC24V
Diaphragm Life Injection at 1 million or mare
Nominal Diameter Φ15 Φ20 Φ25 Φ35 Φ40 Φ50 Φ62 Φ76
Connection Thread   G1/2″   G3/4″   G1″   G1-1/4″   G1-1/2″  G2″ G2-1/2″  G3″

Dverall Dimension
G Type Right Angle Pluse Valve

Dimension Sheet

Specilications Symbol
A B C D E F
15 101 55.6 20 G1/2″ Φ93 125
20 101 55.6 20  G3/4″ Φ93 125
25 105 63.5 22.2 G1″ Φ82 126
35 121 64.5 30.8 G1-1/4″ Φ112 142
40 138 75.5 32.6  G1-1/2″ Φ125 175
50 205 113 40  G2″ Φ185 202
63 210 117.5 48 G2-1/2″ Φ185 225
76 230 130 63  G3″ Φ200 238
