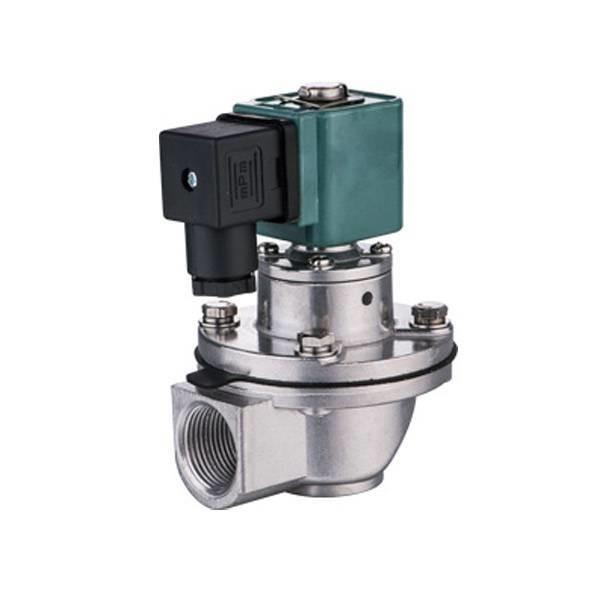

D Type Right Angle Pulse Valve
D Type Right Angle Pulse Valve
Specifications
Product Code :
DTD-Z-20
Specifications :
Array,Array,Array,Array,Array
Description

Product Detail

Product Tags

Drder Code



Specifications


DTD-Z-20


DTD-Z-25


DTD-Z-40S


DTD-Z-50S


DTD-Z-62S


Product Parameters

Model DTD-Z-20 DTD-Z-25 DTD-Z-40S DTD-Z-50S DTD-Z-62S
Working Pressure 0.3-0.8MPa
Envionment Temperature   -5～55℃
Relative Humidity <85%
Use Medium Dry,clean ,compressed air
Electric Pressure AC100V/AC220V/DC24V
Diaphragm Life Injection at 1 million or mare
Nominal Diameter Φ20 Φ25 Φ40 Φ50 Φ62
Connection Thread G3/4″ G1″   G1-1/2″    G2″     G2-1/2″



Dverall Dimension



Dimension Sheet

Specilications Symbol
A B C D E F
20 88 48 20 G3/4″ Φ80 128
25 108 60 23 G1″ Φ96 135
40 131 75 32 G1-1/2″ Φ112 184
50 180 100 43  G2″  Φ160 206
62 204 110 49   G2-1/2″ Φ188 225
