MAL aluminum mini cylinder
MAL aluminum mini cylinder
MAL aluminum mini cylinder
MAL aluminum mini cylinder
MAL aluminum mini cylinder
MAL aluminum mini cylinder
Specifications
Bore :
16,20,25,32,40
Motion Pattern :
Double Action,Single Action
Working Medium :
Air
Fixed Type :
Normal Type,LB Type,FA Type,SDB Type
Operating Pressure Range :
0.1~0.9MPa
Ensured Pressure Resistance :
1.35MPa
Operating Temperature Range :
-5~70℃
Operating Speed Range :
30~800mm/s
Buffer Type :
Standard Type,Anti-crash Buffer
Damping Type :
Adjustable Buffer
Port Size :
M5×0.8,G1/8″,G1/4″
FOB Price :
negotiation
Min.Order Quantity :
10PCS
Supply Ability :
10000 Piece/Pieces per Month
Port :
NingBo Or ShangHai
Payment Terms :
T/T,L/C,PAYPAL
Description

Product Detail

Product Tags

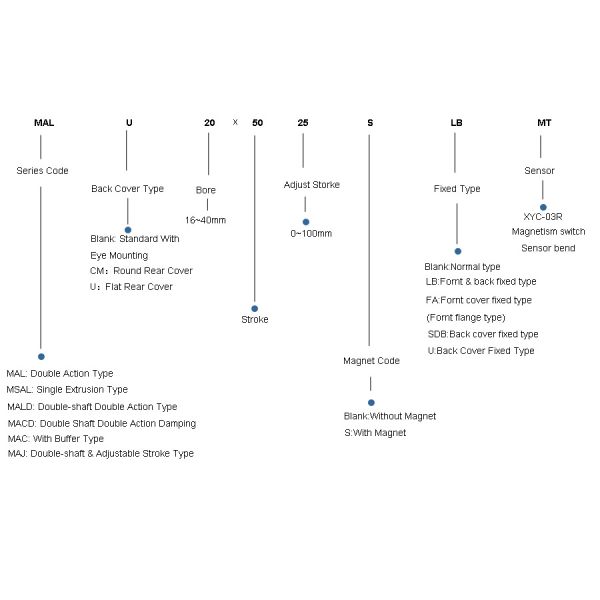

Ordering Code
MAL aluminum mini cylinder
Specification

Bore (mm) 16 20 25  32  40
Motion Pattern Double Action or Single Action
Working Medium Air
Fixed Type Normal Type /LB Type  /FA Type  /SDB Type
Operating Pressure Range   0.1~0.9MPa
Ensured Pressure Resistance   1.35MPa
Operating Temperature Range   -5~70℃
Operating Speed Range   30~800mm/s
Buffer Type Standard Type  Anti-crash Buffer
Damping Type -   Adjustable Buffer
Port Size M5×0.8  G1/8″ G1/4″


Internal Structure

NO. Designation NO. Designation
1 Piston Rod Nut 9 Anti-crash Buffer
2 Piston Rod 10 Pistion Rod O-ring
3 Front Cover Seal Ring 11 Pistion O-ring
4 Bearing 12 Pistion
5 Front Cover Nut 13 Wear Ring
6 Front Cover 14 Seal Buffer
7 Pipe Wall O-ring 15 Hex Socket Screw
8 Aliminum Tube 16 Back Over

Stroke

Bore(mm) Standard Stroke Max.Stroke Permissible Stroke
16 25 50 75 80 100 125 160 175 200 300 500
20 25 50 75 80 100 125 160 175 200 250 300 500 650
25 25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 500 650
32 25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 500 650
40 25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 500 650

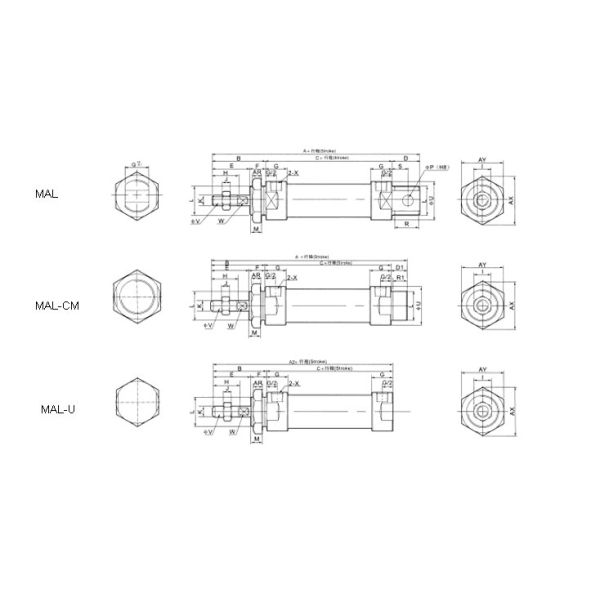

Overall Dimension
MAL aluminum mini cylinder
Dimension Sheet

 Bore A A1 A2 B C D D1 E F G H I J K
16 114 114 98 38 60 16 16 22 16 10 16 10 5 M6×1
20 131 122 110 40 70 21 12 28 12 16 20 12 6 M8×1.25
25 135 128 114 44 70 21 14 30 14 16 22 17 6 M10×1.25
32 141 128 114 44 70 27 14 30 14 16 22 17 6 M10×1.25
40 165 152 138 45 92 27 14 32 14 22 24 17 7 M12×1.25



Bore L M P Q R R1 S U V W X AR AX AY
16 M16×1.5 14 6 12 14 14 9 21 6 5 M5 6 25 22
20 M22×1.5 10 8 16 19 10 12 29 8 6 G1/8″ 7 33 29
25 M22×1.5 12 8 16 19 12 12 34 10 8 G1/8″ 7 33 29
32 M24×2.0 12 10 16 25 12 15 39.5 12 10 G1/8″ 8 37 32
40 M30×2.0 12 12 20 25 12 15 49.5 16 14 G1/4″ 9 37 41

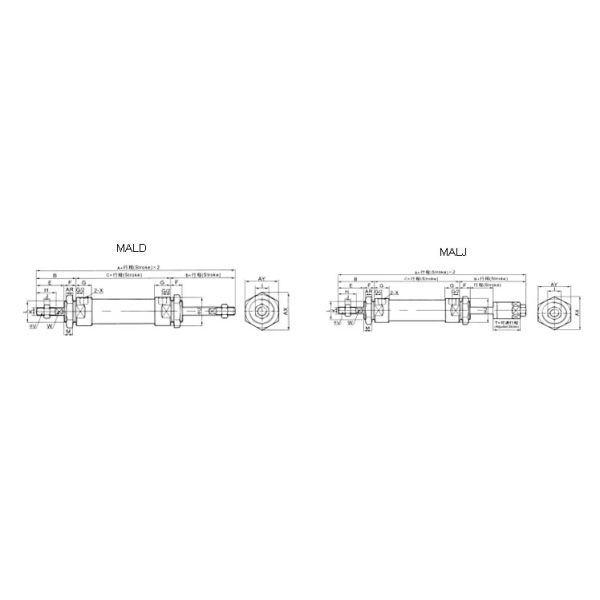

Overall Dimension
MAL aluminum mini cylinder
Dimension Sheet

Bore A A1 A2 B C
0~50 51~100 0~50 51~100 0~50 51~100
20 131 156 122 147 110 135 40 70 95
25 135 160 160 153 114 139 44 70 95
32 141 166 166 153 114 139 44 70 95
10 165 190 190 177 138 163 46 92 117



Bore D D1 E F G H I J K  L M P Q R R1 S  U V W X AR AX AY
20 21 12 28 12 16 20 12 6 M8×1.25 M22×1.5 10 8 16  19 10  12 29  8 6 G1/8″ 7  33 29
25 21 14 30 14 16 22 17 6 M10×1.25 M22×1.5 12 8 16  19 12  12 34  10 8 G1/8″ 7  33 29
32 27 14 30 14 16 22 17 6 M10×1.25 M24×2.0 12 10 16 25 12 15 39.5 12 10 G1/8″ 8 37 32
40 27 14 32 14 22 24 17 7 M12×1.25 M30×2.0 12 12 20 25 12 15 49.5 16 14 G1/4″ 9 47 41



Overall Dimension
MAL aluminum mini cylinder

Bore A A1 B C E F G H I J K L M U V W X AR AX AY T
20 150 147 40 70 28 12 16 20 12 6 M8×1.25 M22×1.5 10 29 8 6 G1/8″ 7 33 29 19
25 158 155 44 70 30 14 16 22 17 6 M10×1.25 M22×1.5 12 34 10 8 G1/8″ 7 33 29 21
32 158 155 44 70 30 14 16 22 17 6 M10×1.25 M24×1.5 12 39.5 12 10 G1/8″ 8 37 32 21
40 184 180 46 92 32 14 22 24 17 7 M12×1.25 M30×2.0 12 49.5 16 14 G1/4″ 9 47 41 21
