Aluminum SC / SU Pneumatic Air Cylinder Kits Bl...
Aluminum SC / SU Pneumatic Air Cylinder Kits Bl...
Specifications
Name :
SC Cylinder Kits
Working Medium :
Air
Material :
Aluminum
Colour :
Black
Buffer Type :
Gasket Buffer/Adjustable Buffer
Port Size :
M5X0.8/G1/8"
FOB Price :
negotiation
Min.Order Quantity :
10PCS
Supply Ability :
10000 Piece/Pieces per Month
Port :
NingBo Or ShangHai
Payment Terms :
T/T,L/C,PAYPAL
Description

Product Detail

Product Tags

Name: SC Cylinder Kits Working Medium: Air
Material: Aluminum Colour: Black
Buffer Type: Gasket Buffer/Adjustable Buffer Port Size: M5X0.8/G1/8″

SC / SU Pneumatic Cylinders Kits black cover with bore from 32mm to 320mm

Specification

Aluminum SC / SU Pneumatic Air Cylinder Kits Bl...

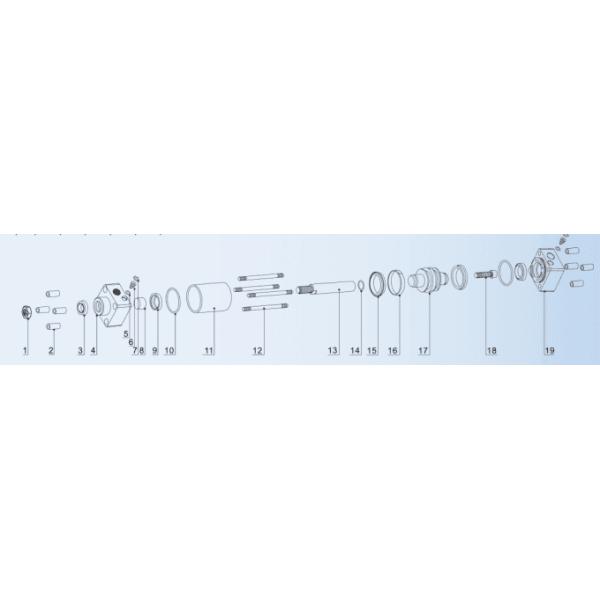

NO. Designation Material NO. Designation Material
1 Nut Carbon Steel 11 Barrel(Without) Hard anodized aluminum

2 Tie-rod Nut Carbon Steel 12 Tie-rod(Without)

3 Front Cover Seal NBR 13 Piston Rod(Without) S45C Hard chrome carbon steel

4 Front Cover Aluminum Alloy 14 Rod O-ring NBR

5 O-ring NBR 15 Piston Seal NBR

6 Adjustable Screw   16 Wear Ring PA66

7 Block Slip   17 Piston Aluminum Alloy

8 Self Lubricating bearing PTFE+Brass 18 Hex Socket Screw Carbon Steel

9 Cushion Seal NBR 19 Back Over Aluminum Alloy

10 Cover O-ring NBR
