SDA / CQ2 Pneumatic Cylinder Kit Steel Material...
SDA / CQ2 Pneumatic Cylinder Kit Steel Material...
Specifications
Name :
SDA Cylinder Kit
Material :
Aluminum
MOQ :
10pcs
Speed Range :
50~800mm/s
Type :
Without Caps
Model :
12mm To 63mm
FOB Price :
negotiation
Min.Order Quantity :
10PCS
Supply Ability :
10000 Piece/Pieces per Month
Port :
NingBo Or ShangHai
Payment Terms :
T/T,L/C,PAYPAL
Description

Product Detail

Product Tags

Name: SDA Cylinder Kit Material: Aluminum
MOQ: 10pcs Speed Range: 50~800mm/s
Type: Without Caps Model: 12mm To 63mm

SDA / CQ2 Compact Air Cylinders Kits without barrel and piston rod

Specification

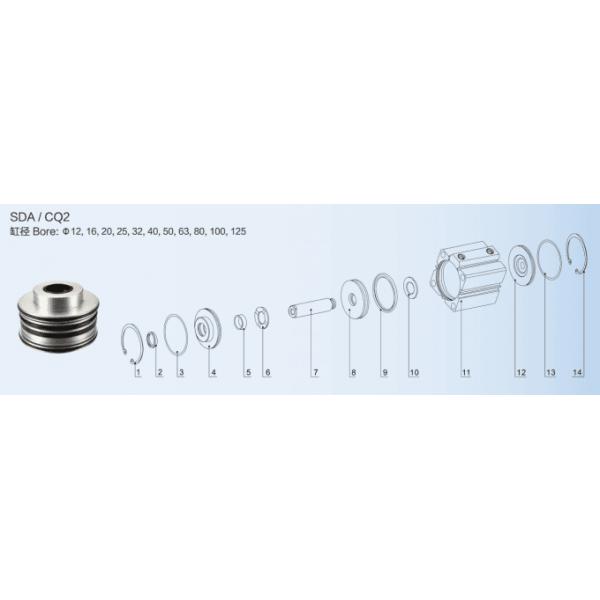

NO. Designation Material NO. Designation Material

1 C Type Buckle Steel 8 Piston Aluminum Alloy

2 Front Cover Seal NBR 9 Piston Seal NBR

3 Cover O-ring NBR 10 Anti-bump Cushion NBR

4 Front Cover Aluminum Alloy 11 Barrel(Without) Hard anodized aluminum

5 Self Lubricating bearing PTFE+Brass 12 Back Over Aluminum Alloy

6 Anti-bump Cushion NBR 13 Cover O-ring NBR

7 Piston Rod(Without) S45C Hard chrome carbon steel 14 C Type Buckle Steel
